Overview
This Trane CenTraVac CVHF1470 Water-Cooled Centrifugal Chiller is designed for critical cooling applications in medical facilities and large-scale commercial buildings requiring reliable, high-capacity chilled water production. This unit delivers exceptional cooling performance with proven Trane centrifugal compressor technology and advanced Tracer UC800 control systems. Manufactured in 2011, this chiller provides efficient operation for facilities requiring substantial cooling capacity with environmentally responsible HCFC-123 refrigerant and state-of-the-art digital controls.
Design and Performance
Cooling Capacity: 1450 Tons (Nominal)
Model: CVHF1470
Model Number: CVHF147GA4A0PC1321F2BBFYBA0000006000000CL000005A100A
Serial Number: L11L04136
Sales Order: L3M669A
Voltage: 480 Volts
Electrical Characteristics: 3 Phase, 60Hz
Full Load Amps (RLA): 1196 Amps
Refrigerant Type: HCFC-123 (Environmentally Responsible)
Control System: Tracer UC800 Digital Interface
Compressor Type: High-Efficiency Centrifugal
Minimum Circuit Ampacity: 1339 Amps
Maximum Overcurrent Protective Device: 2000 Amps
Running Hours: 37,467 Hours
Compressor Starts: 383
Operating Parameters
Evaporator Leaving Water Temperature: 65.7-65.8°F
Evaporator Entering Water Temperature: 151.1°F
Condenser Leaving Water Temperature: 81.4°F
Condenser Entering Water Temperature: 81.5°F
Chiller Control Signal: 0.0% (Currently Stopped)
Average Motor Current (% RLA): 0.0%
Oil Differential Pressure: 0.00 PSID
Oil Pump Discharge Pressure: -3.9 PSIG
Compressor Running Time: 37,467:19 Hr:Min
Current Status: Stopped (Available for Immediate Startup)
Pump Mode: Adaptive
Key Specifications
Condition: Used - Operational (Medical Facility Grade)
Manufacturer: Trane (Industry Leader in HVAC)
Chiller Type: Water-Cooled Centrifugal
Nominal Capacity: 1450 Tons

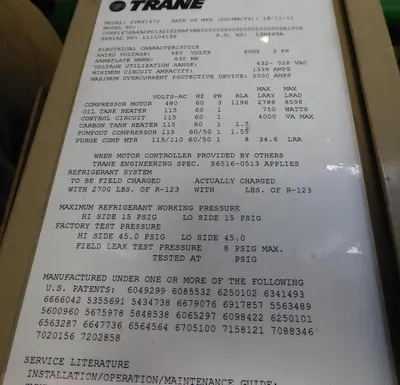

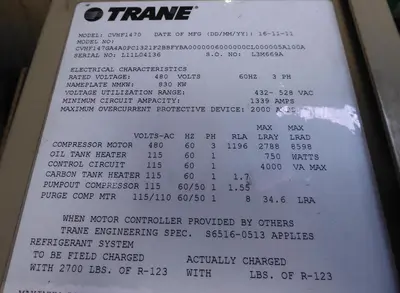

Date of Manufacture: 16-11-11 (November 16, 2011)
Nameplate kW: 830 kW
Control Circuit: 115V, 60Hz, 1 Phase
Oil Tank Heater: 115V, 750 Watts
Carbon Tank Heater: 115V, 60Hz
Purge Compressor: 115/110V, 60/50Hz
Maximum LRAY: 2788 Amps
Maximum LRAD: 8598 Amps
Electrical Specifications
Main Power Requirements: 480V, 3 Phase, 60Hz
Full Load Amps (RLA): 1196A
Voltage Utilization Range: 432-528 VAC
Control Power: 115V Single Phase, 4000 VA Max
Motor Type: High-Efficiency Centrifugal Compressor Motor
Starting Method: Soft Start/VFD Compatible
Ideal Applications
Medical Facilities and Hospitals (Current Application)
Large Healthcare Complexes
Critical Care Centers
Data Centers Requiring Redundant Cooling
Pharmaceutical Manufacturing
Research Laboratories
Large Commercial Office Complexes
University Medical Centers
District Cooling Plants
Industrial Process Cooling
Benefits
Massive 1450-ton capacity - one of the largest in the CenTraVac line
Medical facility grade - maintained to highest standards
Advanced Tracer UC800 control system with intuitive interface
Low operating hours relative to capacity (37,467 hours)
Minimal starts (383) indicating stable operation
Environmentally responsible HCFC-123 refrigerant
Variable capacity control for efficient part-load operation
Factory-tested and certified performance
Proven reliability in critical medical applications
Adaptive pump control for optimized system efficiency
Additional Information
Condition: Used - Fully Operational (Medical Facility Maintained)

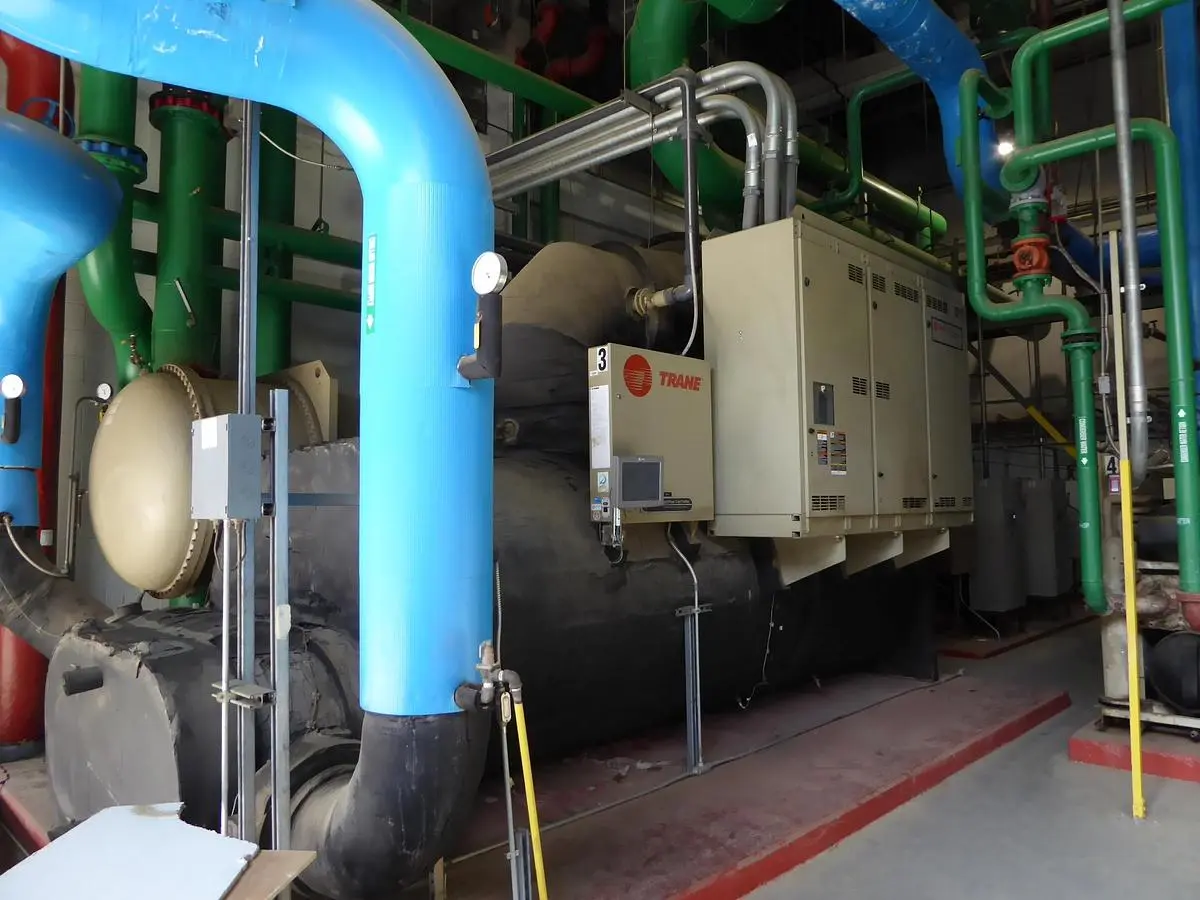

Current Location: Atlanta Medical Facility
Operating Hours: 37,467 Hours (Professionally Maintained)
Designation: Atlanta Medical Chiller #3
Refrigerant Charge: HCFC-123 (2700 lbs design capacity)
Control Interface: Tracer UC800 Touch Screen Display
Maintenance Status: Medical facility maintenance standards
Safety Features: Multiple pressure and temperature safeties
Field Leak Test Pressure: 8 PSIG Maximum

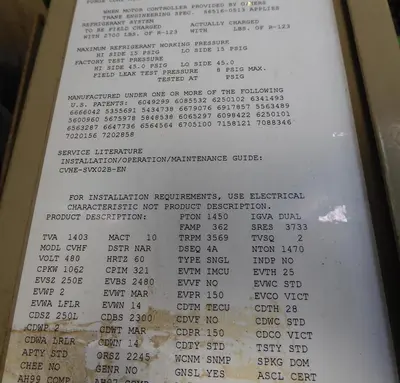

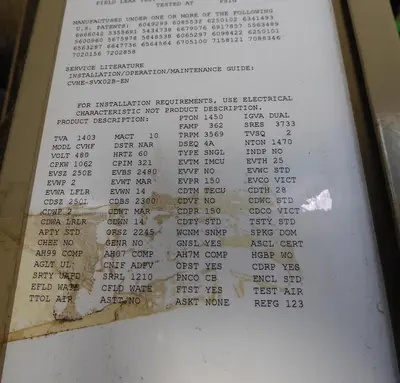

Service Documentation: CVHE-SVX02B-EN Manual
