NEW 2020 ENGINEERED AIR LM46C/C

Overview

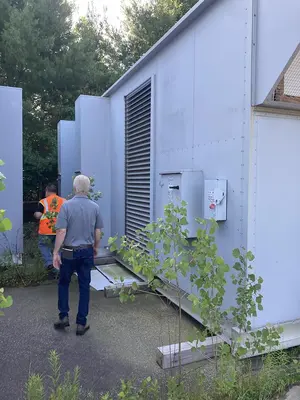

These brand new, never installed Engineered Air LM46C/C Air Handling Units are designed for large-scale commercial and industrial HVAC applications requiring substantial air movement capacity. This lot of seven (7) identical units delivers exceptional performance with proven Airtex Manufacturing design and construction. These containerized outdoor units provide reliable climate control for facilities requiring high-capacity air handling with both heating and cooling capabilities, featuring a maximum airflow of 40,000 CFM.

Design and Performance

Airflow Capacity: 40,000 CFM (Supply & Return)

Model: LM46C/C

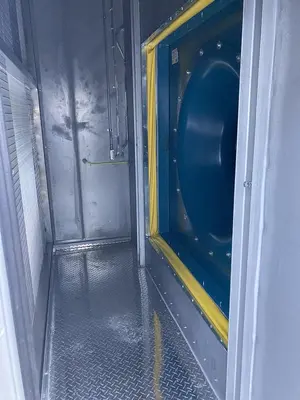

Supply Fan Size: 40" diameter

Return Fan Size: 44" diameter

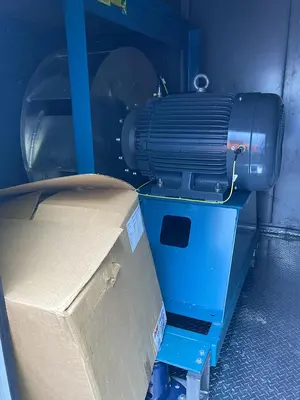

Supply Motor: 60 HP, 94.5% efficiency

Return Motor: 25 HP, 93% efficiency

External Static Pressure: 3.0" w.c. (Supply), 1.0" w.c. (Return)

Temperature Rise: 43°F (Hot Water Heat)

Electrical: 460V, 3-Phase, 60 Hz

Minimum Operating Temperature: -20°F

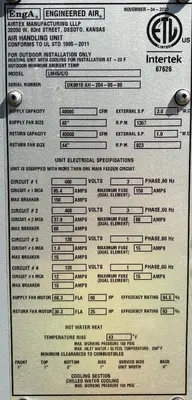

Serial Number: DK9018 AH-204-06-00

Key Specifications

Condition: Brand New - Never Installed

Manufacturer: EngA / Airtex Manufacturing LLP (Desoto, Kansas, USA)

Model: LM46C/C

Quantity Available: Seven (7) Units

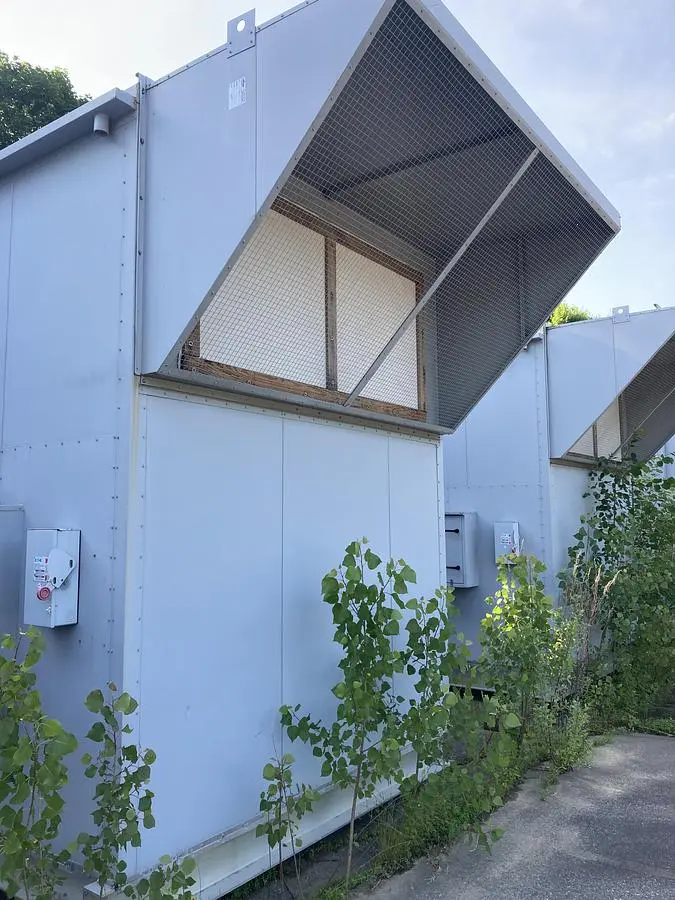

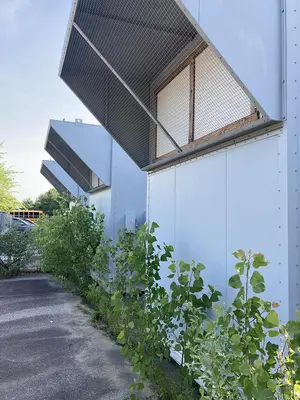

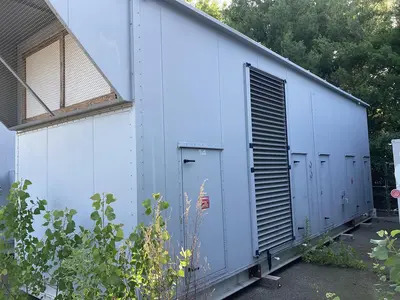

Unit Type: Containerized Outdoor Air Handling Unit

Certification: UL/ETL Listed (Intertek 67626)

Compliance: UL STD 1995-2011

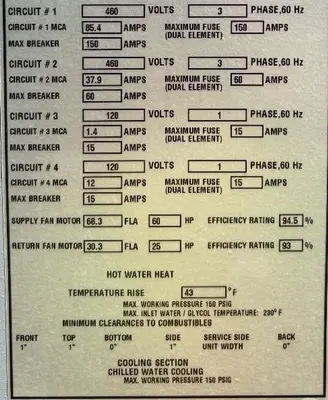

Electrical Requirements

Circuit #1: 85.4A MCA, 150A Max Breaker, 460V/3Φ/60Hz

Circuit #2: 37.9A MCA, 60A Max Breaker, 460V/3Φ/60Hz

Circuit #3: 1.4A MCA, 15A Max Breaker, 120V/1Φ/60Hz

Circuit #4: 12A MCA, 15A Max Breaker, 120V/1Φ/60Hz

Maximum Fuse Ratings: 160A (Dual Element)

Ideal Applications

Large Commercial Office Buildings
Industrial Manufacturing Facilities
Distribution Centers and Warehouses
Airport Terminals
Convention Centers
Large Retail Spaces
Hospital and Healthcare Facilities
Educational Campus Buildings
Data Centers (with appropriate filtration)
Multi-Story Commercial Complexes

Benefits

Ultra-high-capacity 40,000 CFM rating for large-scale applications
High-efficiency motors (94.5% and 93%) for reduced energy costs
Dual fan design for optimal air distribution and pressure control
Hot water heating capability with 43°F temperature rise
Chilled water cooling section for year-round climate control
Containerized outdoor design eliminates need for mechanical room space
Weather-resistant construction rated to -20°F minimum ambient
Multiple electrical circuits for flexible control options
Brand new units with full manufacturer specifications
Bulk quantity (7 units) available for large projects or multiple buildings

Additional Information

Condition: Brand New - Never Installed

Manufacturer: EngA / Airtex Manufacturing LLP

Model: LM46C/C

Manufacturing Location: Desoto, Kansas, USA

Year of Manufacture: November 2020

Total Motor Horsepower: 85 HP per unit (60 HP supply + 25 HP return)

Total Available Capacity: 280,000 CFM (7 units × 40,000 CFM)

Cooling Type: Chilled Water Cooling Section

Heating Type: Hot Water Heat

Installation: Outdoor rated - no indoor mechanical room required

Technical Notes

Supply and return fans sized for optimal performance (40" and 44" respectively)
Multiple electrical circuits allow for sophisticated control strategies
High static pressure capability (3.0" w.c.) suitable for extensive ductwork
Clearance requirements marked on all sides for proper installation
ETL certified to ensure safety and code compliance
