USED 1976 CLEAVER BROOKS CB700-200-150

Used Cleaver Brooks Steam Boiler 5,175 steam lbs/hr, 6,227,000 BTU/hr, Model CB700-200-150, 150 HP, MAWP 150 PSI, Fuel Natural Gas, Serial No L-62591, Shipping Weight 46,000 lbs, Built 1976

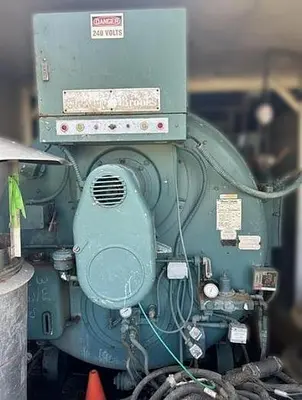

Cleaver Brooks 150 HP 150 PSI High Pressure Steam Boiler

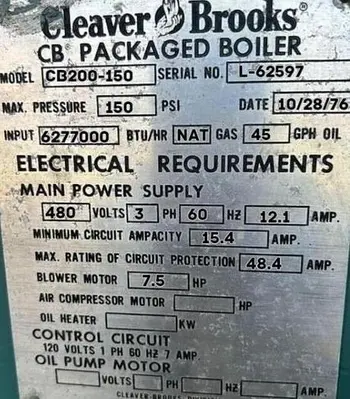

Equipment Description

Manufacturer: Cleaver Brooks
Model: CB200-150
Boiler Horsepower: 150 HP
Boiler Type: Firetube Boiler
Fuel Type: Natural gas, fuel oil, or a combination of both
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 6,277,000 BTU/hr
Steam Capacity: 5,175 steam Lbs/hr
Year Built: 1976
Serial No: L-62597
GPH Oil: 45

Electrical Requirements

Main Power Supply
Voltage: 480V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 12.1 AMP
Minimum Circuit Ampacity: 15.4 AMP
Maximum Rating of Circuit Protection: 48.4 AMP

Blower Motor
Horsepower: 7.5 HP

Air Compressor Motor
Horsepower: N/A

Oil Heater: N/A

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: N/A
Phase: N/A
Hertz: N/A
Ampacity: N/A

Overall Dimensions
Length: 16.58 ft
Width: 7.08 ft
Height: 6.41 ft

Boiler Weight: 13,800 lbs
