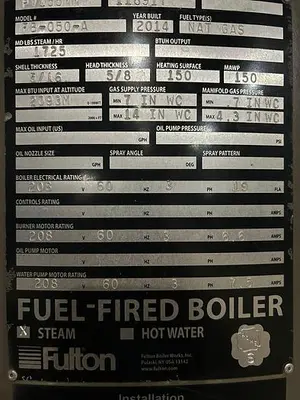

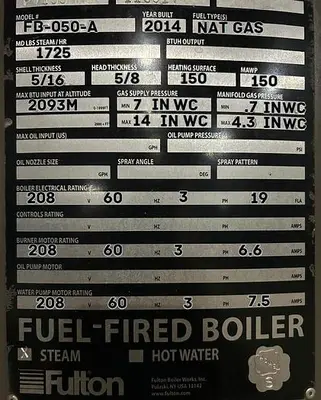

Used Fulton Steam Boiler, 1,725 steam lbs/hr, 1,673,750 BTU/hr, Model FB-050-A, 50 HP, MAWP 150 PSI, Boiler Weight Approx.6 ,000 lbs, Built 2014
Fulton Boiler 50 HP 150 PSI High Pressure Steam Boiler
Equipment Description
Manufacturer: Fulton Boiler
Model: FB-050-A
Boiler Horsepower: 50 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 1,673,750 BTU/Hr.
Steam Capacity: 1,725 lbs/hr.
Year Built: 2014
Shell Thickness: 5/16
Head Thickness: 5/8
Heating Surface: 150 SQ. FT.
Max BTU Input at Altitude: 2,093,000
Gas Supply Pressure
Minimum: 7 IN WC
Maximum: 14 IN WC
Manifold Gas Pressure
Minimum: .7 IN WC
Maximum: 4.3 IN WC
Boiler Electrical Rating
Volts: 208V
Hertz: 60 HZ
Phase: 3 PH
Full Load Amperes: 19 FLA
Burner Motor Rating
Volts: 208V
Hertz: 60 HZ
Phase 3 PH
Ampacity: 6.6 AMPS
Water Pump Motor
Volts: 208V
Hertz: 60Hz
Phase: 3
Ampacity: 7.5 AMP
