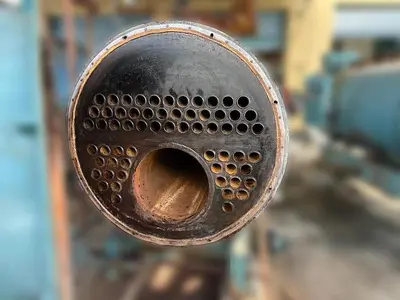

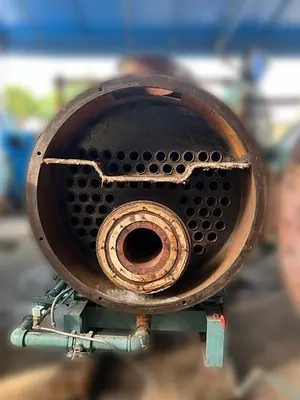

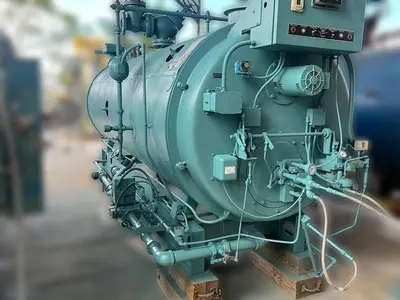

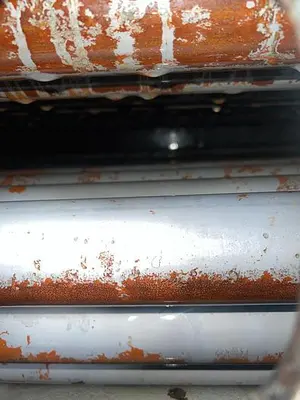

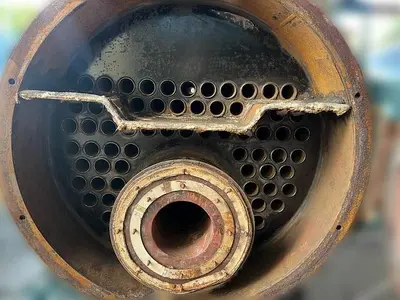

USED 2008 CLEAVER BROOKS CB200-100-150

Used Cleaver Brooks Steam Boiler, 3,450 steam lbs/hr, 4,184,000 BTU/hr, Model CB-200-100-150, 000 HP, MAWP 150 PSI, Fuel Natural Gas Fired, Serial No 1179-1, Boiler Weight 9,500 lbs, Built 2008

Cleaver Brooks 100 HP 150 PSI High Pressure Steam Boiler

Equipment Description

Manufacturer: Cleaver Brooks
Model: CB-200-100-150
Boiler Horsepower: 100 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 4,184,000 BTU/hr
Steam Capacity: 3,450 steam Lbs/hr
Year Built: 2008
Serial No: 1179-1
GPH Oil: 30

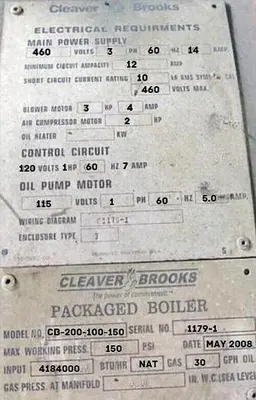

Electrical Requirements

Main Power Supply
Voltage: 460V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 14 AMP
Minimum Circuit Ampacity: 12 AMP
Maximum Rating of Circuit Protection: 460 AMP

Blower Motor
Horsepower: 3 HP 4 AMP

Air Compressor Motor
Horsepower: 2 HP

Oil Heater: N/A

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: 115V
Phase: 1
Hertz: 60
Ampacity: 5.0 AMP

Overall Dimensions
Length: 15.58 ft
Width: 6.08 ft
Height: 6.5 ft

Boiler Weight: 9,500 lbs
