USED 1999 CLEAVER BROOKS CBI 700-250-125

Used Cleaver Brooks Hot Water Boiler, 10,205,800 BTU/hr, Model CBI 700-250-125, 250 HP, MAWP 125 PSI, Fuel Natural Gas Fired, Serial No 0L099042, Boiler Weight Approx. 30,000 lbs, Built 1999

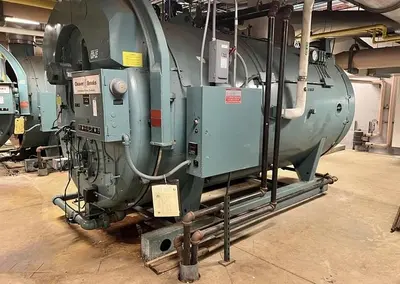

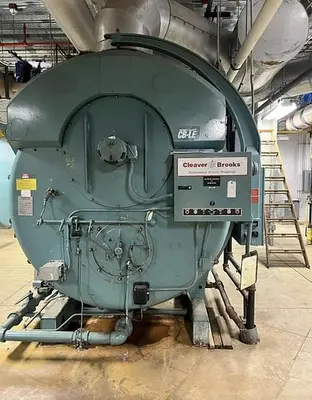

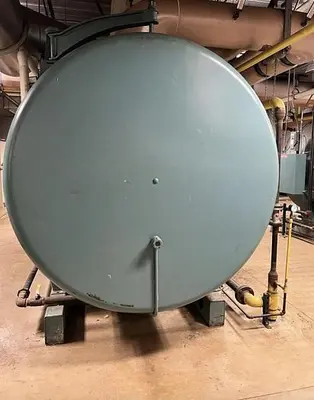

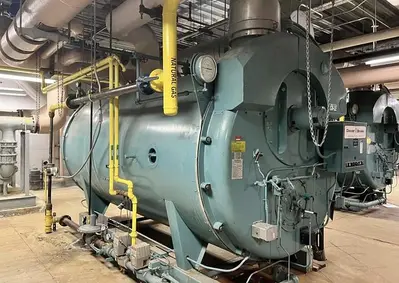

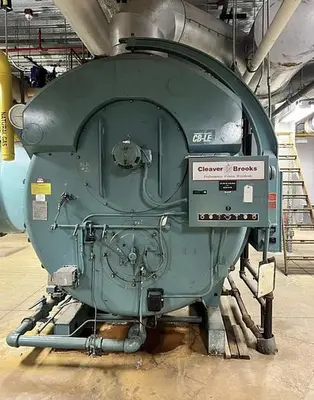

Cleaver Brooks 250 HP 125 PSI High Pressure Hot Water Boiler

Equipment Description

Manufacturer: Cleaver Brooks
Model: CBI 700-250-125
Boiler Horsepower: 250 HP
Boiler Type: Hot Water Boiler
Fuel Type: Natural Gas/Oil
Design Pressure or Maximum Allowable Working Pressure: 125 PSI
Heating Capacity: 10,205,800 BTU/hr
Steam Capacity: N/A
Year Built: 1999
Serial No: 0L099042
GPH Oil: N/A

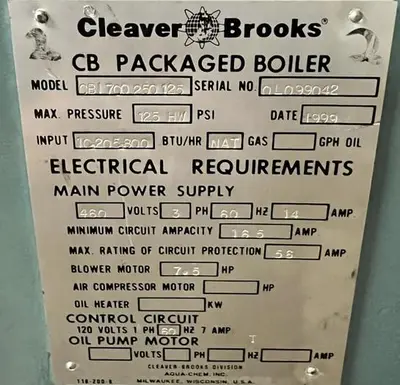

Electrical Requirements

Main Power Supply
Voltage: 460V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 14 AMP
Minimum Circuit Ampacity: 16.5 AMP
Maximum Rating of Circuit Protection: 56 AMP

Blower Motor
Horsepower: 7.5 HP

Air Compressor Motor
Horsepower: N/A

Oil Heater: N/A

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: N/A
Phase: N/A
Hertz: N/A
Ampacity: N/A

Overall Dimensions
Length: 16.41 ft
Width: 8.58 ft
Height: 8.83 ft

Boiler Weight: 23,400 lbs
