Used Cleaver Brooks Hot Water Boiler, 2,510,000 BTU/hr, Model CB 200-60, 60 HP, MAWP 125 PSI, Fuel Natural Gas Fired, Serial No L-100200, Boiler Weight Approx. 12,000 lbs, Built 2000
Cleaver Brooks 60 HP 125 PSI High Pressure Hot Water Boiler
Equipment Description
Manufacturer: Cleaver Brooks
Model: CB 200-60
Boiler Horsepower: 60 HP
Boiler Type: Hot Water Boiler
Fuel Type: Natural Gas/Oil
Design Pressure or Maximum Allowable Working Pressure: 125 PSI
Heating Capacity: 2,510,000 BTU/hr
Steam Capacity: N/A
Year Built: 2002
Serial No: L-100200
GPH Oil: 16

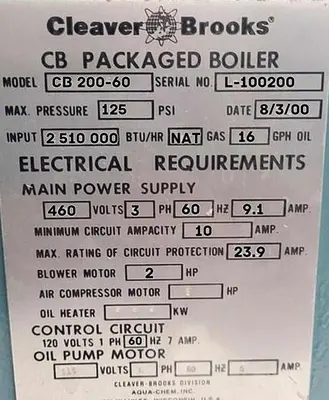

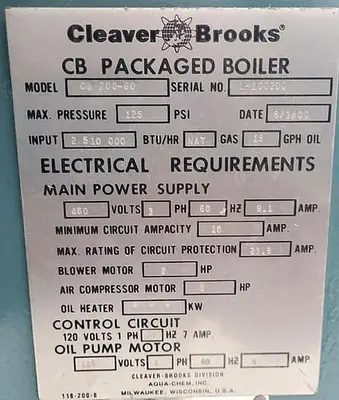

Electrical Requirements
Main Power Supply
Voltage: 460V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 9.1 AMP
Minimum Circuit Ampacity: 10 AMP
Maximum Rating of Circuit Protection: 23.9 AMP
Blower Motor
Horsepower: 3 HP
Air Compressor Motor
Horsepower: N/A
Oil Heater: N/A
Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP
Oil Pump Motor
Volts: 115V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 5 AMP
Overall Dimensions
Length: 10.75 ft
Width: 6.08 ft
Height: 6.5 ft
