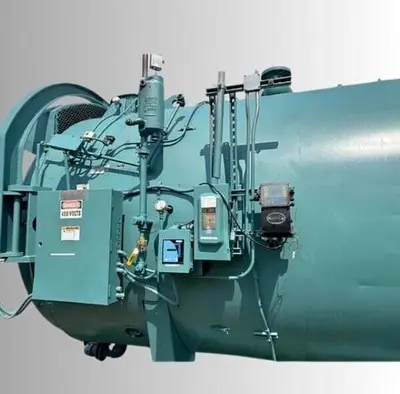

USED 2001 CLEAVER BROOKS CBI 700-500-200

Cleaver Brooks 500 HP 200 PSI High-Pressure Steam Boiler

Overview

Used Cleaver Brooks CBI-700-500-200 steam boiler (2001) for sale. This boiler is designed to provide efficient and reliable steam generation for various industrial applications.

Design and Performance
1. 500 HP output
2. 200 PSI design pressure
3. 17,250 lbs/hr steam capacity
4. 20,411,000 BTU/hr heating capacity
5. Natural Gas fuel
6. Serial Number: 0L100851

Electrical Requirements
1. Main Power: 460V, 3-phase, 60Hz (28A)
2. Control Circuit: 120V, 1-phase, 60Hz (7A)
3. Blower Motor: 20 HP

Mechanical Features
1. Boiler weight: 44,000 lbs
2. Dimensions: 20.33 ft (L) x 10.25 ft (W) x 10.5 ft (H)

Safety Features
1. Maximum Rating of Circuit Protection: 112A
2. Minimum Circuit Ampacity: 35A

Ideal Applications
1. Industrial processing (food, textile, pharmaceutical)
2. Power generation
3. Commercial heating (hospitals, hotels, office buildings)
4. Chemical processing
5. Paper mills

Benefits
1. High-pressure steam generation
2. Efficient fuel consumption
3. Reliable operation
4. Easy maintenance
5. Cost-effective solution

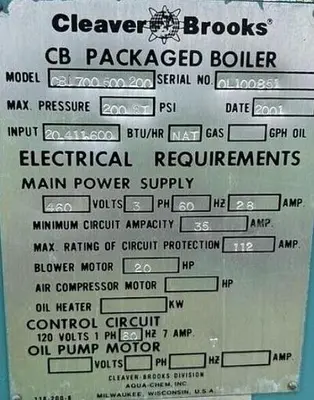

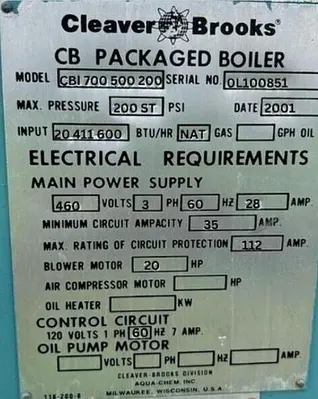

Additional Information
1. Manufacturer: Cleaver Brooks
2. Model: CBI-700-500-200
3. Year Built: 2001
4. Boiler Type: Steam Boiler
