USED 1988 CLEAVER BROOKS CB200-500

Cleaver Brooks 500 HP 150 PSI High-Pressure Steam Boiler

Overview

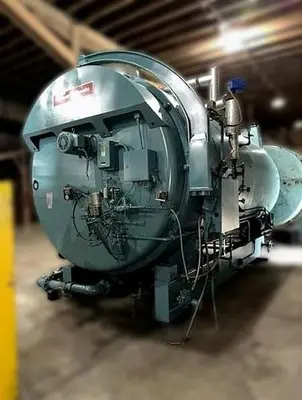

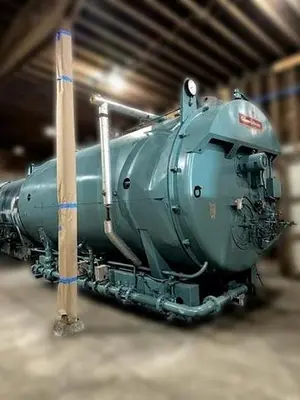

Used Cleaver Brooks CB200-500 steam boiler (1988) for sale. This boiler is designed to provide efficient and reliable steam generation for various industrial applications.

Design and Performance
1. 500 HP output
2. 150 PSI design pressure
3. 17,250 lbs/hr steam capacity
4. 20,922,000 BTU/hr heating capacity
5. Natural Gas fuel
6. Serial Number: L-84718

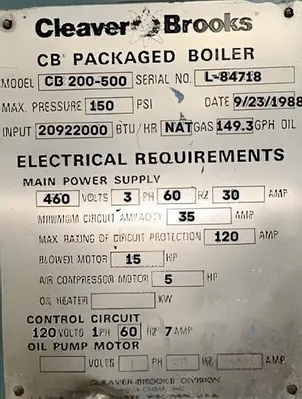

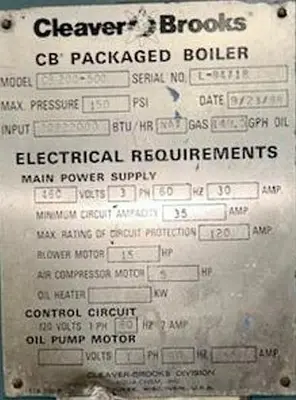

Electrical Requirements
1. Main Power: 460V, 3-phase, 60Hz (30A)
2 Control Circuit: 120V, 1-phase, 60Hz (7A)
3. Blower Motor: 15 HP
4. Air Compressor Motor: 5 HP
5. Oil Pump Motor: 460V, 1-phase, 60Hz (10A)

Mechanical Features
1. Boiler weight: 41,400 lbs
2. Dimensions: 20.33 ft (L) x 10.25 ft (W) x 10.5 ft (H)

Safety Features
1. Maximum Rating of Circuit Protection: 120A
2. Minimum Circuit Ampacity: 35A

Ideal Applications
1. Industrial processing (food, textile, pharmaceutical)
2. Power generation
3. Commercial heating (hospitals, hotels, office buildings)
4. Chemical processing
5. Paper mills

Benefits
1. High-pressure steam generation
2. Efficient fuel consumption
3. Reliable operation
4. Easy maintenance
5. Cost-effective solution

Additional Information
1. Manufacturer: Cleaver Brooks
2. Model: CB200-500
3. Year Built: 1988
4. Boiler Type: Steam Boiler
