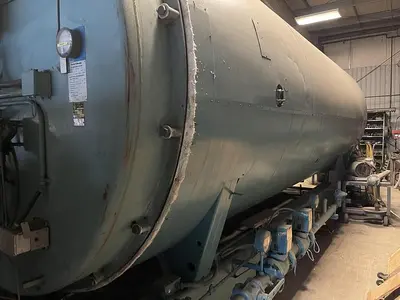

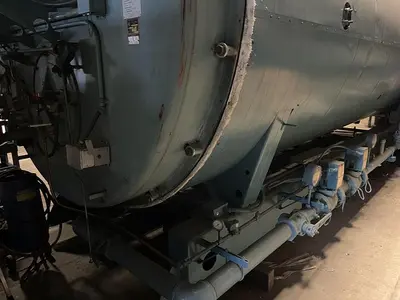

USED 1993 CLEAVER BROOKS CB 400-800

Used Cleaver Brooks Steam Boiler,Approx. 27,600 steam lbs/hr, 33,500,000 BTU/hr, Model CB 400-800, 800 HP, MAWP 250 PSI, Fuel Natural Gas, Serial No S-87359, Boiler Weight approx. 80,000 lbs, Built 1993

Cleaver Brooks 800 HP 250 PSI High Pressure Steam Boiler

Equipment Description

Manufacturer: Cleaver Brooks
Model: CB 400-800
Boiler Horsepower: 800 HP
Boiler Type: Steam Boiler
Fuel Type: Gas/Oil
Design Pressure or Maximum Allowable Working Pressure: 250 PSI
Heating Capacity: 33,500,000 BTU/hr
Steam Capacity: 27,600 steam Lbs/hr
Year Built: 1993
Serial No: S-87359
GPH Oil: 223.2

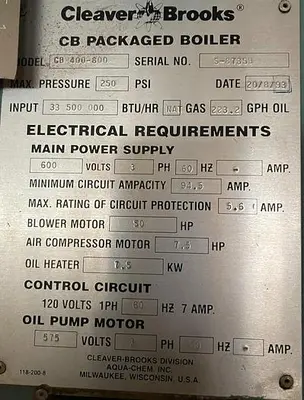

Electrical Requirements

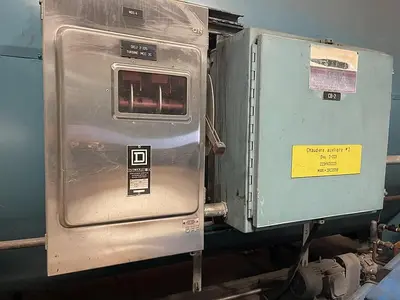

Main Power Supply
Voltage: 600V
Phase: 3 PH
Hertz: 60Hz
Ampacity: N/A
Minimum Circuit Ampacity: 94.5 AMP
Maximum Rating of Circuit Protection: 5.6 AMP

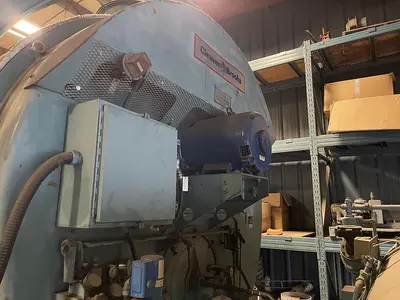

Blower Motor
Horsepower: 50 HP

Air Compressor Motor
Horsepower: 7.5 HP

Oil Heater: 7.5 KW

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

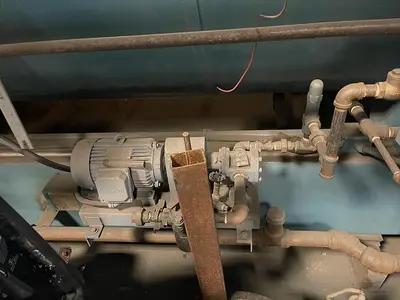

Oil Pump Motor
Volts: 575V
Phase: 1 PH
Hertz: 60Hz
Ampacity: N/A

Overall Dimensions
Length: 26.58 ft
Width: 10.25 ft
Height: 10.5 ft

Boiler Weight: 80,000 lbs
