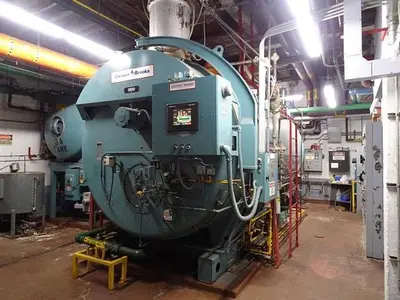

USED 1994 CLEAVER BROOKS CB200-500

Used Cleaver Brooks Steam Boiler, Approx. 17,250 steam lbs/hr. 20,920,000 BTU/hr. Model CB 200-500. 500 HP. MAWP 200 PSI. Fuel Natural Gas. Serial No L-9358. Boiler Weight Approx.44,000 lbs. Built 1994

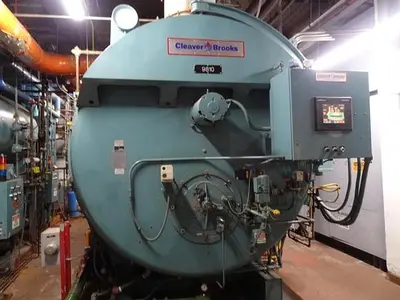

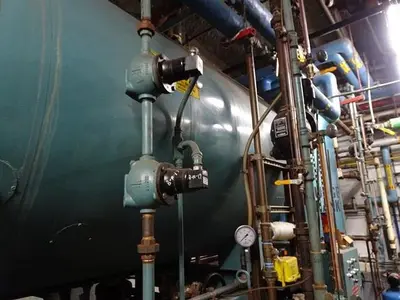

Cleaver Brooks 500 HP 200 PSI High Pressure Steam Boiler

Equipment Description

Manufacturer: Cleaver Brooks
Model: CB 200-500
Boiler Horsepower: 500 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas/Oil
Design Pressure or Maximum Allowable Working Pressure: 200 PSI
Heating Capacity: 20,920,000 BTU/hr
Steam Capacity: 17,250 steam Lbs/hr
Year Built: 1994
Serial No: L-93518
GPH Oil: 149.4

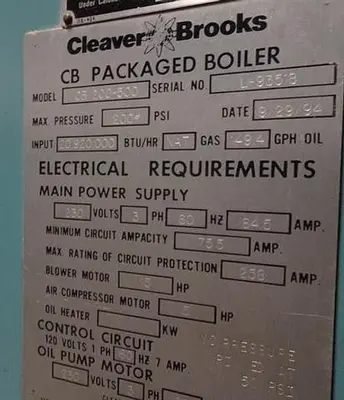

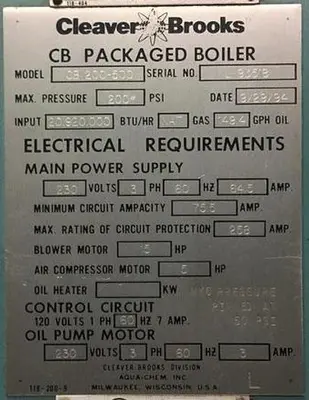

Electrical Requirements

Main Power Supply
Voltage: 230V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 64.5 AMP
Minimum Circuit Ampacity: 75.5 AMP
Maximum Rating of Circuit Protection: 258 AMP

Blower Motor
Horsepower: 15 HP

Air Compressor Motor
Horsepower: 5 HP

Oil Heater: N/A

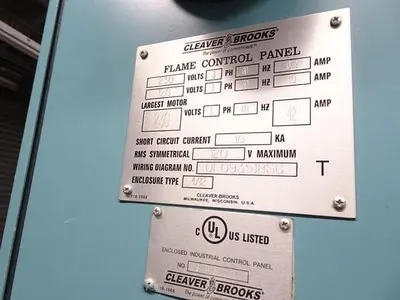

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: 230V
Phase: 1 PH
Hertz: 60Hz
Ampacity: 3 AMP

Overall Dimensions
Length: 20.33 ft
Width: 10.25 ft
Height: 10.5 ft

Boiler Weight: 44,000 lbs
