USED 1995 CLEAVER BROOKS CB 100-150-150

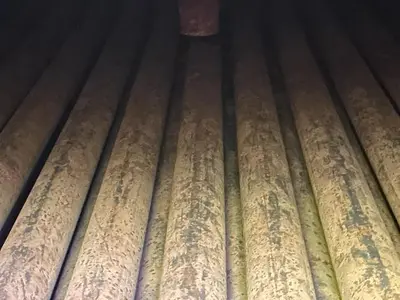

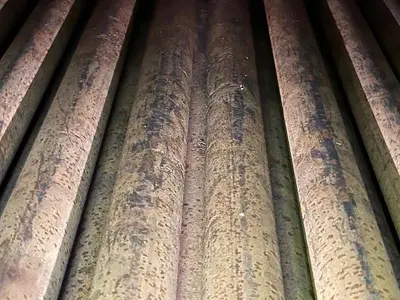

Used Cleaver Brooks Steam Boiler, 5,175 steam lbs/hr, 5,021,250 BTU/hr, Model CB 100-150-150, 150 HP, MAWP 150 PSI, Fuel Diesel fuel/Oil, Serial No 0L094364, Boiler Weight 13,800 lbs, Built 1995, Refurbished, New insulation and skin, Chemical treatment on tubes and hydro tested

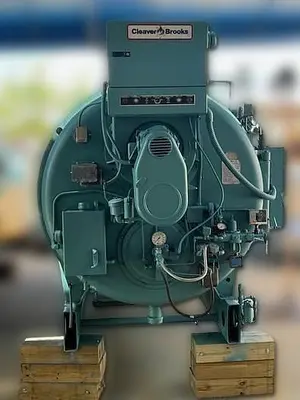

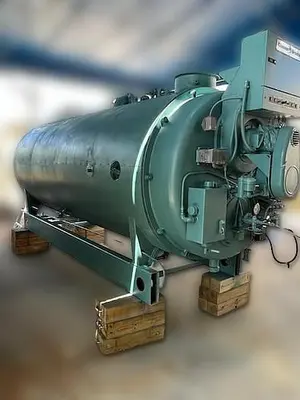

Cleaver Brooks 150 HP 150 PSI High Pressure Steam Boiler

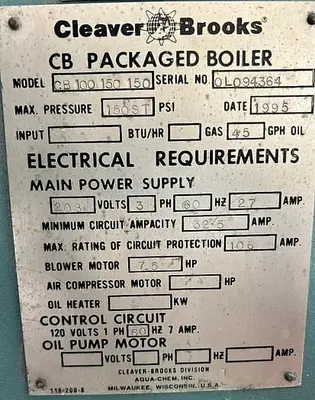

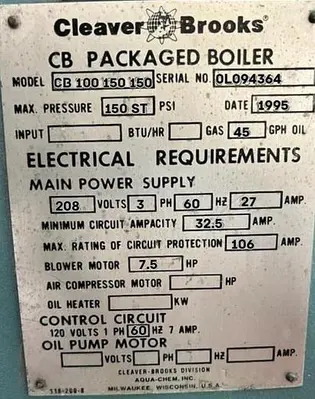

Equipment Description

Manufacturer: Cleaver Brooks
Model: CB 100-150-150
Boiler Horsepower: 150 HP
Boiler Type: Steam Boiler
Fuel Type: Gas/Oil
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 5,021,250 BTU/hr
Steam Capacity: 5,175 steam Lbs/hr
Year Built: 1995
Serial No: 0L094364
GPH Oil: 45

Electrical Requirements

Main Power Supply
Voltage: 208V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 27 AMP
Minimum Circuit Ampacity: 32.5 AMP
Maximum Rating of Circuit Protection: 106 AMP

Blower Motor
Horsepower: 7.5 HP

Air Compressor Motor
Horsepower: N/A

Oil Heater: N/A

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: N/A
Phase: N/A
Hertz: N/A
Ampacity: N/A

Overall Dimensions
Length: 16.58 ft
Width: 7.08 ft
Height: 7.33 ft

Boiler Weight: 13,800 lbs
