USED 2002 CLEAVER BROOKS CB100-125A

Used Cleaver Brooks Hot Water Boiler, 5,230,000 BTU/hr, Model CB100-125A, 100 HP, MAWP 125 PSI, Fuel Type Diesel/Oil, Serial No L-102089, Year Built 2002. Great tubes ready to go back into service! We have the control store indoors

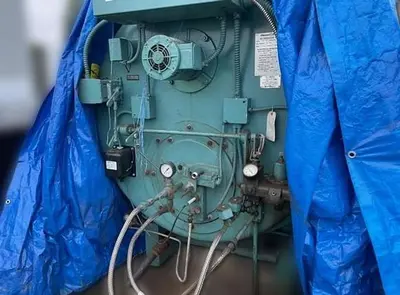

Cleaver Brooks 100 HP 125 PSI High Pressure Hot Water Boiler

Equipment Description

Manufacturer: Cleaver Brooks
Model: CB100-125A
Boiler Horsepower: 100 HP
Boiler Type: Hot Water Boiler
Fuel Type: Diesel/Oil
Design Pressure or Maximum Allowable Working Pressure: 125 PSI
Heating Capacity: 5,230,000 BTU/hr
Steam Capacity: N/A
Year Built: 2002
Serial No: L-102089
GPH Oil: 37.5

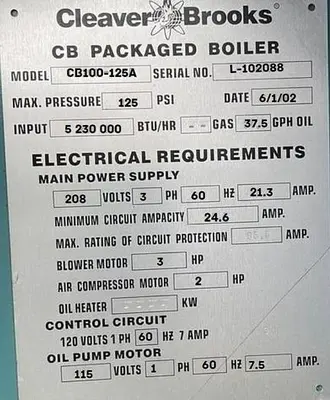

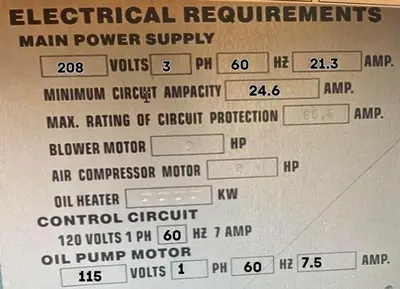

Electrical Requirements

Main Power Supply
Voltage: 208V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 21.3 AMP
Minimum Circuit Ampacity: 24.5 AMP
Maximum Rating of Circuit Protection: 33.3 AMP

Blower Motor
Horsepower: 3 HP

Air Compressor Motor
Horsepower: 2 HP

Oil Heater: N/A

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: 115V
Phase: 1 PH
Hertz: 60Hz
Ampacity: 7.5 AMP

Overall Dimensions
Length: 15.58 ft
Width: 6.08 ft
Height: 6.5 ft

Boiler Weight: 9,500 lbs
