USED 1992 CLEAVER BROOKS CB-700-700

Used Cleaver Brooks Steam Boiler, Approx. 24,150 steam lbs/hr, 29,291,000 BTU/hr. Model CB 700-700, 700 HP, MAWP 150 PSI. Fuel Natural Gas Fired, Boiler Weight 54,100 lbs. Built 1992

Cleaver Brooks 700 HP 150 PSI High Pressure Steam Boiler

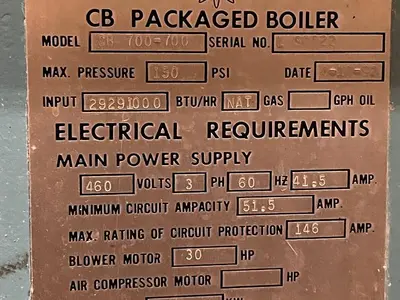

Equipment Description

Manufacturer: Cleaver Brooks
Model: CB 700-700
Boiler Horsepower: 700 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 29,291,000 BTU/hr
Steam Capacity: 24,150 steam Lbs/hr
Year Built: 1992
Serial No: L-50522
GPH Oil: N/A

Electrical Requirements

Main Power Supply
Voltage: 460V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 41.5 AMP
Minimum Circuit Ampacity: 51.5 AMP
Maximum Rating of Circuit Protection: 146 AMP

Blower Motor
Horsepower: 30 HP

Air Compressor Motor
Horsepower: N/A

Oil Heater: N/A

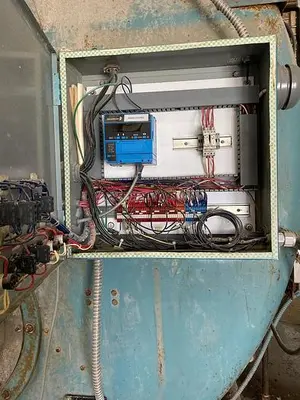

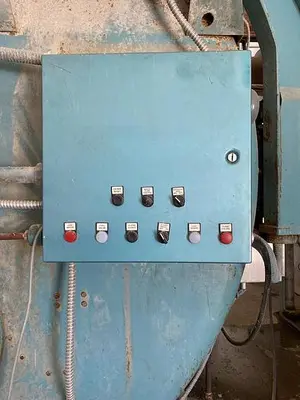

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: 460V
Phase: 1 PH
Hertz: 60Hz
Ampacity: 1.5 AMP

Overall Dimensions
Length: 26.41 ft
Width: 10.25 ft
Height: 10.5 ft

Boiler Weight: 54,100 lbs
