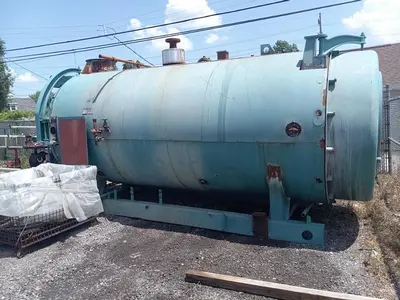

USED 1994 CLEAVER BROOKS CB 700-300

Used Cleaver Brooks Steam Boiler, 10,350 steam lbs/hr, 12,500,000 BTU/hr, Model CB 700-300, 300 HP, MAWP 225 PSI, Fuel Natural Gas Fired, Serial No L-93622, Boiler Weight Approx 40,000 lbs, Built 1994

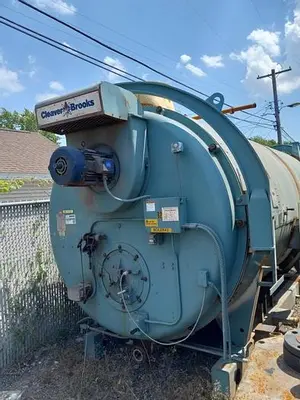

Cleaver Brooks 300 HP 225 PSI High Pressure Steam Boiler

Equipment Description

Manufacturer: Cleaver Brooks
Model: CB 700-300
Boiler Horsepower: 300 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas/Oil
Design Pressure or Maximum Allowable Working Pressure: 225 PSI
Heating Capacity: 12,500,000 BTU/hr
Steam Capacity: 10,350 steam Lbs/hr
Year Built: 1994
Serial No: L-93622
GPH Oil: N/A

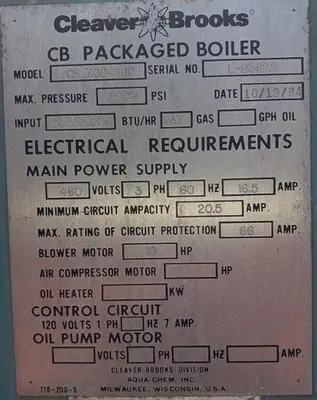

Electrical Requirements

Main Power Supply
Voltage: 460V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 16.5 AMP
Minimum Circuit Ampacity: 20.5 AMP
Maximum Rating of Circuit Protection: 66 AMP

Blower Motor
Horsepower: 10 HP

Air Compressor Motor
Horsepower: N/A

Oil Heater: N/A

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: N/A
Phase: N/A
Hertz: N/A
Ampacity: N/A

Overall Dimensions
Length: 24 ft
Width: 10 ft
Height: 14 ft

Boiler Weight: 44,000 lbs
