Used Cleaver Brooks Steam Boiler, 24,150 steam lbs/hr, 28,291,000 BTU/hr, Model CB 200-700, 700 HP, MAWP 150 PSI, Fuel Natural Gas Fired, Serial No L-93603, Boiler Weight 54,100 lbs, Built 1994

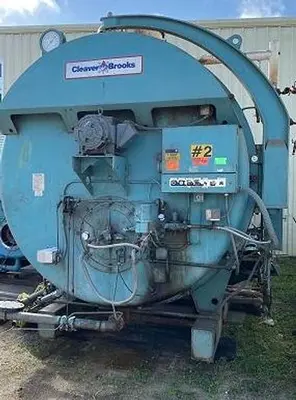

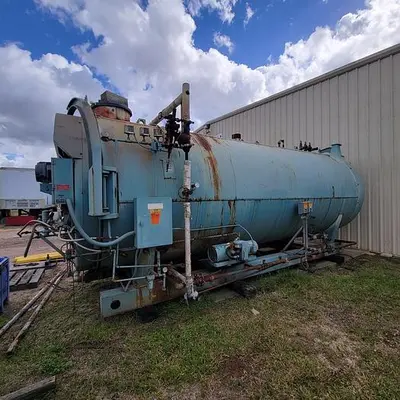

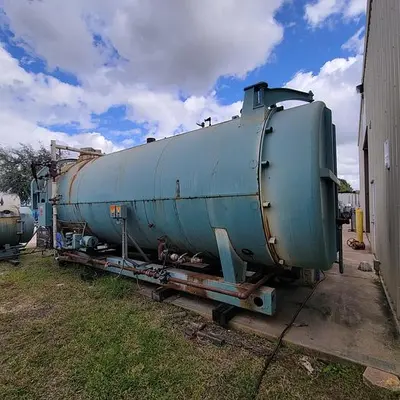

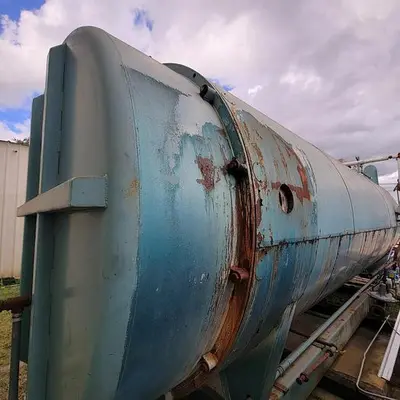

Cleaver Brooks 700 HP 150 PSI High Pressure Steam Boiler
Equipment Description
Manufacturer: Cleaver Brooks
Model: CB 200-700
Boiler Horsepower: 700 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas/Oil
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 28,291,000 BTU/hr
Steam Capacity: 24,150 steam Lbs/hr
Year Built: 1994
Serial No: L-93603
GPH Oil: 209

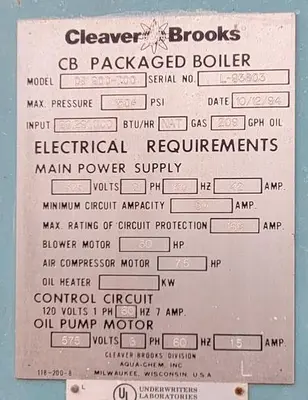

Electrical Requirements
Main Power Supply
Voltage: 575V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 42 AMP
Minimum Circuit Ampacity: 50 AMP
Maximum Rating of Circuit Protection: 168 AMP
Blower Motor
Horsepower: 30 HP
Air Compressor Motor
Horsepower: 7.5 HP
Oil Heater: N/A
Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP
Oil Pump Motor
Volts: 575V
Phase: 3
Hertz: 60Hz
Ampacity: 1.5 AMP
Overall Dimensions
Length: 26.41 ft
Width: 10.25 ft
Height: 10.5 ft
Boiler Weight: 54,100 lbs
