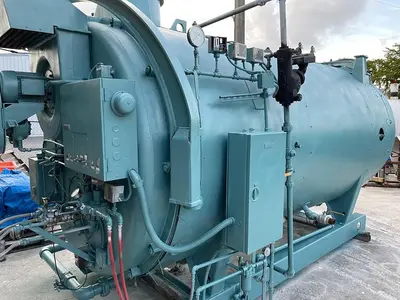

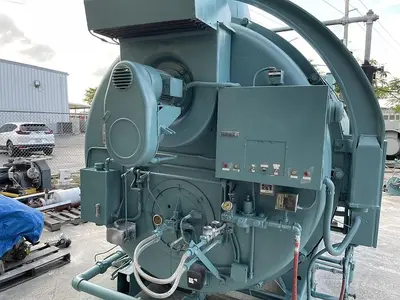

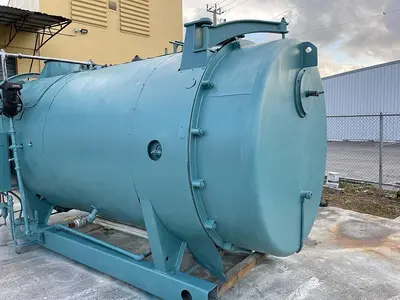

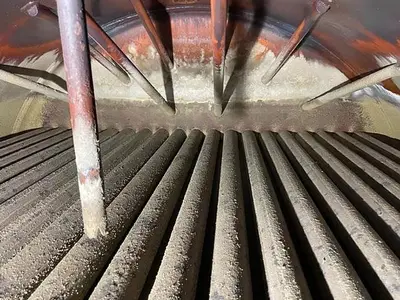

USED 1990 CLEAVER BROOKS CB 200-250

Used Cleaver Brooks Steam Boiler, 8,625 steam lbs/hr, Approx 8,368,750 BTU/hr, Model CB 200-250, 250 HP, MAWP 150 PSI, Fuel Natural Gas Fired, Serial No L-88566, Boiler Weight 23,400 lbs, Built 1990. Cleaver Brooks Gas / OIL removed for service working November 2021, Good working condition Boiler and feedwater tank

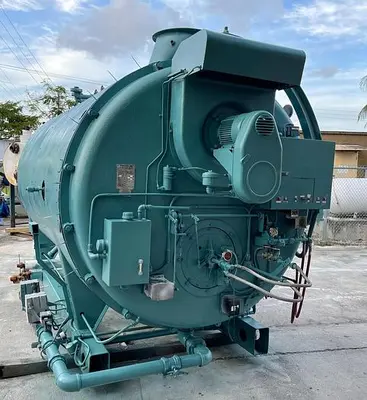

Cleaver Brooks 250 HP 150 PSI High Pressure Steam Boiler

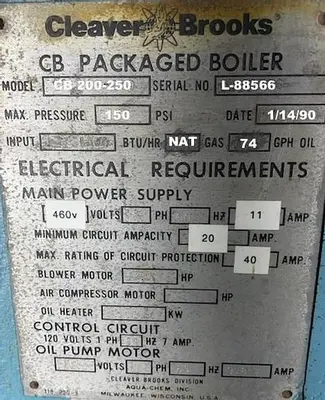

Equipment Description

Manufacturer: Cleaver Brooks
Model: CB 200-250
Boiler Horsepower: 250 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas/Oil
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 8,368,750 BTU/hr
Steam Capacity: 8,625 steam Lbs/hr
Year Built: 1990
Serial No: L-88566
GPH Oil: 74

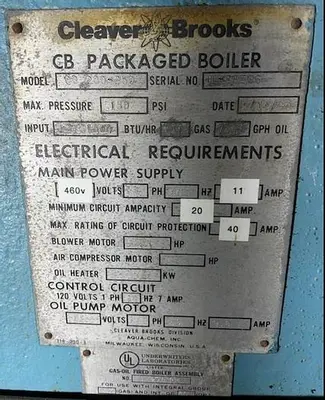

Electrical Requirements

Main Power Supply
Voltage: 460V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 11 AMP
Minimum Circuit Ampacity: 20 AMP
Maximum Rating of Circuit Protection: 40 AMP

Blower Motor
Horsepower: N/A

Air Compressor Motor
Horsepower: N/A

Oil Heater: 7.5 KW

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: 460V
Phase: 3
Hertz: 60Hz
Ampacity: 3.5 AMP

Overall Dimensions
Length: 16.41 ft
Width: 8.58 ft
Height: 8.83 ft

Boiler Weight: 23,400 lbs
