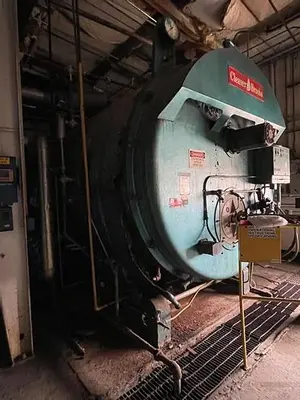

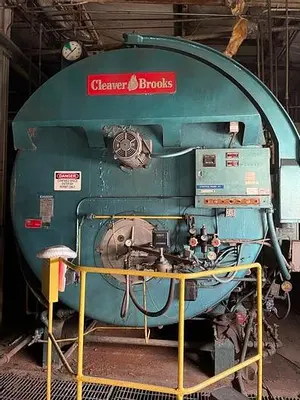

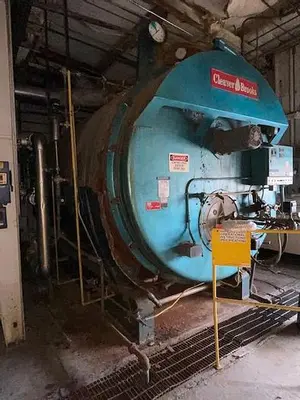

500 HP Cleaver Brooks 300 PSI Steam Boiler 1975

Used Cleaver Brooks Steam Boiler, 17,250 steam lbs/hr, 20,922,000 BTU/hr, 500 HP, MAWP 300 PSI, Fuel No. 6 Oil Fired, Serial No L-61178, Boiler Weight Approx. 60,000 lbs, Built 1975, Older boiler but in good working condition!

Cleaver Brooks 500 HP 300 PSI High Pressure Steam Boiler

Equipment Description

Manufacturer: Cleaver Brooks
Model: CB-600-500
Boiler Horsepower: 500 HP
Boiler Type: Steam Boiler
Fuel Type: No. 6 Oil Fired
Design Pressure or Maximum Allowable Working Pressure: 300 PSI
Heating Capacity: 20,922,000 BTU/hr
Steam Capacity: 17,250 steam Lbs/hr
Year Built: 1975
Serial No: L-61178
GPH Oil: N/A

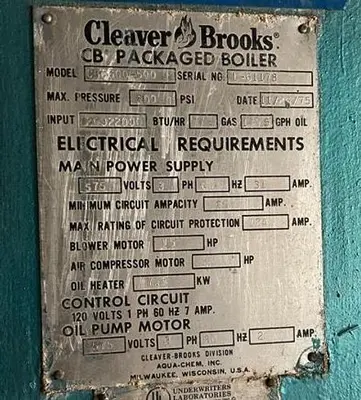

Electrical Requirements

Main Power Supply
Voltage: 575V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 31 AMP
Minimum Circuit Ampacity: 45 AMP
Maximum Rating of Circuit Protection: 124 AMP

Blower Motor
Horsepower: 15 HP

Air Compressor Motor
Horsepower: N/A

Oil Heater: N/A

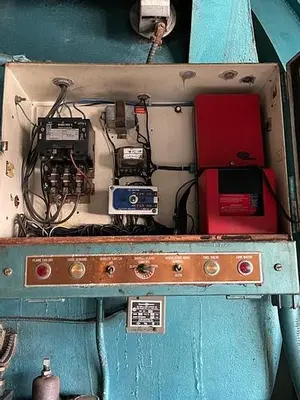

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: 575V
Phase: 1 PH
Hertz: 60Hz
Ampacity: 2 AMP

Overall Dimensions
Length: 20.33 ft
Width: 10.25 ft
Height: 10.5 ft

Boiler Weight: 60,000 lbs
