USED 1990 CLEAVER BROOKS CB200-200

Used Cleaver Brooks Steam Boiler, Approx. 6,900 steam lbs/hr, 1,369,000 BTU/hr. Model CB 200-200, 200 HP. MAWP 200 PSI, Fuel Natural Gas Fired, Serial No L-88466, Boiler Weight 16,300 lbs. Built 1990, Clean tubes, New insulation and skin

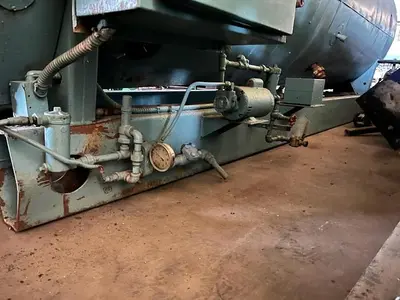

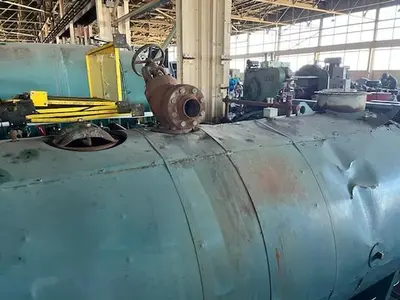

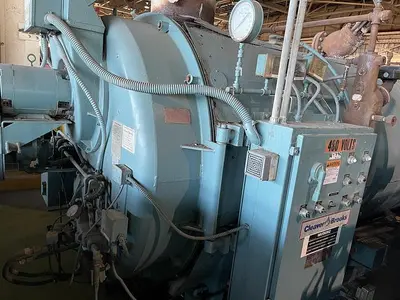

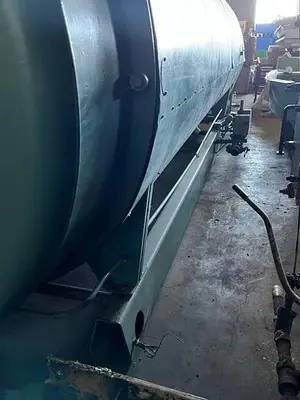

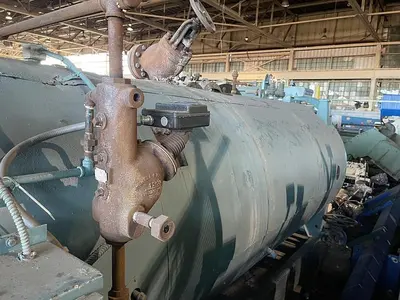

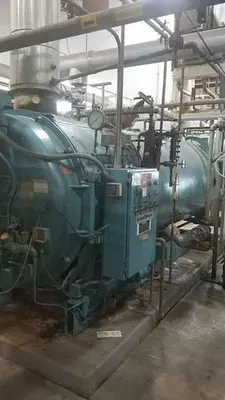

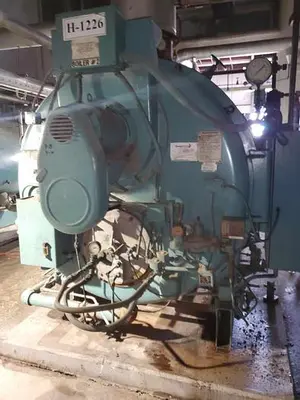

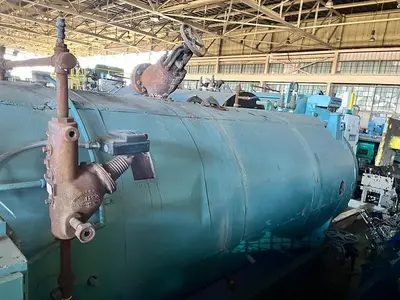

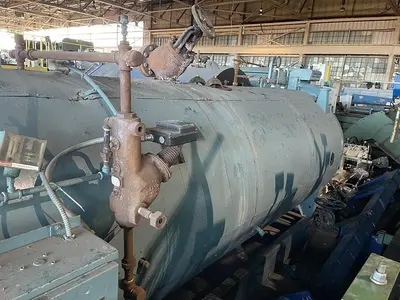

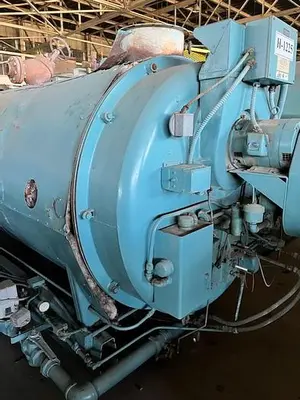

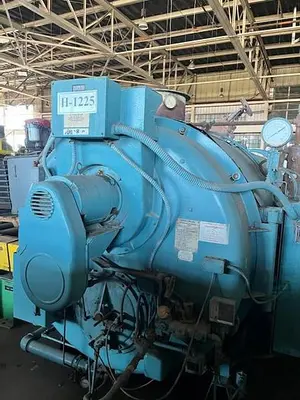

Cleaver Brooks 200 HP 200 PSI High Pressure Steam Boiler

Equipment Description

Manufacturer: Cleaver Brooks
Model: CB 200-200
Boiler Horsepower: 200 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas/Oil or Combination
Design Pressure or Maximum Allowable Working Pressure: 200 PSI
Heating Capacity: 1,369,000 BTU/hr
Steam Capacity: 6,900 steam Lbs/hr
Year Built: 1990
Serial No: L-88466
GPH Oil: 60

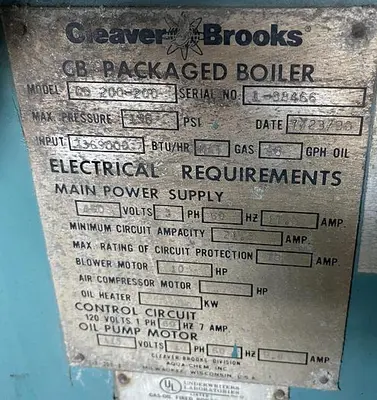

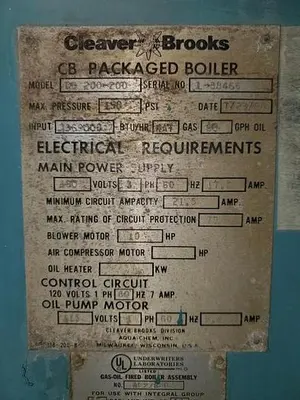

Electrical Requirements

Main Power Supply
Voltage: 460V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 17.5 AMP
Minimum Circuit Ampacity: 21.5 AMP
Maximum Rating of Circuit Protection: 70 AMP

Blower Motor
Horsepower: 10 HP

Air Compressor Motor
Horsepower: N/A

Oil Heater: N/A

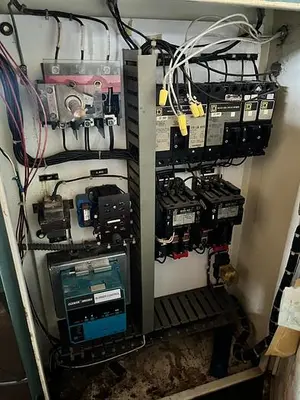

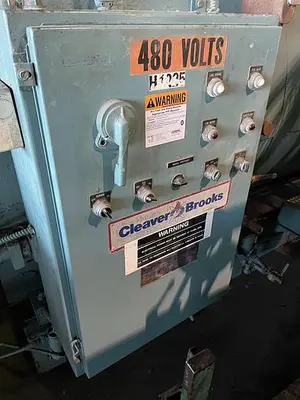

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: 115V
Phase: 1 PH
Hertz: 60Hz
Ampacity: 7.8 AMP

Overall Dimensions
Length: 26.58 ft
Width: 10.25 ft
Height: 10.5 ft

Boiler Weight: 16,300 lbs
