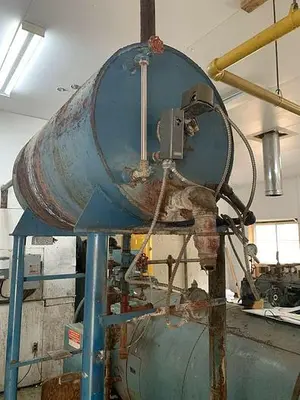

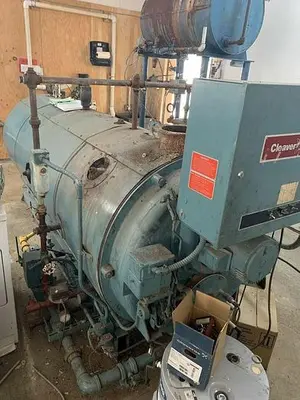

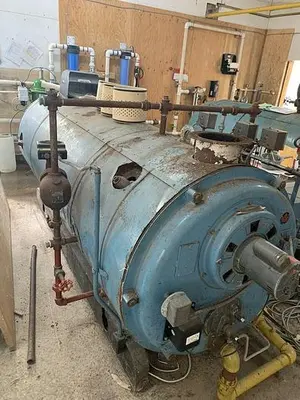

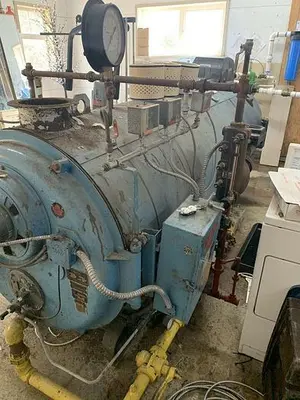

Used Cleaver Brooks Steam Boiler, Approx 1,380 steam lbs/hr, 1,675,000 BTU/hr, Model CB 700-40, 40 HP, MAWP 150 PSI, Fuel Natural Gas, Boiler Weight 4,500 lbs, Serial No S- 87511, Built 1995. We now have Q=2 CB-700-40 Boilers and 1 feed water Tanks, Two completely rebuilt gas-fired Cleaver-Brooks boilers. Haven’t been used since rebuild! These Boilers have Canadian stamps.
Cleaver Brooks 40 HP 150 PSI High Pressure Steam Boiler
Equipment Description
Manufacturer: Cleaver Brooks
Model: CB 700-40
Boiler Horsepower: 40 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas/Oil
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 1,675,000 BTU/hr
Steam Capacity: 1,380 lbs/hr.
Year Built: 1995
Serial No: S-87511
GPH Oil: N/A
Electrical Requirements
Main Power Supply
Voltage: 460V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 9 AMP
Minimum Circuit Ampacity: 10.5 AMP
Maximum Rating of Circuit Protection: 20.2 AMP
Blower Motor
Horsepower: 5 HP
Air Compressor Motor
Horsepower: N/A
Oil Heater: N/A
Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP
Oil Pump Motor
Volts: N/A
Phase: N/A
Hertz: N/A
Ampacity: N/A
Overall Dimensions
Length: 11.66 ft
Width: 5.08 ft
Height: 5.5 ft
Boiler Weight: Approx. 4,350 lbs.
