USED 2002 CLEAVER BROOKS CBI 700 240 125

Used Cleaver Brooks Hot Water Boiler, 9,900,000 BTU/hr, Model CBI 700 240 125, 240 HP, MAWP 125 PSI, Fuel Natural Gas, Boiler Weight 23,400 lbs, Built 2002

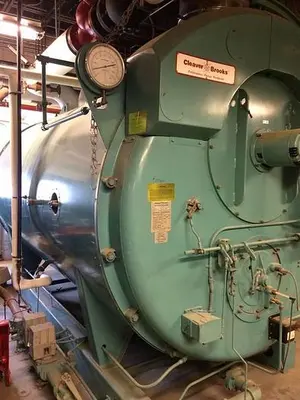

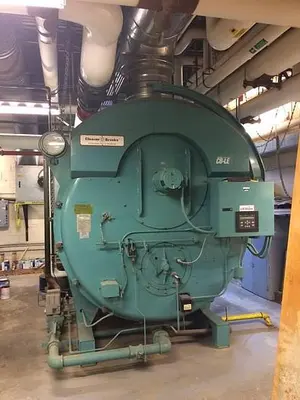

Cleaver Brooks 240 HP 125 PSI High Pressure Hot Water Boiler

Equipment Description

Manufacturer: Cleaver Brooks
Model: CBI 700 240 125
Boiler Horsepower: 240 HP
Boiler Type: Hot Water Boiler
Fuel Type: Natural Gas/Oil
Design Pressure or Maximum Allowable Working Pressure: 125 PSI
Heating Capacity: 9,900,000 BTU/hr
Steam Capacity: N/A
Year Built: 2002
Serial No: 0L102065
GPH Oil: N/A

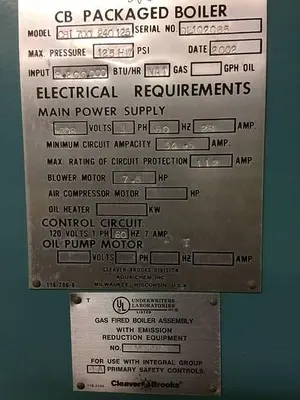

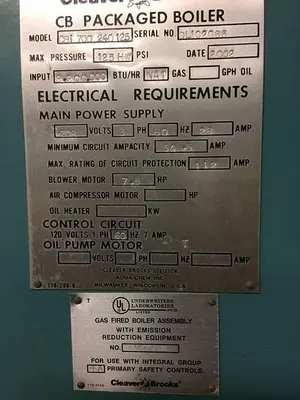

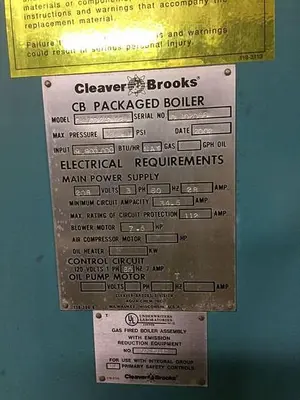

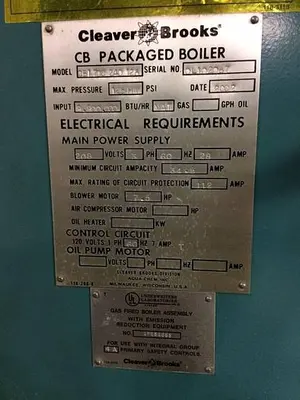

Electrical Requirements

Main Power Supply
Voltage: 208V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 28 AMP
Minimum Circuit Ampacity: 34.8 AMP
Maximum Rating of Circuit Protection: 112 AMP

Blower Motor
Horsepower: 7.5 HP

Air Compressor Motor
Horsepower: N/A

Oil Heater: N/A

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP

Oil Pump Motor
Volts: N/A
Phase: N/A
Hertz: N/A
Ampacity: N/A
