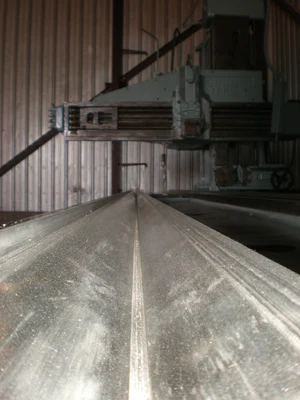

(1) USED Cincinnati "Hypro" 3' x 26' Openside Planner; S/N 7321
Specifications:
Area of Table..........................36" x 27' F-B (working)
36" x 29'2" F-B (O.A.)
Maximum Table Stroke...................27'
Maximum Under Rail.....................38"
Maximum Planing Width..................36"
Vertical Travel of Rail Head Slide.....15"
Vertical Travel of Side Head...........12"
All Heads Swivel (left or right).......45°
Electrical Characteristics:
All G.E. Drive System:
50 HP Motor Generator Set; 25 HP D.C. Motor (direct)
220/440VAC / 3 Phase / 60 Hz / 60/120 AMP
1765 RPM / 107/240V / 88/212 AMP / 250-1200 RPM
Equipped With:

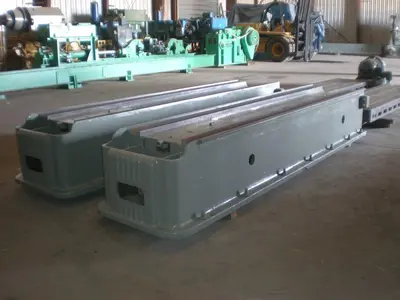

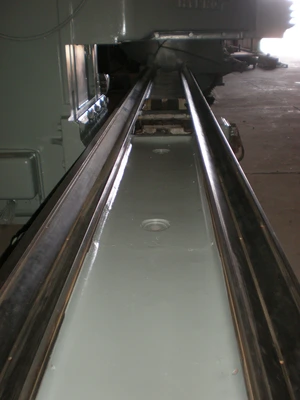

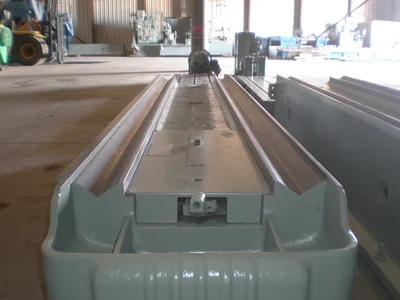

Cast Iron Vee ways for table

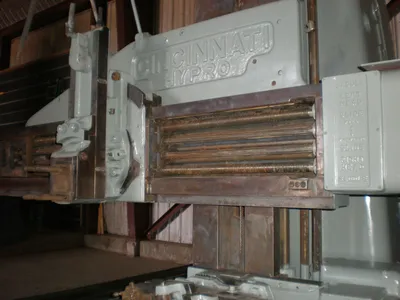

2 Rail Heads, (1 complete w/clapper box, 1 missing parts)
1 Side Head w/clapper box
Auto Recirculating Lube System
Power Feeds and Rapid Traverse on all Heads
Operator's Pendant Control
Dimensions:
Height...........................10' 4" (w/o pendant)
Width............................120" (w/o drive)
Length...........................56' 6" (complete), 29' 2" (min. shipping length)
Weight................................125,000 lbs (est)
F.O.B.................................Casa Grande, AZ
