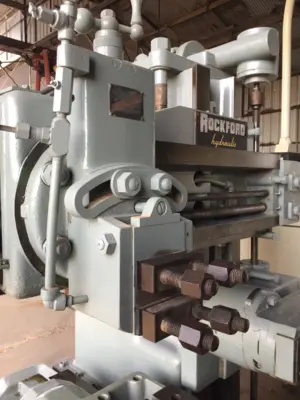

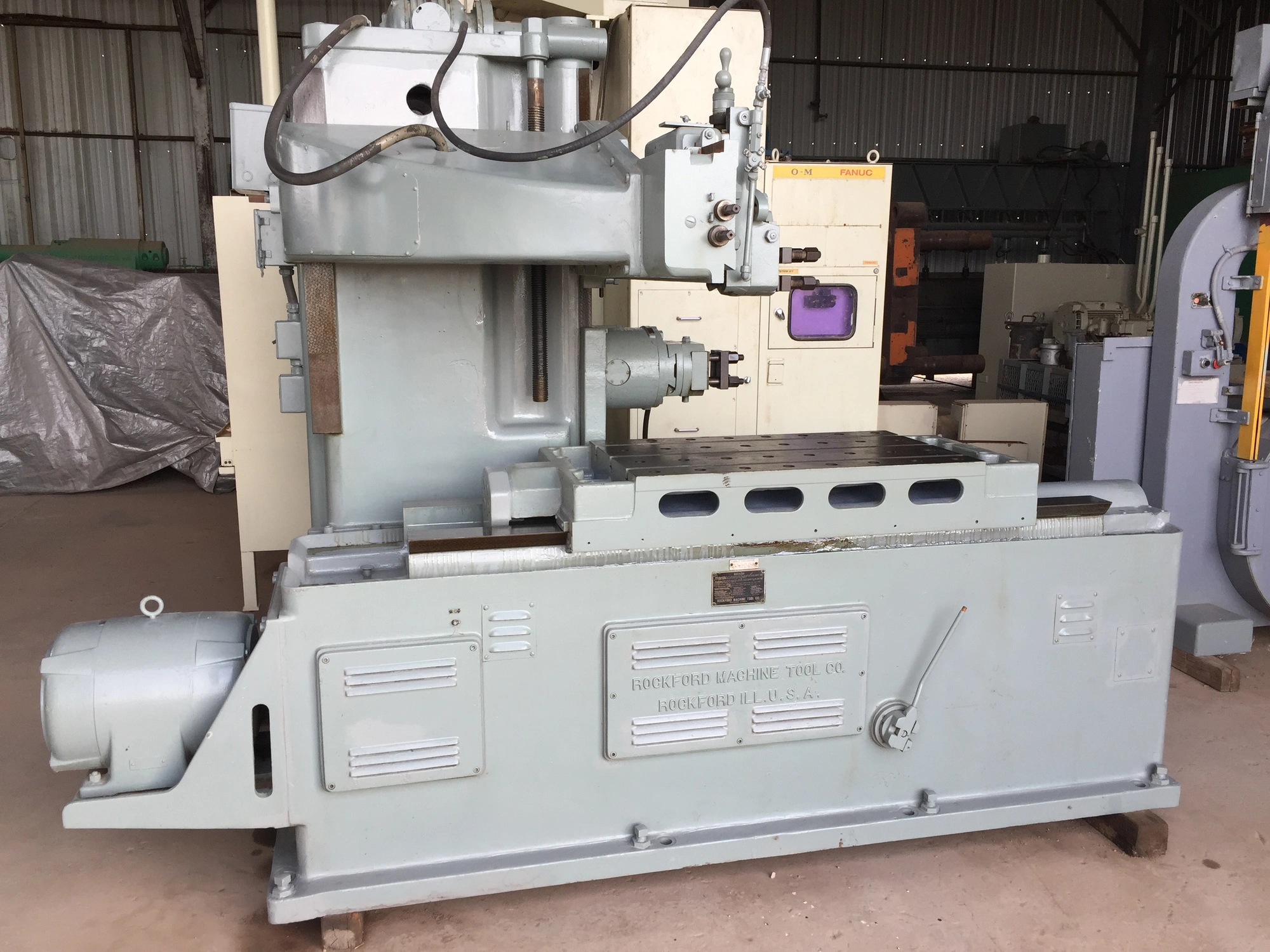

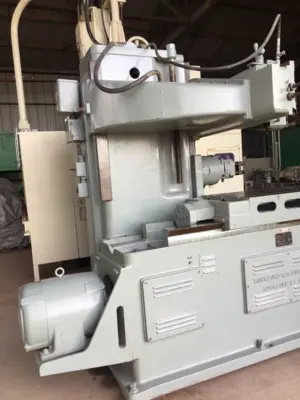

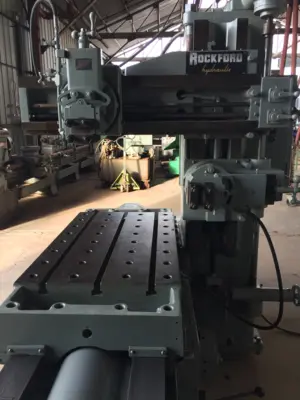

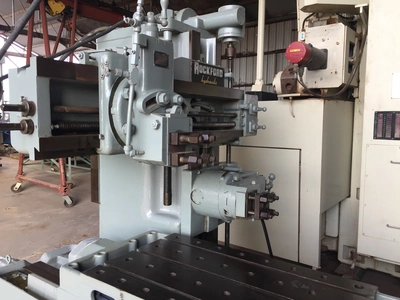

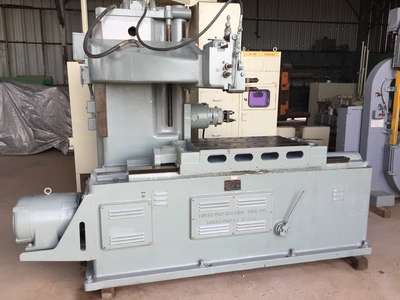

36" Rockford Hydraulic Shaper / Planer

36" Rockford Hydraulic Shaper / Planer; Low Hours; Like New
S/N 106UH60

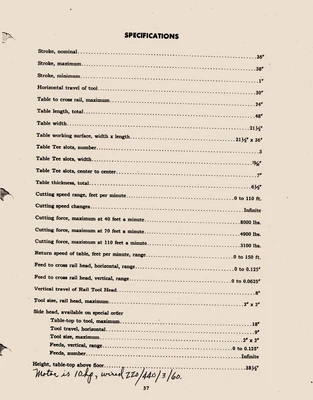

Stroke, nominal...................................................................36"
Stroke, maximum.................................................................38"
Stroke, minimum...................................................................1"
Horizontal travel of tool.......................................................30"
Table to cross rail, maximum...............................................24"
Table length, total..................................................................48
Table width..........................................................................21 1/2"
Table working surface, WxL..............................................21 1/2" x 36"
Table Tee slots number.......................................................3
Table Tee slots, width..........................................................13/16"
Table Tee slots, C-C............................................................7"
Table thickness, total..........................................................6 1/2"
Cutting speed, FPM...........................................................0 - 110
Cutting speed changes.......................................................Infinite
Cutting force, max at 40 feet/min.....................................8000 lbs.
Cutting force, max at 70 feet/min.....................................4900 lbs.
Cutting force, max at 110 feet/min....................................3100 lbs.
Return speed of table, FPM range.....................................0 - 150
Feed to cross
rail head
, horizontal.....................................0 - 0.125"
Feed to cross
rail head
, vertical.........................................0 - 0.0625
Vertical travel of rail tool head..........................................8"
Tool size,
rail head
, max....................................................2" x 2"
Height, table-top above floor.............................................38 1/2"
Electrical Characteristics........................................... 240 / 480 VAC / 3 Ph / 60 Cy
Equipped With:
Complete Electrical Controls with Operators Pendant
Oilgear Hydraulic System
Hydraulic Tool Lifters (2)
Misc. Tooling and Parts
Overall Dimensions..........
Weight.............................9,000 lbs
FOB......Casa Grande, AZ
