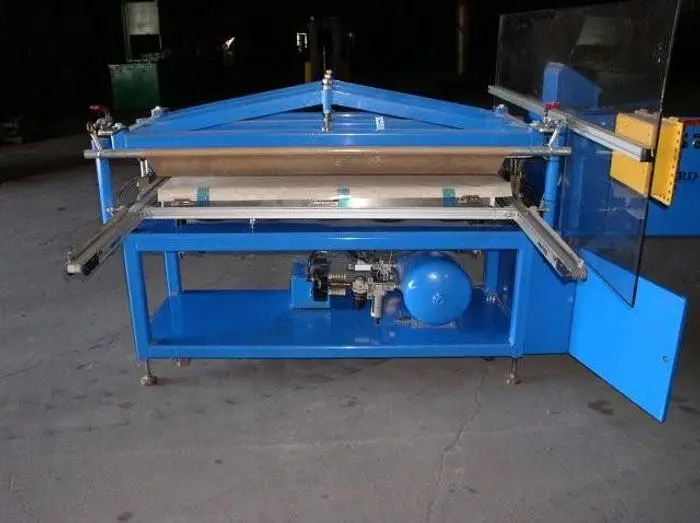

15 Ton WARD Up-Acting Pneumatic Lamination Press; 24" x 54" Bed; Heated Platens; Mfg. 2000

(1) Used 15 Ton WARD Up-Acting Pneumatic Lamination Press; All Steel Construction; 4 Post; Mfg. 2000
Specifications:
Capacity.................................................15 Ton @ 80 PSI
Bed Area................................................24" F-B x 54" L-R
Ram Area ..............................................24" F-B x 54" L-R
Distance Between Posts.........................70" L-R 20" F-B
Stroke of Ram (Slide).............................2"
Daylight Opening ...................................2 1/8"
Distance Floor To Ram..........................
Main Ram Diameter (10)........................5" (nominal)
Air System..............................................Variable Volume Pressure Compensated
Electrical Characteristics........................460 VAC / 3 Phase / 60 Cycle
Type of Platen Heating...........................Electric
Platen Temperature................................350 degrees Fahrenheit
Platen Thickness....................................1"
Equipped With:
Complete Air System With Reservoir
Complete Electric Controls With Touch Pad Screen
Complete Platen Heating System Controls
Loading/Unloading Conveyor System
Overall Dimensions................................87" F-B x 87" L-R x 65" Height
Weight...................................................2,000 lbs. (est.)
F.O.B.....................................................Casa Grande, Arizona
