USED 1990 MITTS & MERRILL/ FROMAG RA CNC 100/750
Overview
Description

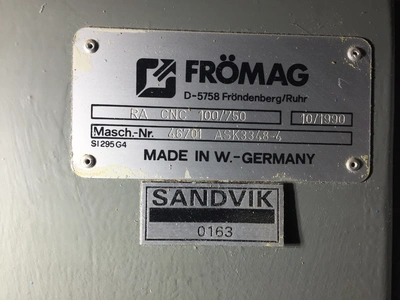

4" FROMAG/ MITTS & MERRILL CNC KEYSEATER;
MODEL: RA CNC 100/750
SER #46701 ASK3348-4
YEAR: 1990
SPECIFICATIONS:
MAXIMUM KEYWAY WIDTH: 1/8" TO 4"
MAXIMUM KEYWAY LENGTH: 30"
BORE DIAMETER: 1/2" TO 20"
FEED RATE: 0.0004" TO 0.0118"
CUTTING SPEED: 0 TO 75 FT / MIN
RETURN SPEED: 0 TO 150 FT / MIN
MAXIMUM WORKPIECE WEIGHT: 35,000 LBS.
CUTTING FORCE: 30,000 LBS.
TABLE SIZE: 19.68" L-R X 30.31" F-B
OPERATING HEIGHT: 43.30"
MOTOR: APPROX. 20 HP
EQUIPPED WITH:
HYDRAULIC TOOL RETRACTION

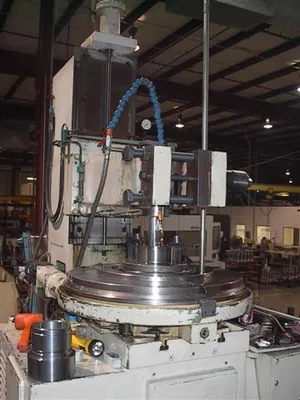

CNC ROTARY TABLE (for spiral and spline cutting)

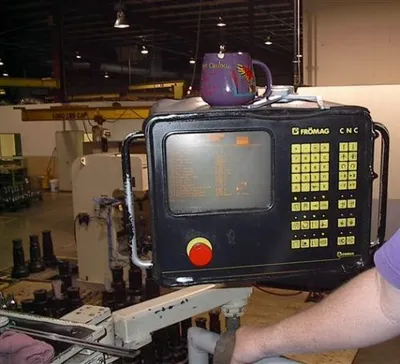

SPIRAL CNC CONTROL SYSTEM
COMPLETE HYDRAULIC SYSTEM
OVER-ARM
TOOL GUIDE

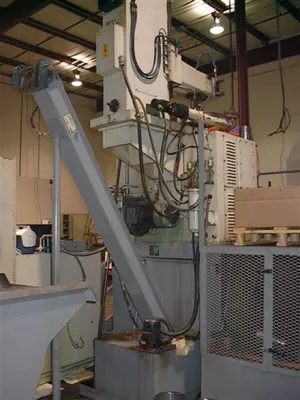

CHIP REMOVAL CONVEYOR WITH CUTTING OIL RECOVERY SYSTEM
APPROXIMATE WEIGHT: 13,800 LBS.
OVERALL DIMENSIONS; 6 ft x 6 ft x 5 ft High (Above Floor with Pit)
FOB.......................... Casa Grande, Arizona
