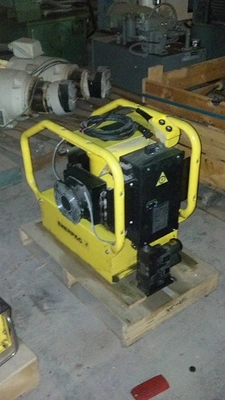

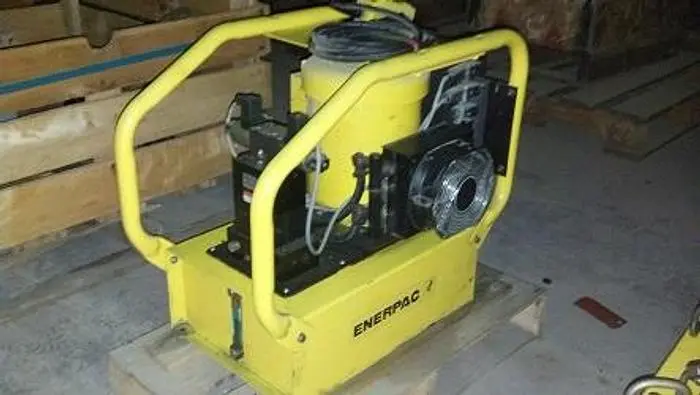

Enerpac Prototype 15 Hydraulic Unit

(1) Used Enerpac Prototype 15 Hydraulic Unit
Specifications:
System Manufacturer.....................Enerpac
Model #..........................................Prototype 15
Date Code......................................A1703L
Pump:
Model #.....................................GPEx5
Serial #.......................................
Max. Pressure...........................10,000 psi (700 bar)
Flow..........................................120 in./min [2 L/min] @ max. pressure
120 in./min [2 L/min] @ ____ pressure (single stage)
640 in./min [11 L/min] @ zero pressure (two-stage)
RPM...........................................
Tank...............................................5 gallons (20 L)
Valves.............................................Parker D1VW2CNJWF Solenoid 4-way 3-position
Motor...............................................Enerpac C182T17FZ3E
Output........................................3 HP
Speed........................................1,740 RPM
Electrical Characteristics.................208-240 VAC / 3 Phase / 50/60 Cycle
Overall Dimensions.........................28" L x 17 1/2" W x 22 1/2" H
Weight.............................................
F.O.B...............................................Casa Grande, Arizona
