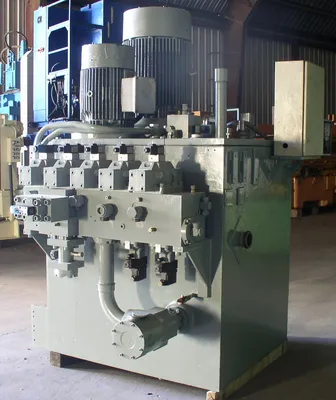

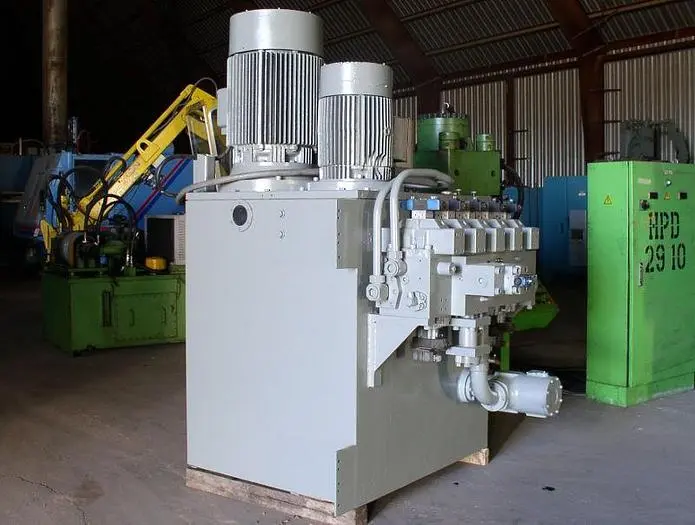

90 hp Rexroth Oilgear Hydraulic Unit 1,500 PSI 500 gal

(1) Used Hydraulic Power Supply & Electrical Panel
Specifications:
Pump #1......................................................Rexroth
Type #...................................................A7V500LV5-1RPF0D
Serial #....................................................USA57677
P.S.I........................................................4569
G.P.M......................................................115 @ 900 RPM (capable of 230 @ 1800)
R.P.M......................................................900
Pump #2.......................................................Oilgear
Model #...................................................PVWH-45-RDRS-CNNNTH-CP
Serial #....................................................04544838
P.S.I........................................................2500 (rated continuous), 3000 (peak)
G.P.M......................................................36 @  1500
R.P.M......................................................1500
Pump #3.......................................................Oilgear
Model #...................................................PVWH-60-RDRS-CNNNTH-
Serial #....................................................03524714
P.S.I........................................................1500 (rated continuous), 2000 (peak)
G.P.M......................................................48.5 @ 1500
R.P.M......................................................1500
Tank Capacity.............................................490 Gallons
Tank Dimensions.........................................43" L x 51" W x 55" H
Valves..........................................................Multiple
Primary Motor..............................................60 HP
Speed.....................................................900 RPM
Amps......................................................77
Secondary Motor.........................................30 HP
Speed....................................................1,500 RPM
Amps......................................................42

Equipped With:
Pump #1 is equipped with a constant horsepower control (as pressure increases, maximum volume decreases - as pressure decreases, maximum volume increases
Valves
(2) Continental 3 Possision 4 Way Valve
(3) Continental 2 Possision 4 Way Valve
(3) Atos Proportional Relief Valve
(1) Vickers Pilot Operated Relief Valve
Overall Dimensions.....................................80" L-R x 66" F-B x 94" High
Weight........................................................8,000 lbs. (est.)
FOB........................................................Casa Grande, AZ
