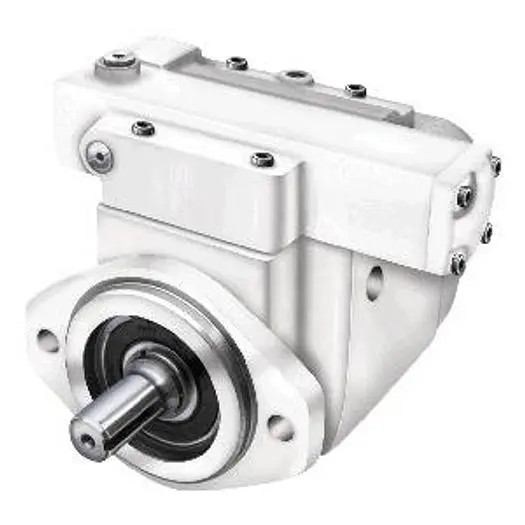

OILGEAR PVWJ Variable Pump

(1) Used
OILGEAR PVWJ Variable Pump

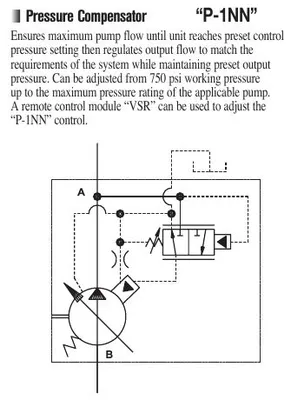

; Open Loop; Pressure Compensating
Specifications based on 150-300 ssu viscosity fluid:
Model..................................................................PVWJ-046-A1UV-MLDFY-P-1NN/H023NN/CP
Frame Size..........................................................B
Shaft....................................................................0.875" Keyed
Fluid Viscosity Range.........................................65-2000 ssu
Theoretical Max. Displacement........................2.83 cu. in./revolution
Rated Continuous Pressure.............................2,500 psi
Peak Pressure....................................................3,000 psi

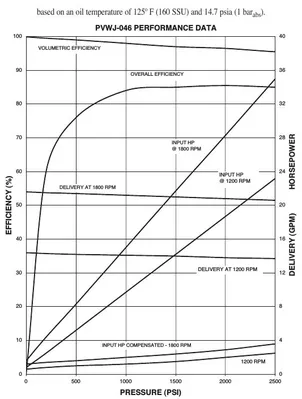

Flow Rate @ 1800 RPM & 2500 psi.................20.6 gallons/minute
Min. Inlet Pressure @ 1800 RPM......................9.0 psia
Min. Speed..........................................................600 RPM
Max. Speed.........................................................2,400 RPM
Power Input @ 1800 RPM & 2500 psi..............35 HP
Face Mounting....................................................SAE "B", 2 bolts
Shaft and O-Ring Seals......................................Viton
Rotation...............................................................Left (Counter-Clockwise)

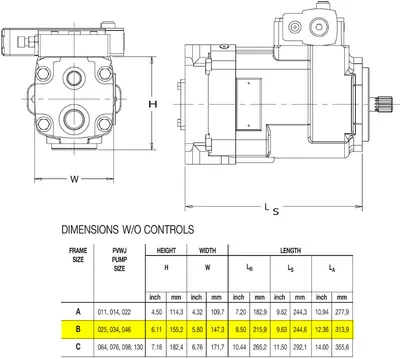

Overall Dimensions.............................................8.5" L x 5.8" W x 6.11" H
Weight..................................................................
