36" Tannewitz Mdl. G1NE Block Saw #3825
Overview

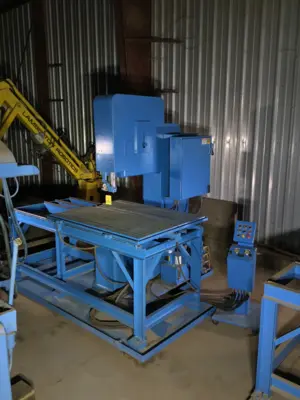

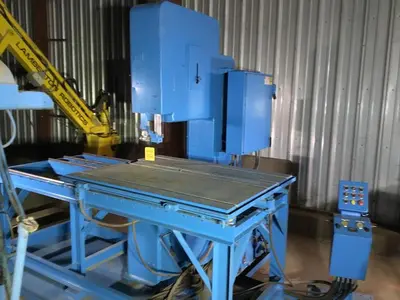

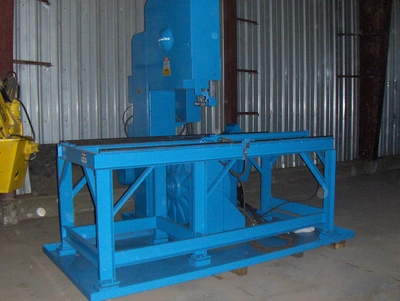

36" TANNEWITZ Model G1NE Vertical Band Type Plate & Block Saw, #3825
S/N 24004PE
Specifications:
Plate Capacity:
Length................................54" (maximum)
Width..................................72"
Thickness...........................16" (maximum)
Travel of Saw Table.................55" (nominal)
Blade Speed (Variable)............(per customer requirement).
Blade Tension Control.............Automatic / Hydraulic
Wheel Diameter......................36"
Throat Depth...........................35 1/2"
Base Construction...................Fabricated & Welded Steel
Blade Width Capacity..............1/2" to 2"
Blade Length........................... 20' (nominal)
Table Size (Main)..................... 48" x 60" (nominal)
Table Capacity (Main)..............5,000 lbs (est.)
Upper Wheel Adjustment..........5" (nominal)
Wheel Type...............................Heavy duty balanced steel disc
Guide Post Size........................1 1/4" x 2 1/4"
Table Height.............................45 1/2" (from floor)
Motor Output............................ 15 HP
Electrical Characteristics..........220/440 VAC / 3 Phase / 60 Cycle
Equipped With:
Heavy Duty Blade Guides

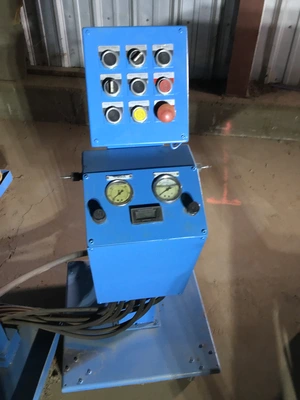

Complete Electrical Controls with Operators Control Station
15 HP Variable Speed Band Saw Drive
Traveling Table with Dual Precision Guide Rails and Power Feed
Mist Type Coolant System
Operators Manual (optional from manufacturer)
Overall Dimensions..................10' L-R x 9' ft F-B x 9' 6" High (est.)
Weight.......................................6,000 lbs. (est.)
F.O.B...............................Casa Grande, AZ
