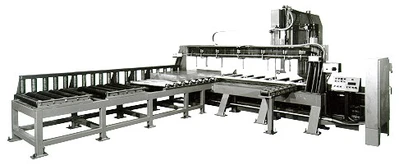

24" x 150" Tannewitz Model 60-24MH Vertical Band Type Plate Saw; Mfg. 1995

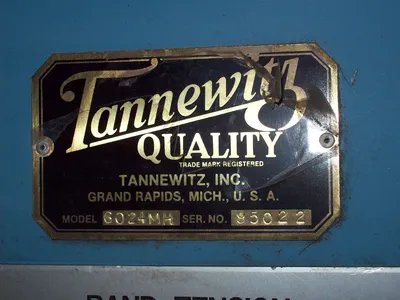

(1) Used TANNEWITZ Model 60-24MH Vertical Band Type Plate Saw; Traveling Head Design; Mfg. 1995; S/N 95022

Cutting Capacity:
Length.............................150"
Width...............................60"
Thickness........................24"

Table Capacity:
Length............................150"
Width..............................132"-260"

Back gauge capacity.....................0-45" W
Travel of Saw Head.......................150"
Blade Speed (Variable)...................80 - 3,600 F.P.M.
Wheel Diameter...........................36"
Throat Depth.............................60"
Blade Width Capacity.....................2"
Table Height.............................36" (from floor)
Motor Output.............................15 HP
Electrical Characteristics...............220/440 VAC / 3 Phase / 60 Cycle

Equipped With:
Stock Indexing
Disappearing back gauge

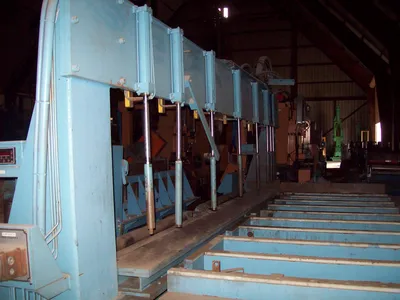

Hydraulic Hold-Down System
Heavy Duty Blade Guides

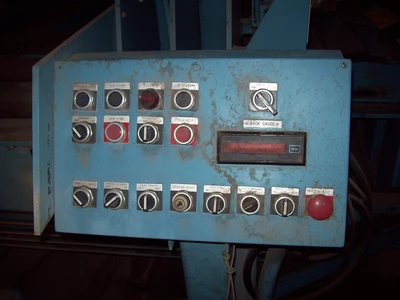

Complete Electrical Controls with Operators Control Station
15 HP Variable Speed Band Saw Drive
Traveling Head with Dual Precision Guide Rails and Power Feed
Power Guide Post Adjustment
Mist Type Coolant System
Operators Manual (optional from manufacturer)
F.O.B....................................Casa Grande, AZ
