60 Ton Minster #6 O.B.I. Press; Mechanical Clutch; S/N 6-B553
Overview
Description

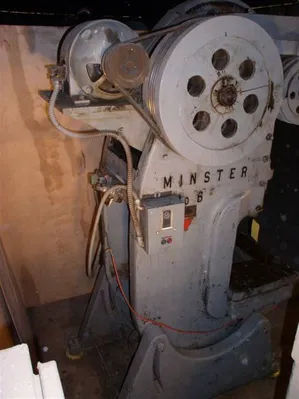

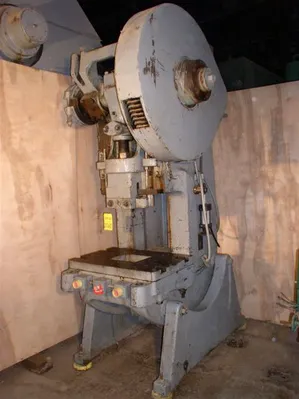

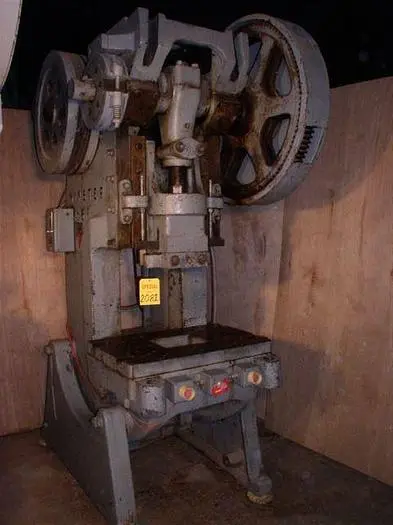

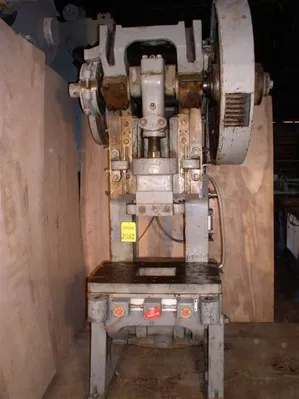

(1) Used 60 Ton MINSTER #6 Open Back Inclinable Press; Single Back Geared; S/N 6-3553
Specifications:
Capacity.............................60 Tons
Bed Area.............................23 1/2" L-R x 21" F-B
Opening In Bed.......................10 1/8" L-R x 8" D
Flanged Slide Face Area..............15" L-R x 11 1/2" F-B
Distance Between Housings............
Opening Through Back.................15" W x 22 1/2" H
Slide Adjustment.....................3"
Stroke...............................4"
Shut Height Over Bed (SDAU)..........14 1/2"
Throat Depth.........................8"
Distance Bed To Floor................33 1/2"
Speed................................50 S.P.M. (est.)
Motor................................GE 5 HP
Electrical Characteristics...........220/440 VAC / 3 Phase / 60 Cycle
EQUIPPED WITH:
Complete Electric Controls
Minster Full Revolution Mechanical Clutch w/Air Actuating Mechanism
5 HP AC Main Drive Motor
Approx. Overall Dimensions............52" W x 70" D x 106" H
Weight................................13,000 lbs. (est.)
F.O.B.................................Casa Grande, AZ
