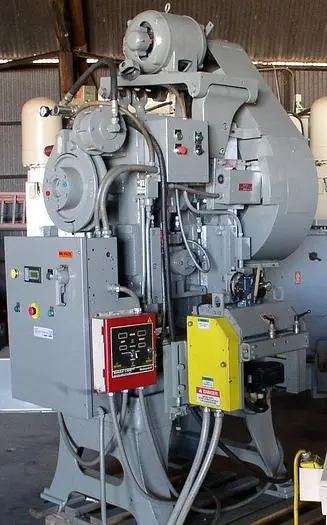

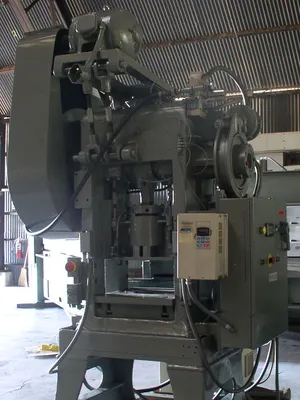

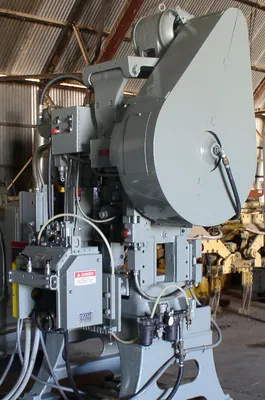

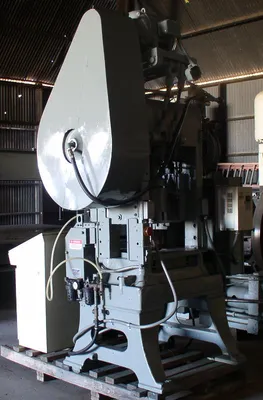

30 Ton Bliss Straight Side S.C. High Speed Press; Flywheel Drive; Re-mfg. 2005

(1) Used 30 Ton Bliss Straight Side S.C. High Speed Press; Flywheel Drive; Re-mfg. 2005
Specifications:
Capacity:
Bottom of Stroke.............................30 tons
Mid-Stroke......................................
Bed Area.............................................14" x 20"
Bed Opening.......................................12" L-R x 6" F-B
Slide Area............................................16" L-R x 8" F-B
Distance Between Housings.................20"
Distance Between Gibbs......................16 1/2"
Window Opening..................................6 7/8" L-R x 9 1/2" T-B
Stroke...................................................2" (est.)
Daylight Opening.................................10" (est.)
Shut Height Over Bed (SDAU)..............8" (est.)
Distance Floor to Bed...........................32"
Power Ram Adjustment.........................3" (est.)
Speed...................................................50 - 200 SPM
Main Drive Motor...................................7 1/2 HP
Electrical Characteristics.......................240/480 VAC / 3 Phase / 60 Cycle
Equipped With:

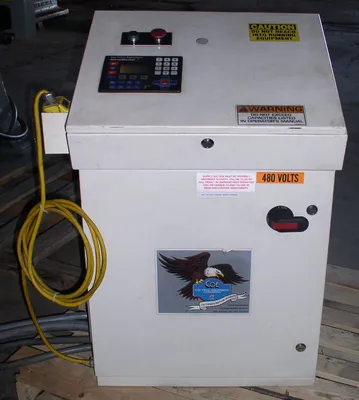

PA Microprocessor Control
AC/Brake
7 1/2 HP VFD Delta
Wintriss Autoset 1500 Load Monitor
6 cam RLS
Ross Dual Sol. Valve
Automatic Lubrication System
12" x 10ga C.O.E. "Servomaster 3" Servo Roll Feeder (2007, optional)
Approx. Overall Dimensions.................79" L x 64" W x 110" H
Weight..................................................5,500 lbs. (est.)
F.O.B....................................................Casa Grande, AZ
