| X | 61" | 1,549.4 mm |
| Y | 29.5" | 749.3 mm |
| Z | 28.3" | 718.82 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 30 | 30 |
| Taper | Cat 50 | Cat 50 |
| Table-W | 27.6" | 701.04 mm |
| Table-L | 70.9" | 1,800.9 mm |
| Dimensions | Machine: 160 x 155 x 135, Conveyor: 187 x 70 x 70 | Machine: 160 x 155 x 135, Conveyor: 187 x 70 x 70 |
| Weight | 4400 | 4400 |
Specifications (subject to buyer verification):
Table Size L x H: 70.9 x 27.6”
Max. Table Capacity: 4,400 LBS
X – Axis Travel: 61”
Y – Axis Travel: 29.5
Z – Axis Travel: 28.3
Spindle Taper: Cat 50
Spindle Speed: 8,000
Spindle HP: 25
Tool Changer Capacity: 30
Power: 220 Volt, 60 Hz, 3 Phase
Breaking Capacity: 25 to 50 KVA
Machine Overall Dimensions L x W x H: 210” x 155” x 135”
Conveyor Dimensions L x W x H: 187” x 70” x 70”
Machine Dimensions L x W x H: 160” x 155” x 135”
Equipped With (subject to buyer verification):

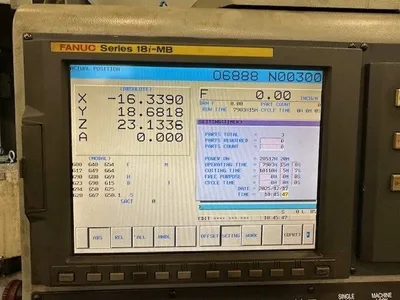

Fanuc 18i-MB Controller

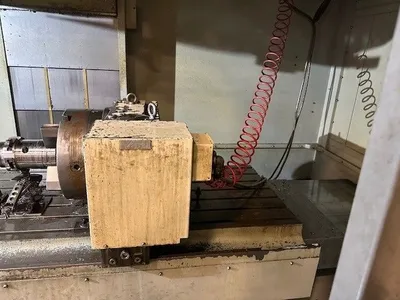

4th Axis
16” Chuck
Bore 5”

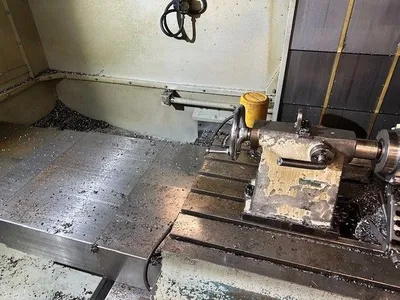

Tail Stock
