USED 1959 CINCINNATI 1010

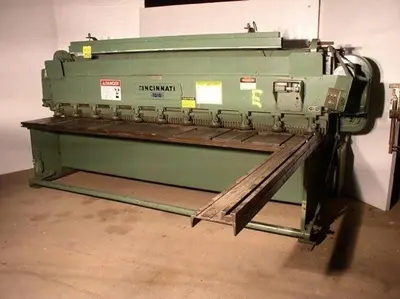

(1) Used 10' x 10 ga. Cincinnati Model 1010 Mechanical Shear; S/N 31411
Specifications:
Maximum Capacity.........................10 ga.
Length of Cut............................126"
Length Between Housings..................123"
Shear(Rake) Angle Taper Per Foot.........7/16"
Gap (Throat).............................6"
Distance Bed to Floor....................32"
Speed....................................65 spm (nominal)
Size of Four-Edged Knives................1" x 2 7/8" x 126"
Length of Knives.........................126"
Motor....................................5 HP @ 1610 RPM
Electrical Characteristics...............208/220/440 VAC / 3 Phase / 60 Cycle
Equipped With:
36" FOPB
Oiler / lubrication system
Power hold down system
Squaring Arm -6'
Complete Electrical Controls
Overall Dimensions.......................153" L-R x 75" F-B x 70" High (est.)
Weight...................................11,000 lbs. (est.)
F.O.B....................................Casa Grande, Arizona
