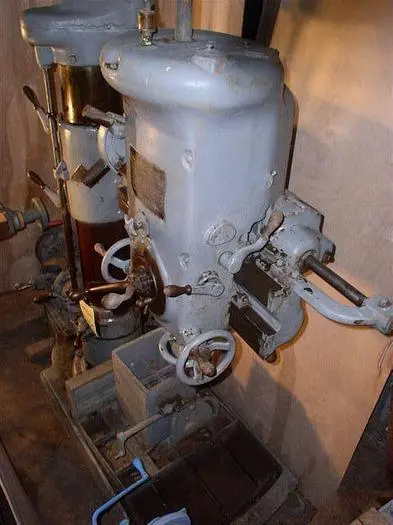

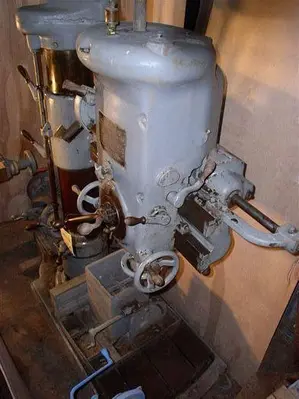

36" x 10" AMERICAN Radial Arm Drill; 700 R.P.M.; #4 M.T.; Heavy Duty; Older; Excellent Condition

36" x 10" AMERICAN Radial Arm Drill; 700 R.P.M.; #4 M.T.; Heavy Duty; Older; Excellent Condition

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Drills
Manufacturer:
AMERICAN
Stock #:
1425
Description

(1) Used 3' x 10" AMERICAN Model 396x153 Radial Arm Drill; 700 R.P.M.; #4 M.T.; S/N 684892A-1
Specifications:
Column Diameter................................10"
Length of Arm..................................36"
Table Size.....................................27 11/16" x 21 7/8"
Base Size......................................31 7/8" L-R x 82" F-B
Base Type......................................T-Slotted Cast Iron
Spindle Taper..................................#4 M.T.
Quill Travel...................................12 3/8"
Variable Spindle Speeds (24)...................30-700 RPM
Travel of Head on Arm..........................24"
Vertical Travel of Arm.........................28" (nominal)
Distance Chuck Nose to Table Top...............
Table Working Area.............................
Distance Floor to Table Top....................
Centerline of Spindle to Post Collar Bracket...
Centerline of Spindle to Post..................11 1/2" - 45"
Column Post Collar Height......................
Motor..........................................U.S. Motors 3 HP
Electrical Characteristics.....................220/440 VAC / 3 Phase / 60 Cycle
Equipped With:
Complete Electric Controls
Power Feeds
Overall Dimensions.............................33" L-R x 100" F-B x 88" High
Weight.........................................4,000 lbs. (est.)
F.O.B..........................................Casa Grande, AZ
