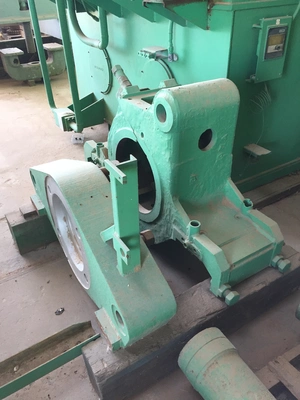

700 Ton Loewy Extrusion Press; 4 1/2" x 16" Billet

700 Ton Loewy Extrusion Press; 4 1/2" x 16" Billet

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Extrusion Presses
Year:
1968
Stock #:
2338
Description

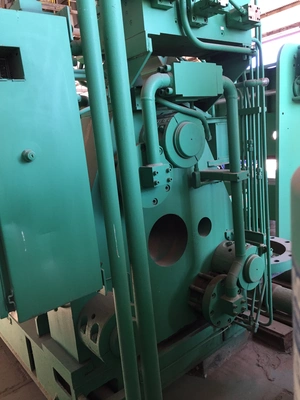

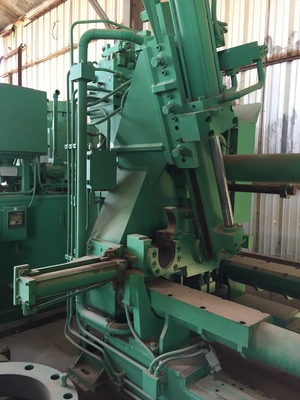

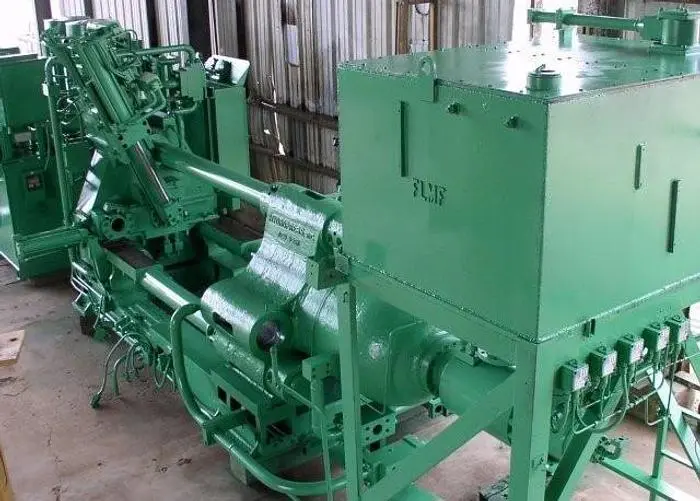

(1) Used 700 Ton Loewy "Hydropress" Extrusion Press
Specifications:
Extrusion Force.........................708 Tons @ 3200 PSI
Assist Cylinders (2)....................50 Ton Capacity (each)
Stroke(Ram).............................42" (nominal)
Main Ram Diameter.......................22"
Tie Rod Diameter(3).....................7"
Distance Floor to Press Center-line.....36"
Stump Shear Capacity....................65 Tons
Speeds:
Advance............................0-700 I.P.M.
Pressing (Extrusion)...............0-150 I.P.M. (est.)
Opening (Return)...................0-1000 I.P.M.
Container System:
Billet Diameter....................4 1/2" (nominal)
Billet Length......................16" (maximum)

Container Heating System...........Electric
Travel of Container Housing........36" (est.)

Hydraulic System:
System Pressure....................3,200 PSI
System Capacity....................1200 Gal. (est.)
System Horsepower (total)..........525 H.P.

Equipped With:

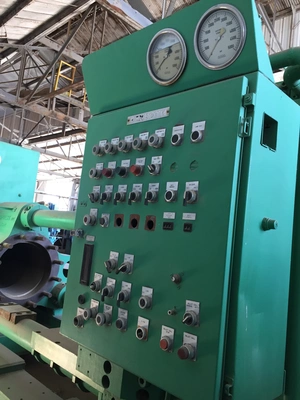

Original controls.

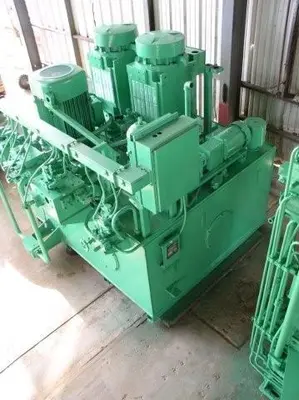

Rexroth Variable Volume Pressure Compensated Hydraulic System With Reservoirs

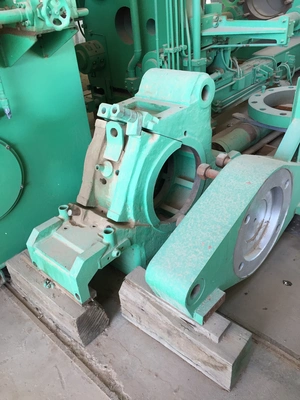

Hydraulic Actuated Stump Shear
Extrusion Die Holder and Clamping System

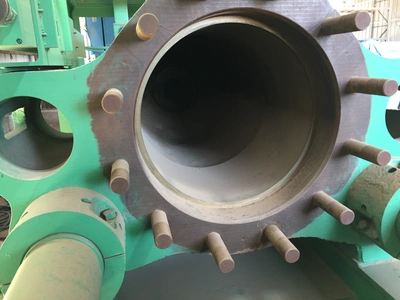

Billet Container System With Electric Heater

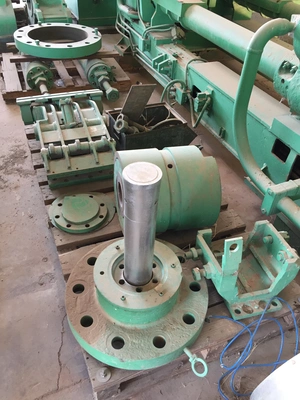

4" Dia. Extrusion Mandrel (1)
Overall Dimensions......................30' L-R x 8' F-B x 106" High
Weight..................................54,500 lbs. (total est.)

Press frame...............35,000 lbs

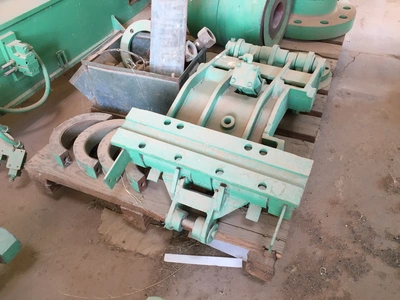

Parts removed...........10,000 lbs
Hyd. unit.....................8,000 lbs

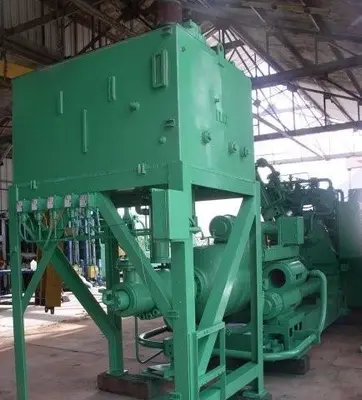

Prefill tank..................1500 lbs

F.O.B...................................Casa Grande, Arizona
