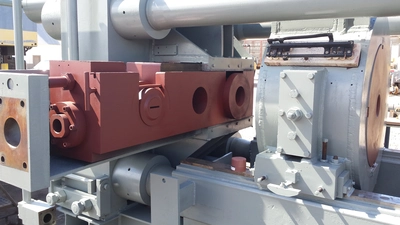

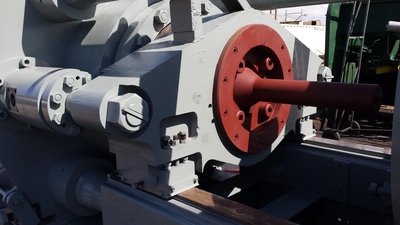

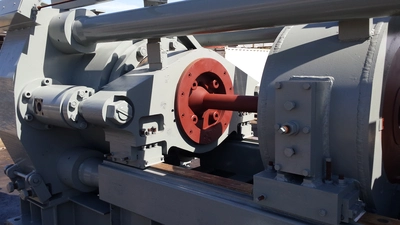

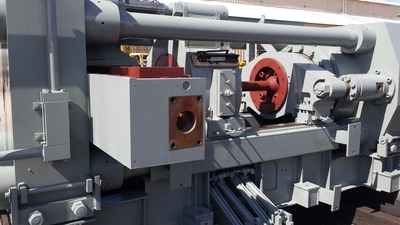

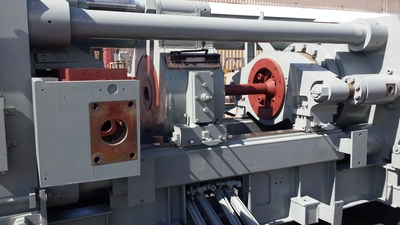

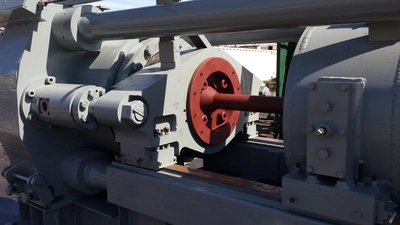

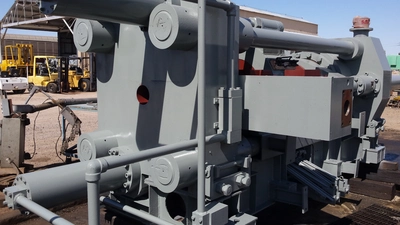

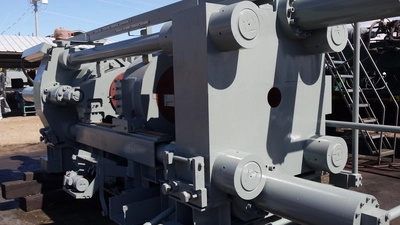

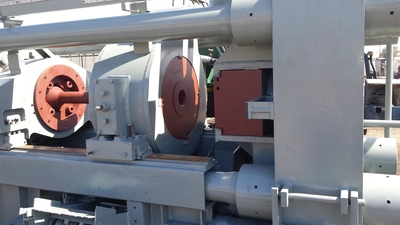

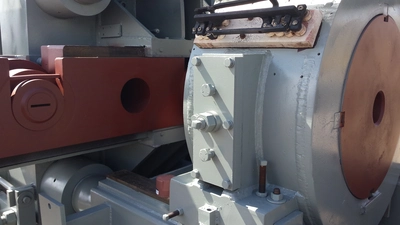

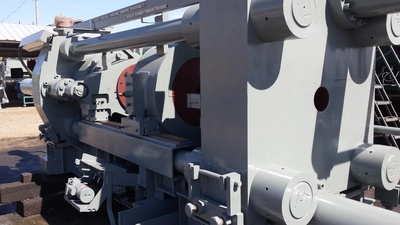

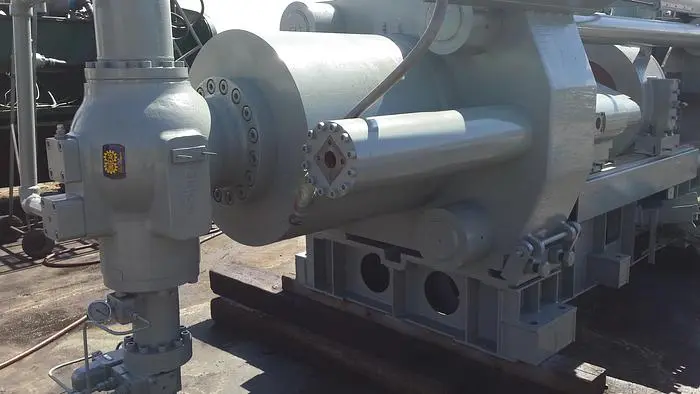

750 Ton Schloemann Hydraulic Extrusion Press

Specifications:
Press:
Frame Type..........................................Tie Rod Construction  / Symetrical Orientation
Extrusion Force...........................................750 Tons @  2,895 PSI
Stripping / Return Force.............................. 75 Tons @  2,895  PSI
Stroke (Ram)...............................................36"  (nominal)
Distance Ram Face to Die Face ..................54"
Distance Between Tie Rods  (4)..................  27" vertical x  27" horizontal
Main Ram Diameters (1).............................  24" (nominal)
Advance / Return Piston Diameters (2)....... 6 1/2" (nominal)
Tie Rod Diameters (4)................................. 6"  (nominal)
Distance Floor to Press Center-line............. 36" (nominal)

Stem System;
Diameter.......................................................   4"
Length..........................................................  17" (without nose piece)
Material........................................................  H 13
Mounting System........................................ (4) Bolt Locking Ring
Nose Piece;
Diameter.......................................................4 1/8" (nominal)
Length..........................................................2"
Material........................................................Inconel
Mounting System......................................... (4) Bolt

Container System:
Billet Diameter.......................................4"  (maximum)
Billet Length (maximum).......................14 1/2"
Billet Loading Clearance.......................18"
Container Diameter (outside)................22"
Container Length...................................16"
Container Heating System.....................Electric Resistance Bands / Rods
Operating Temperature ........................1050 Deg F.   (maximum)
Liner Diameter  (outside) .....................9 1/2"   (nominal)
Liner Bore ............................................4 1/4"
Liner Length..........................................16"
Liner Material .......................................H13

Container Housing System;
Travel Mechanism..................................Dual Hydraulic Cylinders
Travel Distance .....................................22"  (nominal)
Guide / Alignment System .......................Adjustable Gibbing with Bronze Liners
Container Mounting System.....................Circumferential Alignment Key with Locking Steps
Die Face Sealing Force  ..........................70 Tons @ 2,895 PSI
Breakaway Force (Opening)...................100 Tons @  2,895 PSI

Die System:
Die Holder / Backer Diameter  (outside)...... 7"/ 10"/ 11" (nominal)
Die Holder Height..........................................3 1/2"
Die Diameter.................................................3" (with existing holders)
Die Stack Height...........................................11" (maximum)
Die Stack Retainer System...........................Captivating Steps with Cross-Pin.
Die Shuttle System;
Shuttle Type...........................................(3) position / Horizontal Slide / Hydraulic Cylinder Powered
Slide Alignment System .......................Adjustable Gibbs with (4) Bronze Wear Inserts.
Die Holder Mounting Method ................Drop-In Breach with Locking Pin
Slide Support System.............................Replaceable Bronze Thrust Plate
Shuttle Stroke........................................30"  (nominal)
Index Rate..............................................20 Seconds (nominal)
Billet Loading System;
Type of System ......................................Ramp Feed with Lower Swing-Up Mechanism and Pneumatic Clamping
Actuation Method....................................Hydraulic Cylinder
Loading Cycle Time................................45 Seconds / Billet (nominal)

Equipped With:
Technical Support Documentation.
Two (2) Die Holders

Overall Dimensions: 8ft F-B  x  24ft L-R x  12ft  High (approx.)
Weight: 54,000 Lbs.  (estimated)
F.O.B...................Casa Grande, Arizona
