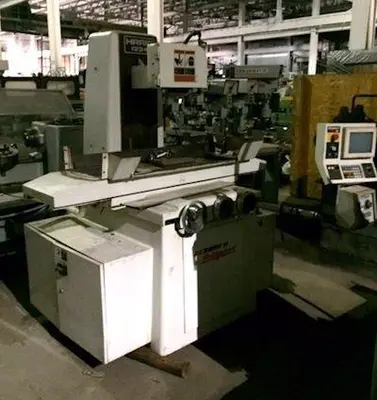

HARIG BRIDGEPORT EZ SURF II 12" X 24" CNC SURFACE GRINDER
| Control | CNC (Bridgeport BPCG) | CNC (Bridgeport BPCG) |
Specifications:
Table Size: 12" x 24"
Distance Between Table & Grinding Wheel: 14"
Hydraulic X-Axis Table Travel: 28"
Handfeed X-Axis Table Travel: 24"
X-Axis Traverse Rate: 36 - 840 IPM
X-Axis Jog Rate: 36 - 240 IPM
Y-Axis Vertical Travel Ball Screw: 20"
Y-Axis Feed Min. Increment: .0001"
Y-Axis Feed Rate up to: 100 IPM
Y-Axis Jog Mode Switchable: 0.0001, 0.001, 0.01, 0.1 Steps
Z-Axis Table Crossfeed Travel Ball Screw: 14"
Z-Axis Feed Rate up to: 100 IPM
Z-Axis Programmable Increment Min.: .0001"
Max. Spark Out Passes: 0-999
Grinding Wheel Diameter x Width: 12" x 1.5"
Grinding Wheel Bore: 3"
Grinding Wheel 2 speed: 1460 & 1770 rpm
Grinding Wheel Motor: 5hp
Bridgeport BPCG Control
12" X 24" Walker Fine Line Chuck
Hydraulic Table Traverse
Cross & Vertical Axes
Conversational MDI for Form & Step Grinding
MDI Set-Up Teach Program
Slot & Form Creep Feed Grinding
Two-Axis Linear Circular Interpolation
Electroncs Handwheels on Y & Z Axis
Ballscrews on Y & Z Axis
Manual, Semi or Fully Automatic
Coolant System
Lubrication System
Wheel Guard
230-460 Volts/3 Phase/ 60Hz
