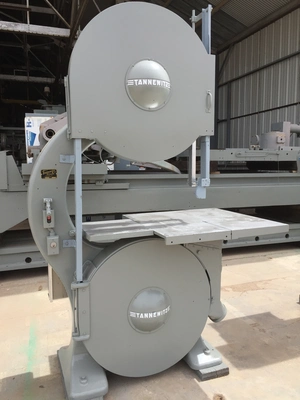

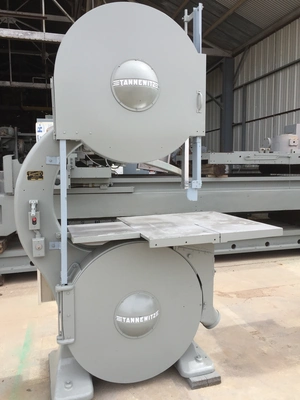

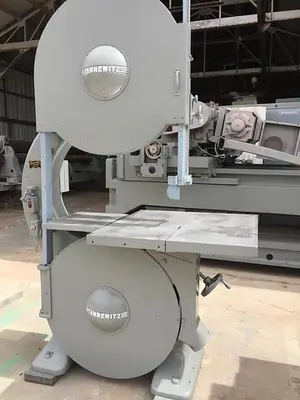

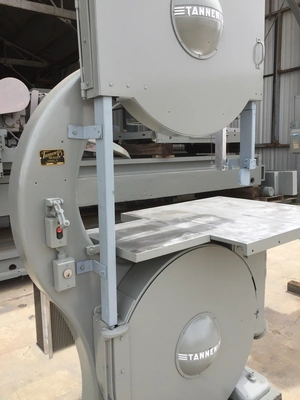

36” Tannewitz Mdl. GH Vert. Band Saw
Overview
Description
RE 3990 USED TANNEWITZ GH 36” VERTICAL BANDSAW SN.15627
Throat Width.........................................36”
Throat Height........................................36”
Pass Line Height.....................................30”
Wheel Diameter.......................................36”
Blade Width..........................................1.75-2”
Blade Length.........................................21’1/5”
Blade Speed..........................................VARIABLE
Blade Tension........................................MANUAL
Wheel Type........................................... Heavy-Duty Balanced Steel Disc

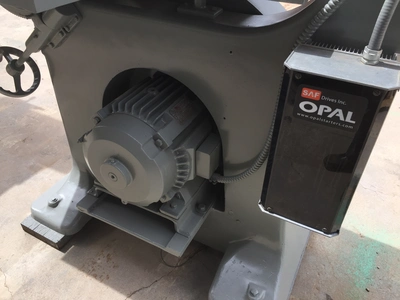

Main Drive Motor.....................................5HP 480 VOLTS 7.1 AMPS 3 PHASE 60Hz
Equipped with OPAL SAF starter MDL DCI-20-N12
Electrical characteristics......................input 200-600V 60Hz 20A 1 PHASE output0-600vdc
Overall Dimensions................................... .6' L-R x 3' F-B x 120"
Weight............................................... 4,500 lbs. (shipping weight)
F.O.B.............................Casa Grande
