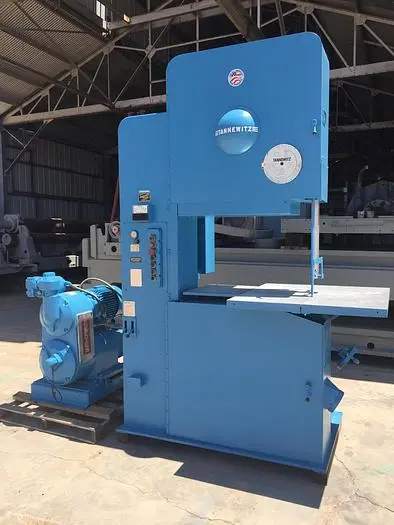

Tannewitz Mdl. GVTNE Vert. Band Saw #4041

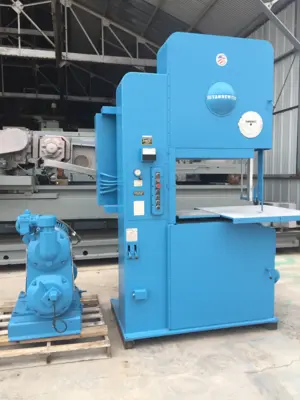

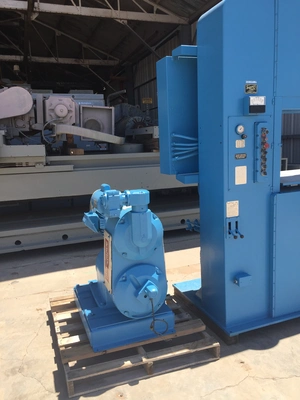

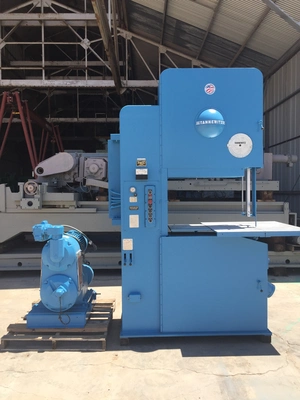

(1) Used 36" Tannewitz Model GVTNE Vertical Band Saw; S/N 84016
Specifications:
Blade Speed (Infinitely Variable)...........70-15,000 F.P.M.
Blade Tension Control.......................Hydraulic
Size, Wheel Diameter........................36"
Under Guide Capacity........................20"
Throat Capacity.............................35 1/2"
Base Construction...........................Welded Steel
Band Width Capacity.........................1/8" to 1 1/2"
Band Length.................................18'7" min - 20' max

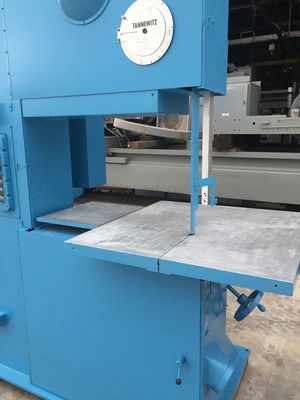

Table Size..................................36" x 37"
Auxiliary Table Size........................16" x 19"
Table Tilting...............................45° Right, 5° Left
Upper Wheel Adjustment......................5"
Wheel Type..................................Heavy Duty Balanced Steel Disc
Hydraulic Adjusted Guide Post....................1 1/4" x 2 1/4"
Table Height................................42" (From Floor)
Horsepower..................................15 HP
Motor Drive.................................Belt
Electrical Characteristics..................220/440 VAC / 3 Phase / 60 Cycle
Equipped With:
TANNEWITZ High Speed Pressed Steel Wheels w/Replaceable Tires And Rims
Heavy Duty High Speed Blade Guides

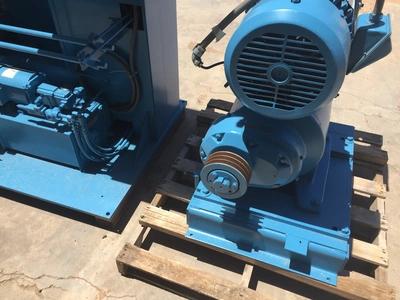

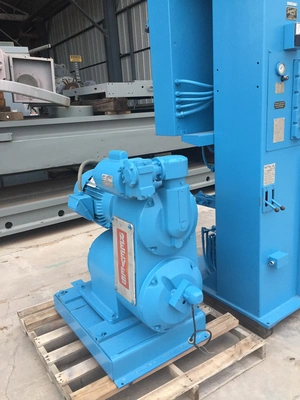

U.S. ELECTRICAL Variable Speed Drive

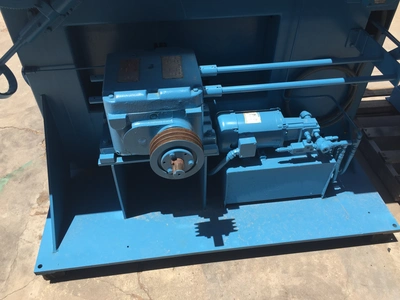

DRIVE-ALL Model DAF244 3-Speed Geared Transmission
Electric/Hydraulic Wheel Brakes

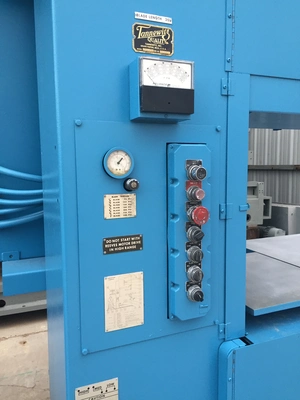

Complete Electrical Controls
Operator's Manual (optional from manufacturer)
Overall Dimensions..........................8' L-R x 5' F-B x 108" Height
Weight......................................5,000 lbs. (est.)
F.O.B.......................................Casa Grande, AZ
