USED 2006 SUPERIOR BOILER 8-5S-11000

OVERVIEW

NOTE: TWO (2) UNITS AVAILABLE - Matching pair from same facility

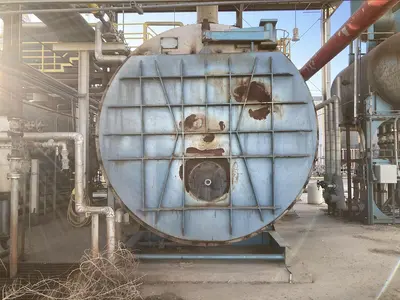

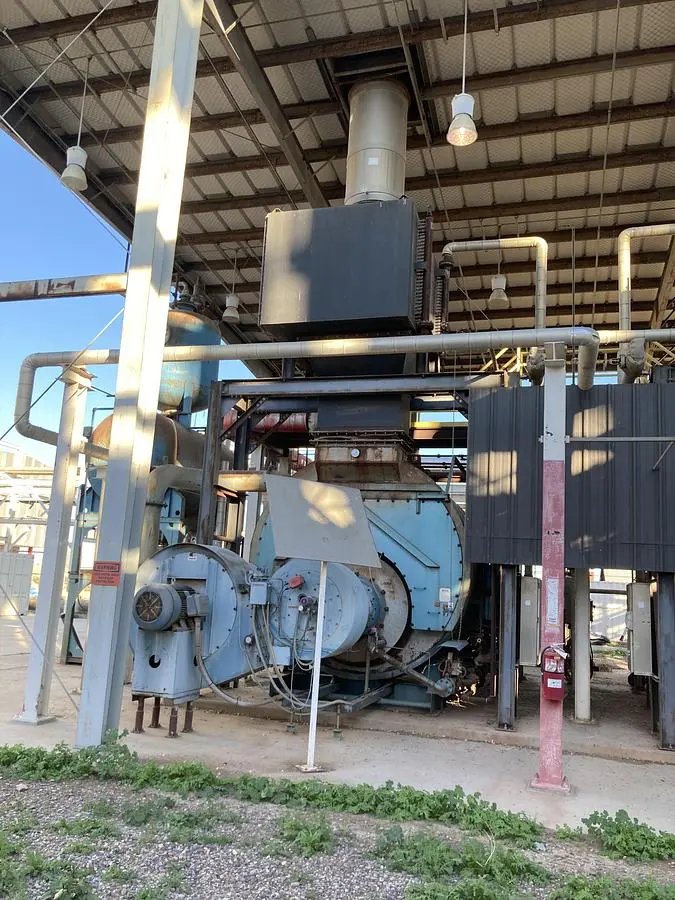

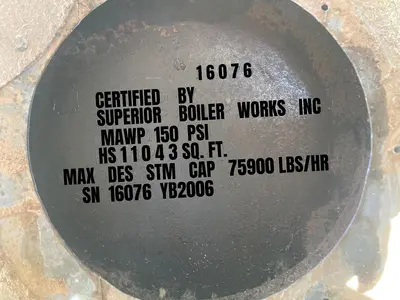

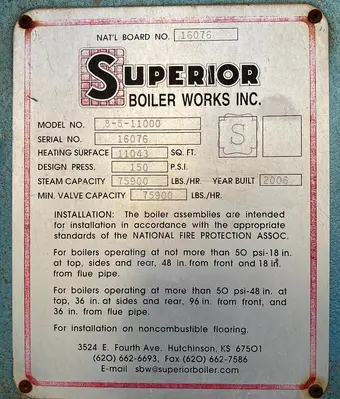

Superior Boiler Works Package Steam Boiler - Model 8-5S-11000, National Board Number 16076, Serial Number 16076, Year Built 2006, Maximum Allowable Working Pressure 150 PSI, Boiler Horsepower 2,200 HP, Certified by Superior Boiler Works Inc. Superior Boiler Works Model 8-5S-11000 packaged horizontal firetube steam boiler with 11,043 square feet heating surface removed from operating facility. This commercial-grade package boiler features 75,900 lbs/hr maximum design steam capacity with 150 PSI MAWP design pressure and 2,200 boiler horsepower rating. Complete packaged system includes burner assembly, forced draft fan, combustion controls, Webster burner management system, feedwater controls, and all safety trim. Built to ASME Section I specifications and National Fire Protection Association standards. Ideal for industrial manufacturing, institutional facilities, large commercial buildings, or any high-demand steam generation application requiring reliable continuous operation.

EQUIPMENT SPECIFICATIONS

Boiler Model Information:

Manufacturer: Superior Boiler Works Inc.
Location: 3524 E. Fourth Ave., Hutchinson, KS 67501
Model Number: 8-5S-11000
National Board No: 16076
Serial Number: 16076
Year Built: 2006
Boiler Horsepower: 2,200 HP
Configuration: Package firetube steam boiler

Performance Ratings:

Boiler Horsepower: 2,200 HP
Heating Surface: 11,043 sq. ft.
Design Pressure: 150 PSI
Maximum Allowable Working Pressure: 150 PSI
Steam Capacity: 75,900 lbs/hr
Minimum Safety Valve Capacity: 75,900 lbs/hr
Design Type: Horizontal firetube package boiler
ASME Code: Section I Power Boilers

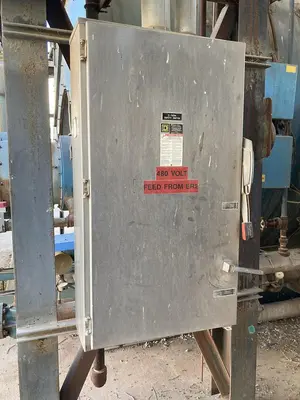

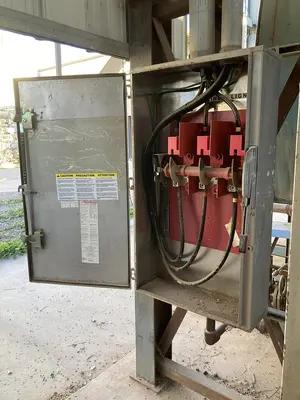

Electrical Specifications:

Primary Voltage: 480 VAC
Configuration: 3-Phase

Combustion System:

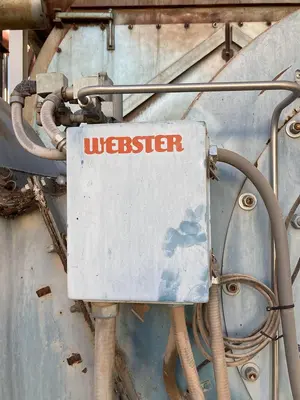

Burner Management: Webster controls

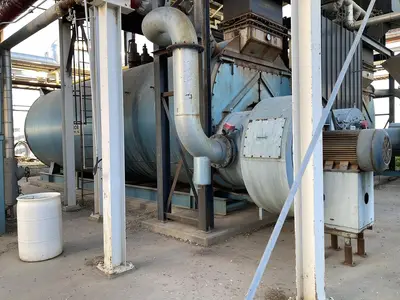

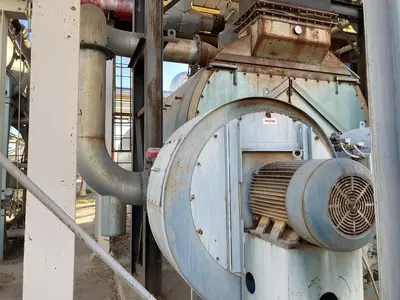

Forced Draft Fan: Included
Combustion Air System: Complete
Safety Controls: Multiple interlocks and safety devices

KEY FEATURES & BENEFITS

Superior Boiler Works Quality:

Premium USA boiler manufacturer
2006 manufacture
Hutchinson, Kansas facility
Packaged boiler system
ASME Section I certified
Heavy-duty commercial construction
Professional installation quality

High Capacity Performance:

2,200 HP boiler capacity
75,900 lbs/hr steam generation
11,043 sq. ft. heating surface
150 PSI maximum working pressure
Large heating surface area
High-volume steam production
Continuous duty rated

Complete Package System:

Factory assembled and tested
Burner system installed
Forced draft combustion air fan
Webster burner management controls
Complete combustion controls
Feedwater control system
All safety devices and trim
Ready for field installation

Safety & Compliance:

150 PSI ASME design pressure
National Board certified
Built to NFPA standards
Multiple safety interlocks
Safety valve capacity rated
Code-compliant installation
Professional engineering

SYSTEM COMPONENTS

Main Boiler:

Superior Boiler Works 8-5S-11000
2,200 HP capacity
11,043 sq. ft. heating surface
150 PSI MAWP
Horizontal firetube design
Complete with all trim
Factory insulated
All safety controls included

Combustion System:

Burner assembly
Forced draft fan
Combustion air controls
Webster burner management system
Flame safeguard controls
Fuel train components
Safety interlocks
Ignition system

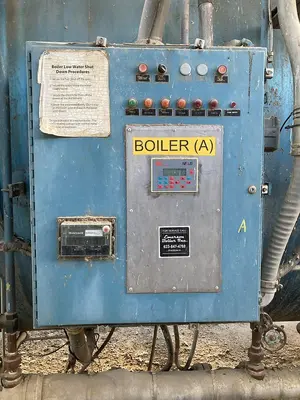

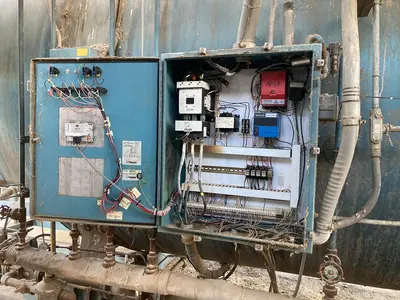

Control Systems:

Webster control system
Burner management controls
Feedwater level controls

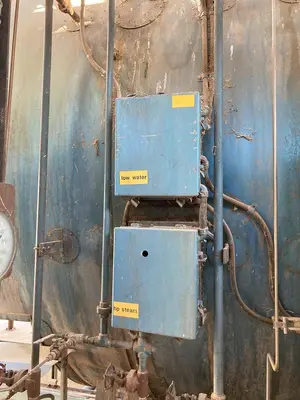

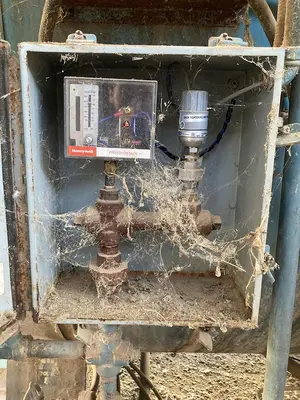

Low water cutoff
High pressure limit
Operating pressure controls
Safety interlocks
Monitoring systems

Feedwater Controls:

Feedwater control system
Level control components
Low water protection
Feedwater pumps (configuration per nameplate)
Control panels

Safety & Instrumentation:

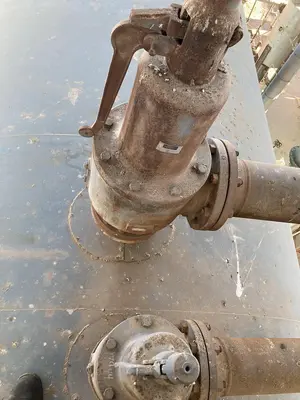

Safety relief valves
Pressure gauges
Temperature sensors
Safety interlocks
Emergency shutdown capability
Pressure relief protection
National Board certified components

SPECIFICATIONS SUMMARY

Boiler:

Manufacturer: Superior Boiler Works Inc.
Location: Hutchinson, KS
Model: 8-5S-11000
National Board No: 16076
Serial: 16076
Year: 2006
Capacity: 2,200 HP
Heating Surface: 11,043 sq. ft.
Max Pressure: 150 PSI
Steam Capacity: 75,900 lbs/hr
Min Valve Capacity: 75,900 lbs/hr
Type: Horizontal firetube package boiler
Origin: USA

Electrical:

Primary: 480 VAC
Phase: 3-Phase

Controls:

Burner Management: Webster
Combustion Controls: Complete
Feedwater Controls: Included
Safety Systems: Multi-level interlocks

Physical:

Configuration: Packaged horizontal firetube
Design: Multi-pass firetube
Construction: ASME Section I
Insulation: Factory insulated jacket
Mounting: Structural steel base

ADDITIONAL INFORMATION

Condition: Used - 2006 Manufacture

Manufacturer: Superior Boiler Works Inc.

Model: 8-5S-11000

National Board Number: 16076

Serial Number: 16076

Year Built: 2006

Boiler Horsepower: 2,200 HP

Heating Surface: 11,043 sq. ft.

Maximum Allowable Working Pressure: 150 PSI

Design Pressure: 150 PSI

Steam Capacity: 75,900 lbs/hr

Minimum Safety Valve Capacity: 75,900 lbs/hr

Primary Voltage: 480 VAC/3-Phase

Configuration: Complete packaged steam boiler with burner, forced draft fan, Webster controls, feedwater system

Included Equipment: Boiler, burner assembly, forced draft fan, Webster burner management system, combustion controls, feedwater controls, safety devices, all trim and instrumentation

Burner Controls: Webster burner management system

Safety Systems: Multiple interlocks, safety valves, low water cutoff, high pressure limit

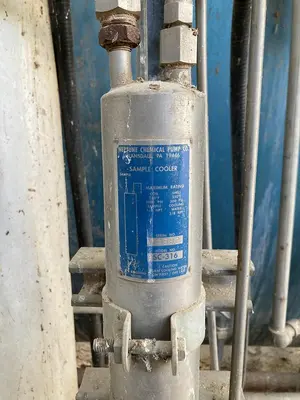

Additional Components: Neptune Chemical Pump Co. sample cooler (Model SC-316, Serial 41589), forced draft fan assembly

Features: ASME Section I certified, National Board stamped, NFPA compliant installation, complete packaged system, ready for field installation, Webster controls, forced draft combustion, multiple safety systems

* Manufacturer: Superior Boiler Works Inc.
* Model Number: 8-5S-11000
* National Board No: 16076
* Serial Number: 16076
* Year Built: 2006
* Boiler Horsepower: 2,200 HP
* Configuration: Package firetube steam boiler
