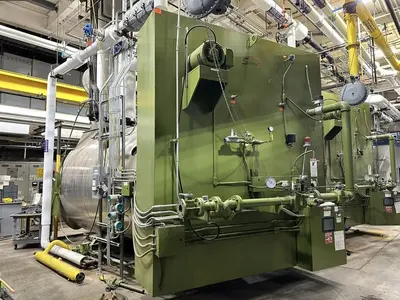

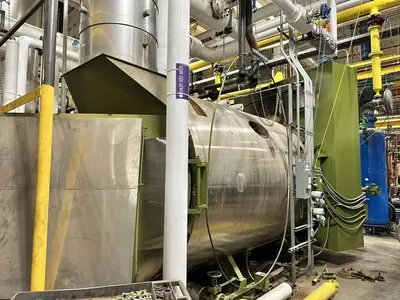

USED 2019 SELLERS 900HP-105E S-SERIES

OVERVIEW

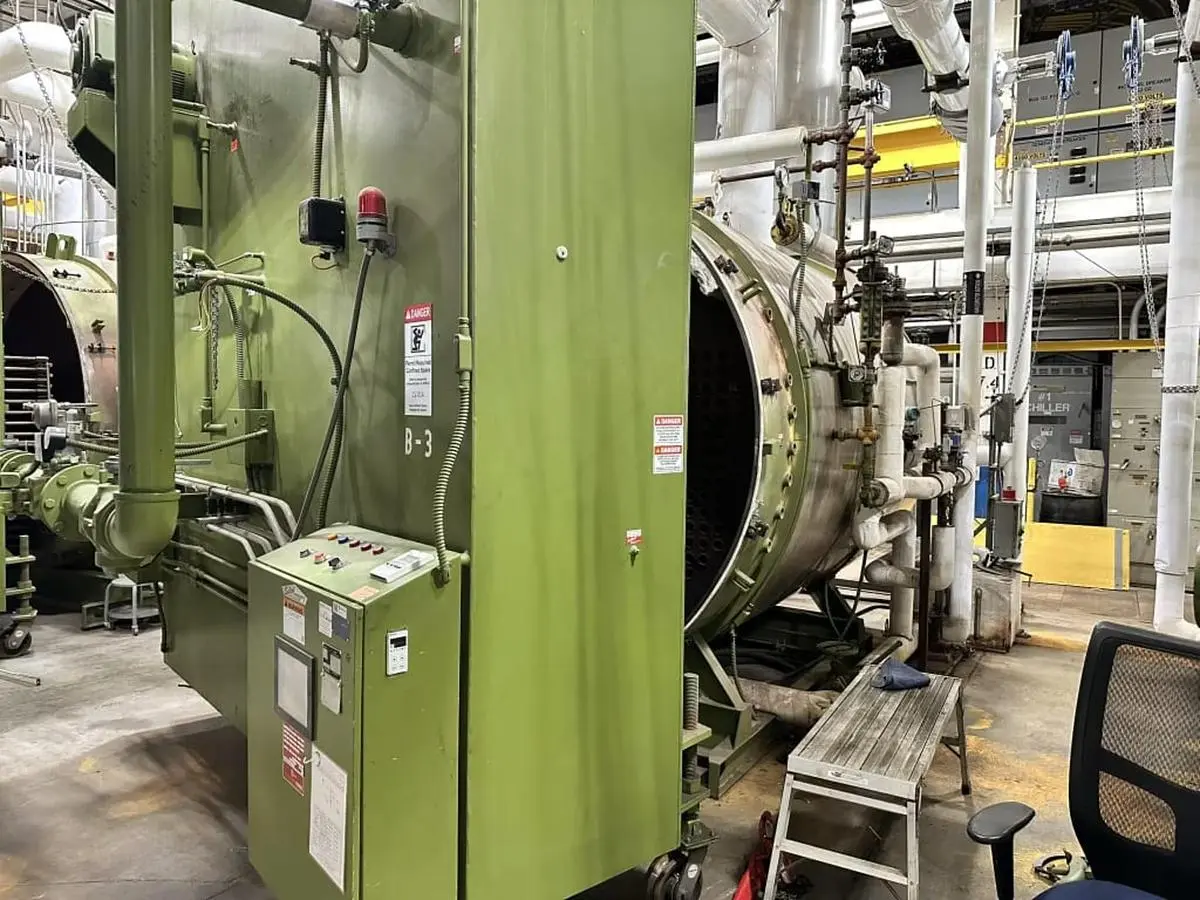

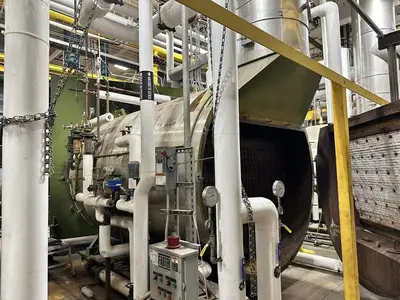

Sellers 900HP Immersion-Fired Steam Boiler with Advanced Controls - Model 900HP-105E S-Series, Natural Gas Fired, Electrical: 460V, Year: 2019, Manufacturer: Sellers Manufacturing Company. Sellers Model 900HP-105E S-Series high-capacity immersion-fired steam boiler with 900 boiler horsepower capacity removed from operating facility. This commercial-grade horizontal single-pass firetube boiler features 37,659,000 BTU/hour input (37.7 MMBtu) with 30,127,000 BTU/hour output (30.1 MMBtu). Immersion-fired design with advanced burner technology for exceptional efficiency and ultra-low emissions (30 PPM). 300 PSI ASME maximum design pressure with 31,050 lbs/hr steam generation capacity at 212°F. Modern Siemens PLC controls with large touchscreen operator interface and Fabtek Model 45201007C4CD3D.CSTM feedwater pump control panel with Siemens digital inline steam and feedwater flow meters. Recently inspected July 2024 with current certification. Ideal for hospitals, large manufacturing facilities, institutional buildings, food processing plants, commercial laundries, or any large-scale commercial/industrial application requiring high-volume reliable steam generation.

EQUIPMENT SPECIFICATIONS

Boiler Model Information:

Manufacturer: Sellers Manufacturing Company
Location: Danville, Kentucky USA
Model Number: 900HP-105E S-Series
Serial Number: 105545A
Year Built: 2019
Boiler Horsepower: 900 HP

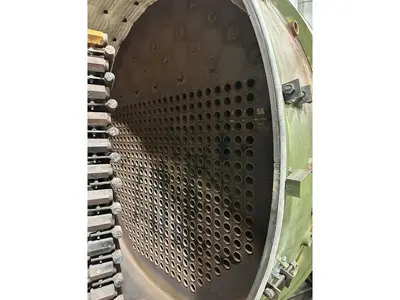

Configuration: Immersion-fired horizontal single-pass firetube

Performance Ratings:

Boiler Horsepower: 900 HP (nominal)
BTU Input: 37,659,000 BTU/hour (37.7 MMBtu)
BTU Output: 30,127,000 BTU/hour (30.1 MMBtu)
Steam Output: 31,050 lb/hr @ 212°F (900 BHP)
Maximum Design Pressure: 300 PSI
Working Pressure: 16 PSI (header pressure as configured)
Fuel Type: Natural Gas
Emissions: 30 PPM
Efficiency: High efficiency immersion-fired design

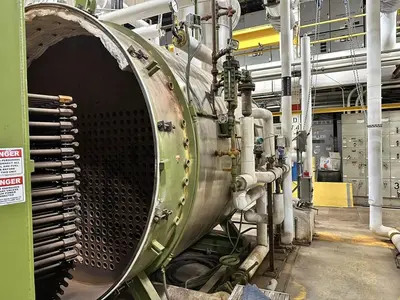

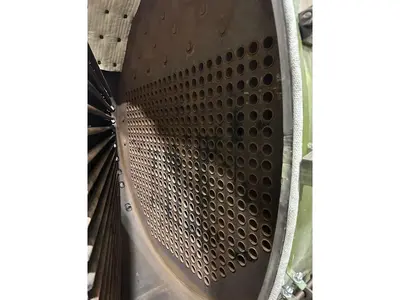

Design: Horizontal single-pass firetube
Water Capacity: 3,263 gallons
Water Weight: 23,116 lbs

Electrical Specifications:

Primary Voltage: (To be confirmed from nameplate)
Configuration: (To be confirmed from nameplate)
Feedwater Control Panel: 460V, 3-Phase, 60Hz (per Fabtek nameplate)

Burner & Controls:

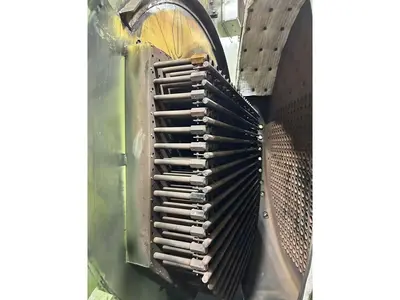

Burner Type: Immersion-fired natural gas burner
Control System: Sellers touchscreen PLC operator interface
Process Controller: Siemens digital controller
Display: Large touchscreen HMI panel
Safety Controls: Multiple safety systems and interlocks
Monitoring: Real-time performance monitoring
Alarms: Multiple safety interlocks and alarms
Certification: Recent inspection July 2024

Feedwater Control Panel:

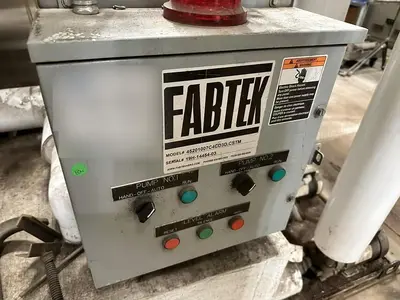

Control Panel: Fabtek Model 45201007C4CD3D.CSTM
Configuration: Duplex pump control capability (pumps not included)
Power: 460V, 3-Phase, 1 HP per pump capacity
Frequency: 60 Hz
Controls: Hand-Off-Auto selector switches for each pump
Monitoring: Reset and level alarm indicators
Manufacturer: Boulav Fabrication, Inc. (UL/CUL approved)
Manufacturing Date: 09-05-19
Made In: USA

Flow Monitoring:

Steam Flow Meter: Siemens digital inline meter with display
Feedwater Meter: Siemens digital inline meter with "FEED WATER" display
Real-time flow monitoring capability
Process optimization and performance tracking

KEY FEATURES & BENEFITS

Sellers Manufacturing Quality:

Premium USA boiler manufacturer (Danville, Kentucky)
Modern 2019 manufacture
Immersion-fired design for superior efficiency
Horizontal single-pass firetube configuration
Heavy-duty commercial construction
Factory tested and certified
Professional installation quality
State-of-the-art engineering

Immersion-Fired Design Advantages:

Superior heat transfer efficiency
Low emissions performance (30 PPM)
Uniform heat distribution
Reduced fuel consumption
Lower operating costs
Fast steam generation response
Excellent turndown capability
Minimal maintenance requirements

High Capacity Performance:

900 HP steam generation
37.7 MMBtu input rating
30.1 MMBtu output rating
31,050 lbs/hr steam capacity
300 PSI maximum design pressure
Large 3,263 gallon water capacity
Ideal for high-demand applications
Natural gas fired

Advanced Control System:

Modern Siemens PLC controls
Large touchscreen operator interface
Real-time performance monitoring
Digital steam flow monitoring
Digital feedwater flow monitoring
Automated safety interlocks
Easy operation and diagnostics
Energy management capabilities

Complete Turnkey System:

Boiler with burner installed
Fabtek feedwater pump control panel
Siemens digital flow meters (steam & feedwater)
Complete control panels
All safety devices and interlocks
Pressure instrumentation
Control wiring complete
Recently inspected (July 2024)
Ready for integration into existing steam system

Safety & Compliance:

300 PSI ASME design pressure
Multiple safety systems and interlocks
Audible and visual alarms
Code-compliant installation
Current inspection certification (July 2024)

SYSTEM COMPONENTS

Main Boiler:

Sellers 900HP-105E S-Series
900 HP capacity
Immersion-fired horizontal single-pass
Natural gas burner assembly
Complete with all trim
Factory insulated
All safety controls included
Recently inspected 2024

Control Systems:

Sellers touchscreen PLC operator interface
Siemens process controller
Large color HMI display
Real-time monitoring and diagnostics
Automated control sequences
Safety interlocks
Alarm management
Energy optimization

Feedwater Control Panel:

Fabtek Model 45201007C4CD3D.CSTM
Duplex pump control capability
460V/3-Phase/60Hz power
1.0 HP per pump motor (pumps not included)
Hand-Off-Auto controls for each pump
Level alarm and reset functions
Automatic alternation capability
Ready for pump connection

Flow Monitoring:

Siemens digital steam flow meter
Siemens digital feedwater flow meter
Real-time flow display
Accurate measurement and monitoring
Process optimization capability
Performance tracking
Maintenance planning data

Safety & Instrumentation:

Multiple safety control systems
Pressure relief valves
Pressure gauges
Temperature sensors
Safety interlocks
Emergency shutdown capability

SPECIFICATIONS SUMMARY

Boiler:

Manufacturer: Sellers Manufacturing Company
Location: Danville, Kentucky USA
Model: 900HP-105E S-Series
Serial: 105545A
Year: 2019
Capacity: 900 HP
BTU Input: 37,659,000 BTU/hr (37.7 MMBtu)
BTU Output: 30,127,000 BTU/hr (30.1 MMBtu)
Steam Output: 31,050 lb/hr @ 212°F
Max Pressure: 300 PSI
Header Pressure: 16 PSI (as configured)
Type: Immersion-fired horizontal single-pass firetube
Fuel: Natural Gas
Emissions: 30 PPM
Water Capacity: 3,263 gallons
Water Weight: 23,116 lbs
Origin: USA

Electrical:

Primary: (To be confirmed from nameplate)
Feedwater Control Panel: 460V/3-Phase/60Hz (per Fabtek nameplate)

Feedwater Controls:

Manufacturer: Fabtek (Boulav Fabrication, Inc.)
Model: 45201007C4CD3D.CSTM
Voltage: 460V/3-Phase/60Hz
Pump Motor Capacity: 1.0 HP each (control panel only, pumps not included)
Configuration: Duplex pump control capability
Controls: Hand-Off-Auto per pump
Certification: UL/CUL approved
Manufactured: 09-05-19

Control System:

Main Controller: Sellers PLC with touchscreen HMI
Process Controller: Siemens
Flow Meters: Siemens digital (steam & feedwater)
Display: Large color touchscreen
Safety Systems: Multi-level interlocks and alarms

Physical:

Configuration: Horizontal firetube boiler
Design: Single-pass immersion-fired
Construction: Carbon steel pressure vessel
Insulation: Factory insulated jacket
Mounting: Structural steel base

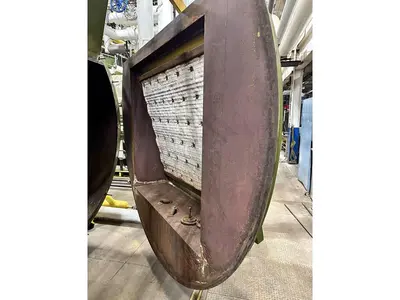

Access: Front-mounted burner access door

ADDITIONAL INFORMATION

Condition: Used - 2019 Manufacture, Recently Inspected July 2024

Manufacturer: Sellers Manufacturing Company

Location: Danville, Kentucky USA

Model: 900HP-105E S-Series

Serial Number: 105545A

Year Built: 2019

Boiler Horsepower: 900 HP

BTU Input: 37,659,000 BTU/hour (37.7 MMBtu)

BTU Output: 30,127,000 BTU/hour (30.1 MMBtu)

Steam Output: 31,050 lb/hr @ 212°F

Maximum Design Pressure: 300 PSI

Working Pressure: 16 PSI (header configuration)

Fuel Type: Natural Gas

Emissions: 30 PPM

Design: Immersion-fired horizontal single-pass firetube

Primary Voltage: (To be confirmed from nameplate)

Configuration: Boiler with feedwater control panel and digital flow monitoring

Included Equipment: Boiler, Fabtek feedwater pump control panel, Siemens flow meters, all controls and instrumentation

Water Capacity: 3,263 gallons

Water Weight: 23,116 lbs

Recent Inspection: July 2024 (State of Georgia Certificate of Inspection by XL Insurance America)

Estimated Boiler Weight: 35,000-40,000 lbs (estimated based on capacity)

Estimated System Weight: 45,000-50,000 lbs (estimated, complete with controls and accessories)

Features: Modern PLC controls, touchscreen HMI, digital flow monitoring, duplex feedwater system, low emissions, high efficiency immersion-fired design, recently inspected and certified

* Manufacturer: Sellers Manufacturing Company
* Model Number: 900HP-105E S-Series
* Serial Number: 105545A
* Year Built: 2019
* Boiler Horsepower: 900 HP
