OVERVIEW

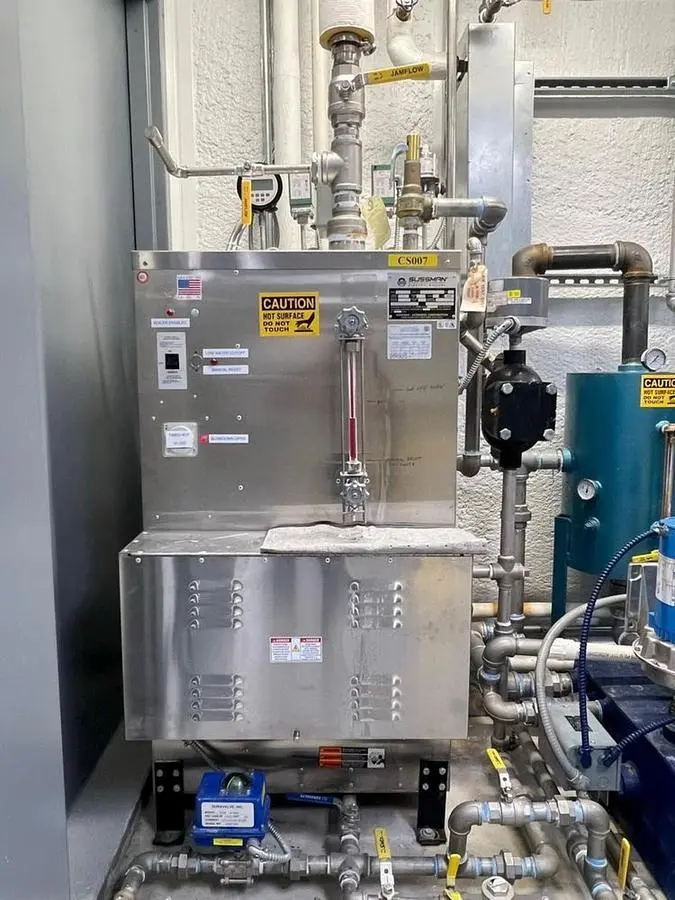

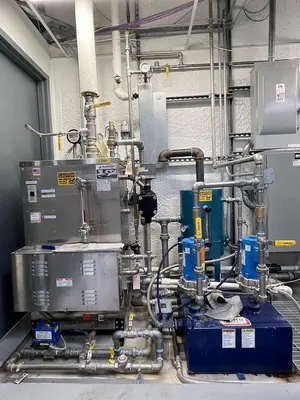

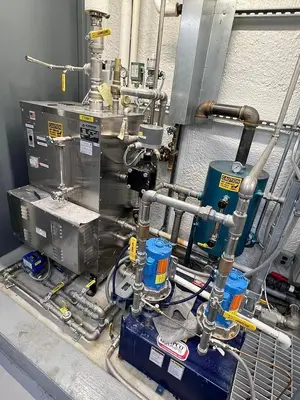

Sussman Stainless Steel Electric Steam Boiler, Model SSB138, Serial# SSB1202531-Z18, National Board# 117964. Approximate 138kw, 3/60/480V, with tank & condensate return. Sussman Model SSB138 stainless steel electric steam boiler removed from operating facility. This commercial-grade steam generator features 138 kW electric input capacity with stainless steel pressure vessel construction. ASME Code Section IV certified pressure vessel built to 100 PSIG maximum allowable working pressure, factory trimmed for 15 PSIG operating pressure. 480V 3-phase 167 amp power supply with 120VAC control voltage. UL Listed construction with National Board registration #117964. Manufactured by Sussman-Automatic Corporation in Long Island City, New York. Complete system includes stainless steel boiler (CS007), condensate return tank, dual Shipco DSS GNU feedwater pumps (9 GPM @ 25 PSIG), and integrated controls. Ideal for hospitals, laundries, food processing, pharmaceutical manufacturing, commercial buildings, institutional facilities, or any application requiring clean electric steam without combustion emissions or gas piping.
EQUIPMENT SPECIFICATIONS

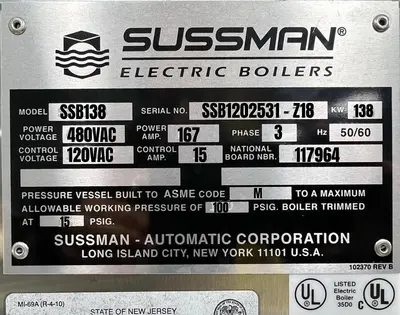

Model Information:
Manufacturer: Sussman-Automatic Corporation
Model Number: SSB138
Serial Number: SSB1202531-Z18
Country of Origin: USA (Long Island City, New York)
National Board Number: 117964
Boiler Designation: CS007
Performance Ratings:
Kilowatt Input: 138 kW
Maximum Allowable Working Pressure: 100 PSIG
Operating Pressure (Boiler Trimmed At): 15 PSIG
ASME Code: Section IV (Code M)
Pressure Vessel Construction: Stainless steel ASME stamped
Electrical Specifications:
Power Voltage: 480 VAC
Frequency: 50/60 Hz
Phase: 3-Phase
Power Amperage: 167 Amps
Control Voltage: 120 VAC
Control Amperage: 15 Amps
Electrical Connection: Hardwired
Certification & Compliance:
ASME Code: Section IV (Code M)
National Board Registration: Yes (NB# 117964)
UL Listed: Yes (Electric Boiler 3500)
Manufacturer: Sussman-Automatic Corporation
State Registration: New Jersey (MI-69A R-4-10)

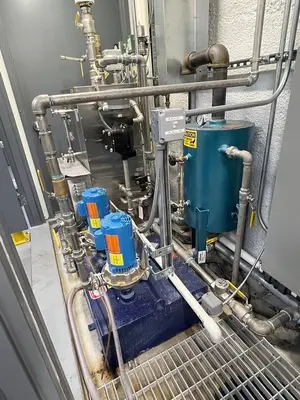

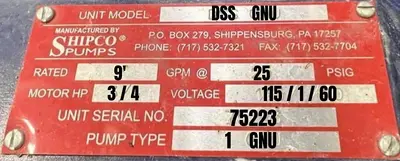

Feedwater Pump System:

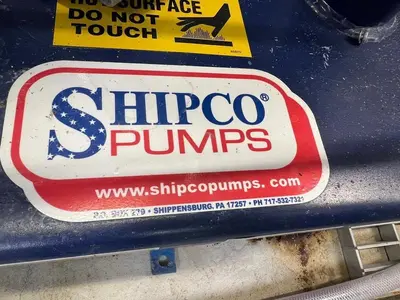

Manufacturer: Shipco Pumps (Shippensburg, PA)
Model: DSS GNU
Quantity: 2 Pumps (duplex system)
Flow Rate: 9 GPM each @ 25 PSIG
Motor: 3/4 HP each
Voltage: 115V/1-Phase/60Hz
Pump Type: 1 GNU
Serial Numbers: 75223 (visible)
Configuration: Dual redundant pumps for reliability
Included Equipment:
Sussman SSB138 stainless steel electric steam boiler
Condensate return tank
Dual Shipco DSS GNU feedwater pumps (2 x 9 GPM)
Integrated control panel with indicators
Low water cutoff protection
High pressure cutoff protection
Safety and operating controls
Pressure gauges and temperature controls
Feedwater connections and valves
Steam outlet connections
Complete piping manifold system
Control Features:
Front-mounted control panel on boiler
Safety interlocks and alarms
Pressure and temperature monitoring
Automatic water level control
Dual pump alternation system
Warning labels: "CAUTION HOT SURFACE DO NOT TOUCH"
KEY FEATURES & BENEFITS
Stainless Steel Advantages:
Stainless steel pressure vessel construction
Superior corrosion resistance vs. carbon steel
Longer service life in steam applications
Clean steam for pharmaceutical/food use
Reduced maintenance requirements
Better water quality tolerance
Professional-grade construction
Electric Steam Advantages:
Zero emissions - no combustion products
No gas piping or fuel storage required
No flue or chimney requirements
Quiet operation without burner noise
Quick startup and response time
Precise steam pressure control
Minimal maintenance vs. fuel-fired
Clean steam for food/pharmaceutical applications
Nearly 100% efficient energy conversion
Suitable for locations without gas service
Sussman Quality Features:
ASME Code Section IV certified design
National Board registered and stamped
UL Listed for safety compliance
Compact vertical footprint
Multiple immersion heating elements
Integrated electrical controls
Professional commercial-grade construction
Built in USA (Long Island City, NY)
Stainless steel construction
Shipco Pump System:
Dual redundant pumps for reliability
9 GPM capacity at 25 PSIG each
Automatic alternation between pumps
3/4 HP motors
Commercial-grade construction
Lead/lag pump configuration
Proven Shipco reliability
Operational Benefits:
138 kW efficient electric heating
15 PSIG operating pressure (100 PSIG MAWP)
Suitable for low-pressure steam applications
Rapid steam generation
Minimal installation requirements
Low maintenance operation
Clean room compatible
No combustion air requirements
Integrated condensate return system
Complete turnkey package
Complete System Package:
Stainless steel boiler
Condensate tank
Dual feedwater pumps
All controls and safeties installed
Ready for connection to steam distribution
Factory-coordinated components
Single-source system
SPECIFICATIONS SUMMARY
Boiler:
Model: Sussman SSB138
Serial: SSB1202531-Z18
Designation: CS007
Input: 138 kW electric
MAWP: 100 PSIG
Operating: 15 PSIG
ASME: Section IV (Code M)
NB#: 117964
Material: Stainless steel
Electrical:
Primary: 480V/3-Phase/50-60Hz
Amperage: 167 Amps
Control: 120 VAC, 15 Amps
Feedwater Pumps:
Manufacturer: Shipco Pumps
Model: DSS GNU
Quantity: 2 (duplex)
Flow: 9 GPM @ 25 PSIG each
Motor: 3/4 HP, 115V/1/60
Physical:
Material: Stainless steel pressure vessel
Type: Vertical electric
Mounting: Floor
Cabinet: Stainless steel enclosure
Certification: ASME, UL, National Board
Origin: USA
System Components:
Stainless steel electric boiler
Condensate return tank
Dual Shipco feedwater pumps
Integrated control panel
Safety controls and interlocks
Pressure and temperature gauges
Feedwater connections and manifold
ADDITIONAL INFORMATION
Condition: Used - Operating Facility Removal
Manufacturer: Sussman-Automatic Corporation
Location: Long Island City, New York USA
Model: SSB138
Serial Number: SSB1202531-Z18
Boiler ID: CS007
Kilowatt Input: 138 kW
Maximum Allowable Working Pressure: 100 PSIG
Operating Pressure: 15 PSIG (factory trimmed)
Power Requirements: 480V, 3-Phase, 50/60 Hz, 167 Amps
Control Voltage: 120 VAC, 15 Amps
ASME Code: Section IV (Code M)
National Board Number: 117964
Certification: ASME, UL Listed (3500), National Board
Construction Material: Stainless Steel
Configuration: Vertical electric steam generator
Feedwater Pumps: Dual Shipco DSS GNU (9 GPM @ 25 PSIG each)
Included: Boiler, tank, dual pumps, controls, complete system
Estimated Weight: 1,200-1,800 lbs (complete system)
* Manufacturer: Sussman-Automatic Corporation
* Model Number: SSB138
* Serial Number: SSB1202531-Z18
* National Board Number: 117964
