OVERVIEW

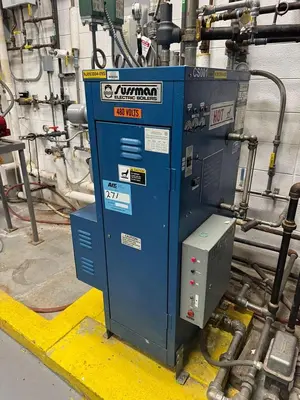

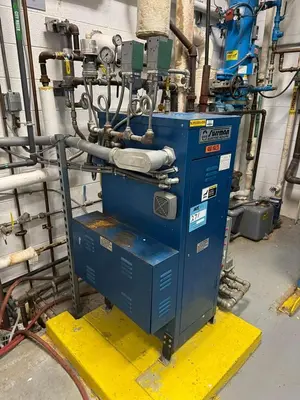

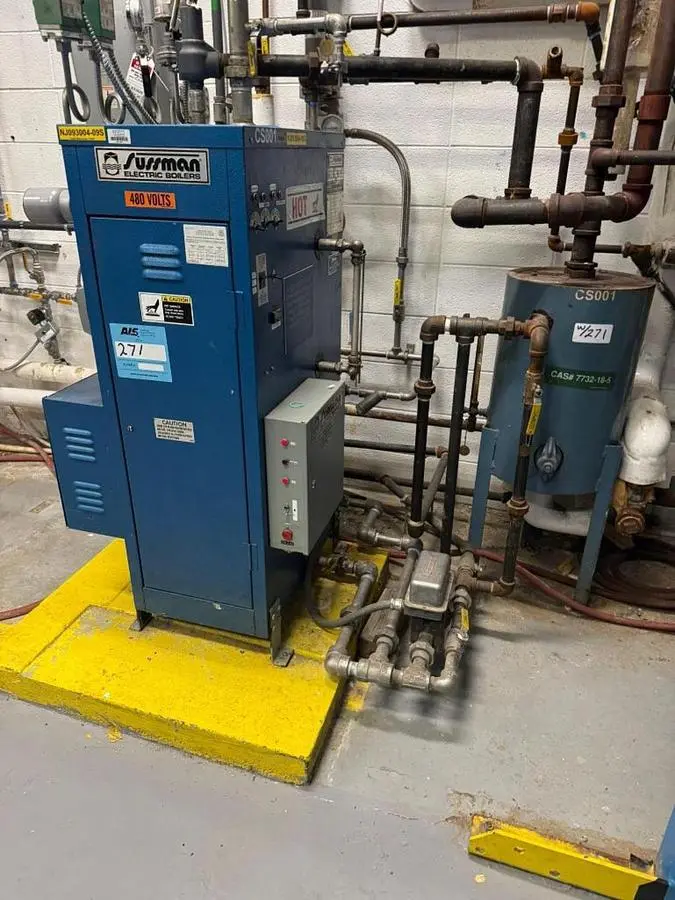

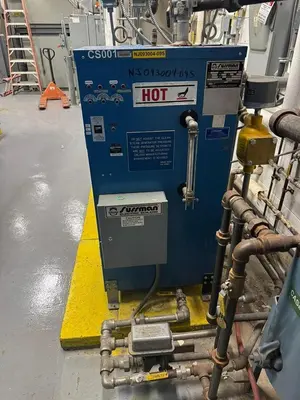

Sussman Electric Steam Boiler, Model SSB100, Serial# N6-13488, National Board# 16895 Approximate 102kw, 3/60/480V, with tank & condensate return. Sussman Model 998-100 electric steam boiler removed from operating facility. This compact commercial-grade steam generator features 102 kW electric input capacity. ASME Code Section IV certified pressure vessel built to 100 PSIG maximum allowable working pressure, factory trimmed for 30 PSIG operating pressure. 480V 3-phase 123 amp power supply with 120VAC control voltage. UL Listed construction with National Board registration #16895. Manufactured by Sussman-Automatic Corporation in Long Island City, New York. Complete system includes boiler, condensate return tank (CS001), and integrated controls. Ideal for hospitals, laundries, food processing, pharmaceutical manufacturing, commercial buildings, institutional facilities, or any application requiring clean electric steam without combustion emissions or gas piping.
EQUIPMENT SPECIFICATIONS

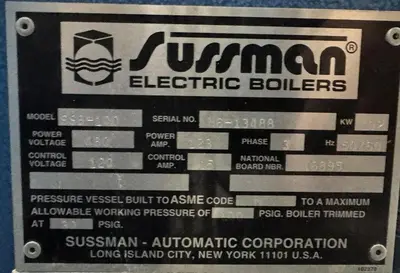

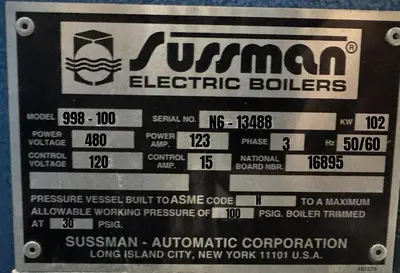

Model Information:
Manufacturer: Sussman-Automatic Corporation
Model Number: 998-100 (SSB100)
Serial Number: N6-13488
Country of Origin: USA (Long Island City, New York)
National Board Number: 16895
Performance Ratings:
Kilowatt Input: 102 kW
Maximum Allowable Working Pressure: 100 PSIG
Operating Pressure (Boiler Trimmed At): 30 PSIG
ASME Code: Section IV (Low Pressure Heating Boilers)
Pressure Vessel Construction: ASME stamped
Electrical Specifications:
Power Voltage: 480 VAC
Frequency: 50/60 Hz
Phase: 3-Phase
Power Amperage: 123 Amps
Control Voltage: 120 VAC
Control Amperage: 15 Amps
Electrical Connection: Hardwired
Certification & Compliance:
ASME Code: Section IV
National Board Registration: Yes (NB# 16895)
UL Listed: Yes (Electric Boiler)
Manufacturer: Sussman-Automatic Corporation
Included Equipment:
Sussman SSB100 electric steam boiler

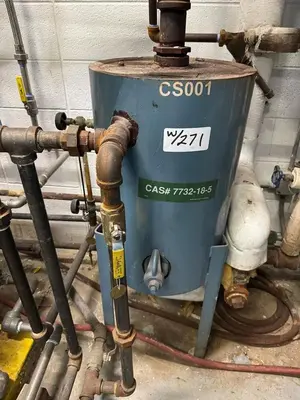

Condensate return tank (CS001, CAS# 7732-18-5)
Integrated control panel with indicators
Low water cutoff protection
High pressure cutoff protection

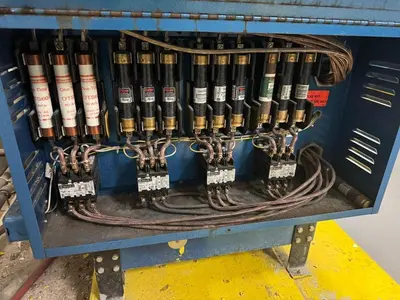

Element cutout switches (3 stages)
Hand/Off/Auto control selector
Alarm system
Safety interlocks
Pressure gauges
Temperature controls
Feedwater connections
Steam outlet connections

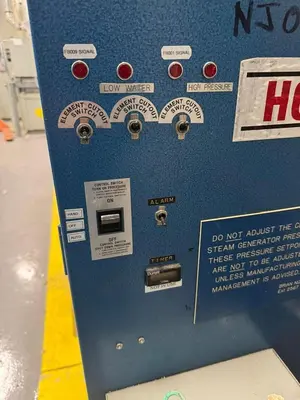

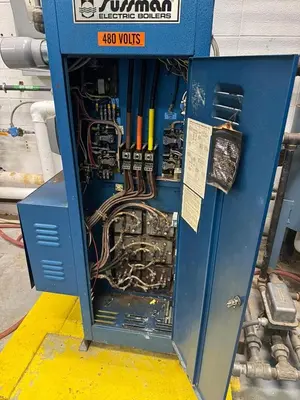

Control Features:
Front-mounted control panel
Low water indicator light
High pressure indicator light
Element cutout switches (3 positions)
Hand/Off/Auto selector switch
Timer control
Alarm indicator
Warning placard: "DO NOT ADJUST THE CLEAN STEAM GENERATOR PRESSURE - THESE PRESSURE SETPOINTS ARE NOT TO BE ADJUSTED UNLESS MANUFACTURING MANAGEMENT IS ADVISED"
KEY FEATURES & BENEFITS
Electric Steam Advantages:
Zero emissions - no combustion products
No gas piping or fuel storage required
No flue or chimney requirements
Quiet operation without burner noise
Quick startup and response time
Precise steam pressure control
Minimal maintenance vs. fuel-fired
Clean steam for food/pharmaceutical applications
Nearly 100% efficient energy conversion
Suitable for locations without gas service
Sussman Quality Features:
ASME Code Section IV certified design
National Board registered and stamped
UL Listed for safety compliance
Compact vertical footprint
Multiple immersion heating elements
Integrated electrical controls
Professional commercial-grade construction
Built in USA (Long Island City, NY)
Operational Benefits:
102 kW efficient electric heating
30 PSIG operating pressure (100 PSIG MAWP)
Suitable for commercial/institutional applications
Rapid steam generation
Minimal installation requirements
Low maintenance operation
Clean room compatible
No combustion air requirements
Integrated condensate return system
Complete System Package:
Boiler and condensate tank included
All controls and safeties installed
Ready for connection to steam distribution
Integrated feedwater system
Factory-coordinated components
Single-source system
SPECIFICATIONS SUMMARY
Boiler:
Model: Sussman 998-100 (SSB100)
Serial: N6-13488
Input: 102 kW electric
MAWP: 100 PSIG
Operating: 30 PSIG
ASME: Section IV
NB#: 16895
Electrical:
Primary: 480V/3-Phase/50-60Hz
Amperage: 123 Amps
Control: 120 VAC, 15 Amps
Physical:
Material: Steel pressure vessel
Type: Vertical electric
Mounting: Floor
Cabinet: Blue powder-coated steel
Certification: ASME, UL, National Board
Origin: USA
System Components:
Electric steam boiler
Condensate return tank (CS001)
Integrated control panel
Safety controls and interlocks
Pressure and temperature gauges
Feedwater connections
ADDITIONAL INFORMATION
Condition: Used - Operating Facility Removal
Manufacturer: Sussman-Automatic Corporation
Location: Long Island City, New York USA
Model: 998-100 (SSB100)
Serial Number: N6-13488
Kilowatt Input: 102 kW
Maximum Allowable Working Pressure: 100 PSIG
Operating Pressure: 30 PSIG (factory trimmed)
Power Requirements: 480V, 3-Phase, 50/60 Hz, 123 Amps
Control Voltage: 120 VAC, 15 Amps
ASME Code: Section IV
National Board Number: 16895
Certification: ASME, UL Listed, National Board
Cabinet Finish: Blue powder-coated steel
Configuration: Vertical electric steam generator
Included: Boiler, condensate tank, controls
Estimated Weight: 800-1,000 lbs (boiler and tank combined)
* Manufacturer: Sussman-Automatic Corporation
* Model Number: 998-100 (SSB100)
* Serial Number: N6-13488
* National Board Number: 16895
