OVERVIEW

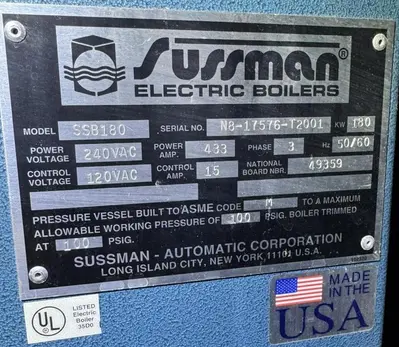

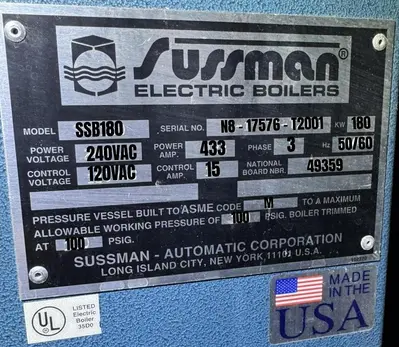

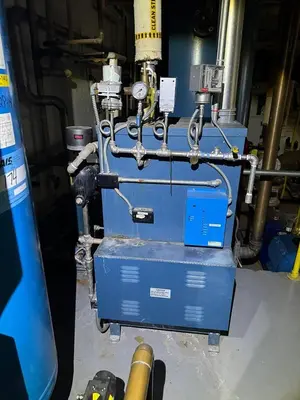

Sussman Electric Steam Boiler, Model SSB180, Serial# N8-17576-T2001, Approximate 180kw, 3/60/240V, with tank & condensate return. Sussman Model SSB180 electric steam boiler removed from operating facility. This commercial-grade steam generator features 180 kW electric input capacity. ASME Code Section IV certified pressure vessel built to 100 PSIG maximum allowable working pressure, factory trimmed for 100 PSIG operating pressure. 240V 3-phase 433 amp power supply with 120VAC control voltage. UL Listed construction with National Board registration #49359. Manufactured by Sussman-Automatic Corporation in Long Island City, New York. Complete system includes boiler, condensate return tank (CS002), and integrated controls with "TWO POWER SOURCES" configuration. Ideal for hospitals, laundries, food processing, pharmaceutical manufacturing, commercial buildings, institutional facilities, or any application requiring clean electric steam without combustion emissions or gas piping.
EQUIPMENT SPECIFICATIONS
Model Information:
Manufacturer: Sussman-Automatic Corporation
Model Number: SSB180
Serial Number: N8-17576-T2001
Country of Origin: USA (Long Island City, New York)
National Board Number: 49359
Configuration: Two Power Sources
Performance Ratings:
Kilowatt Input: 180 kW
Maximum Allowable Working Pressure: 100 PSIG
Operating Pressure (Boiler Trimmed At): 100 PSIG
ASME Code: Section IV (Low Pressure Heating Boilers)
Pressure Vessel Construction: ASME Code M stamped
Electrical Specifications:
Power Voltage: 240 VAC
Frequency: 50/60 Hz
Phase: 3-Phase
Power Amperage: 433 Amps
Control Voltage: 120 VAC
Control Amperage: 15 Amps
Electrical Connection: Hardwired
Configuration: Two power sources/circuits
Certification & Compliance:
ASME Code: Section IV (Code M)
National Board Registration: Yes (NB# 49359)
UL Listed: Yes (Electric Boiler 3500)
Manufacturer: Sussman-Automatic Corporation
Made in the USA: Yes
Included Equipment:
Sussman SSB180 electric steam boiler

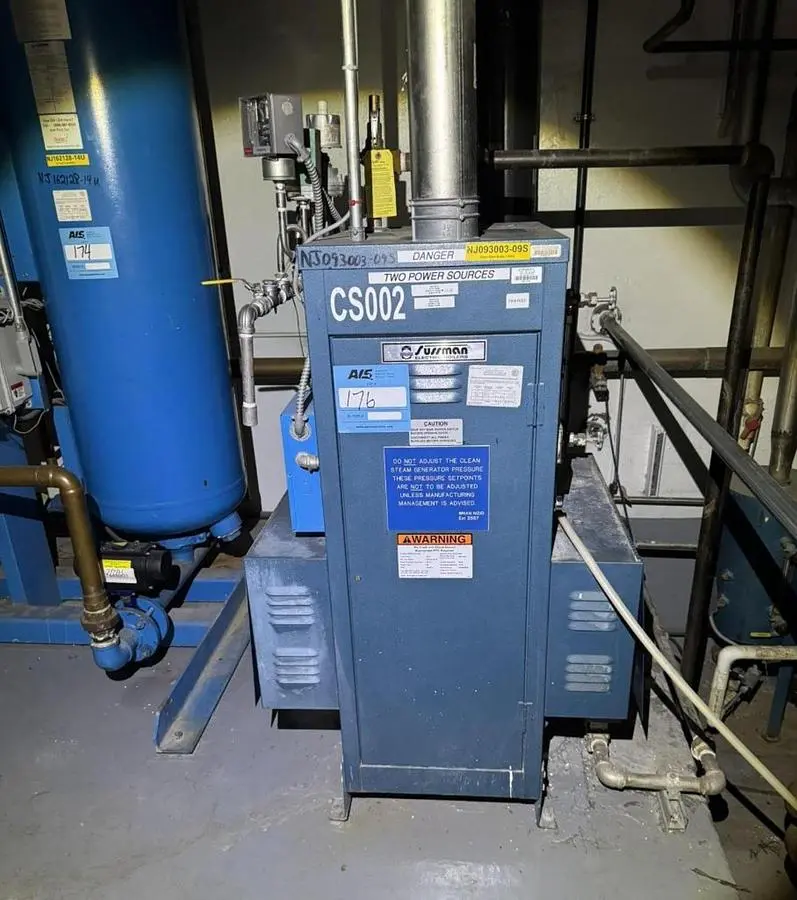

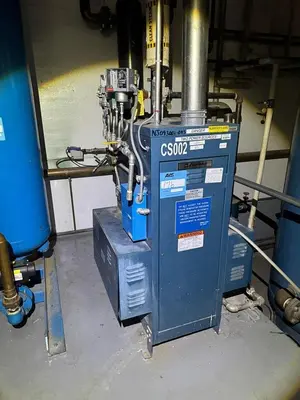

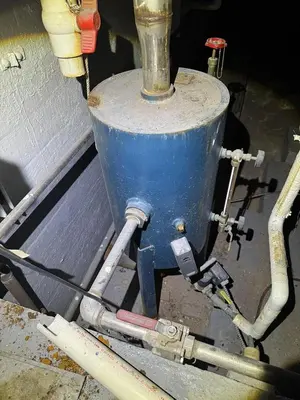

Condensate return tank (CS002)

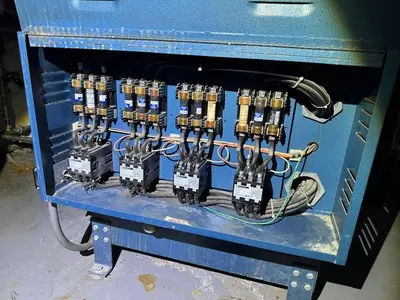

Integrated control panel with indicators
Low water cutoff protection
High pressure cutoff protection
Element cutout switches
Auto/Off/Hand control selector
Blowdown pilot light indicator
Timer control (marked "NOT IN USE")
Alarm system
Safety interlocks

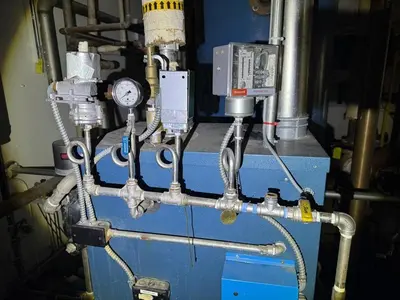

Pressure gauges
Temperature controls

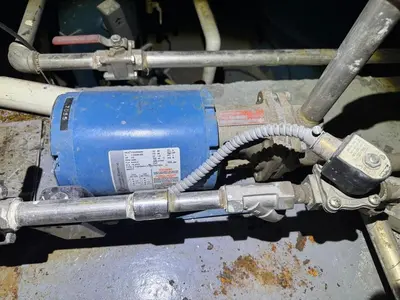

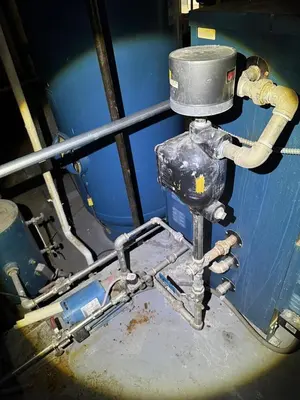

Feedwater pump and connections
Steam outlet connections
Piping and valves
Control Features:

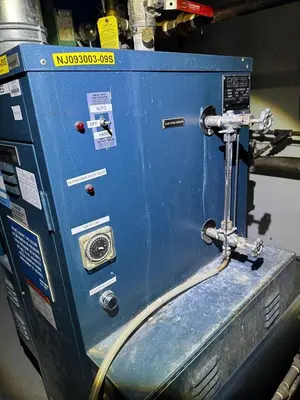

Front-mounted control panel
Auto/Off/Hand selector switch
Blowdown pilot light
Timer control
Two power sources configuration
Honeywell controls
Warning placard: "DO NOT ADJUST THE CLEAN STEAM GENERATOR PRESSURE - THESE PRESSURE SETPOINTS ARE NOT TO BE ADJUSTED UNLESS MANUFACTURING MANAGEMENT IS ADVISED"
KEY FEATURES & BENEFITS
Electric Steam Advantages:
Zero emissions - no combustion products
No gas piping or fuel storage required
No flue or chimney requirements
Quiet operation without burner noise
Quick startup and response time
Precise steam pressure control
Minimal maintenance vs. fuel-fired
Clean steam for food/pharmaceutical applications
Nearly 100% efficient energy conversion
Suitable for locations without gas service
Sussman Quality Features:
ASME Code Section IV certified design
National Board registered and stamped
UL Listed for safety compliance
Compact vertical footprint
Multiple immersion heating elements
Integrated electrical controls
Professional commercial-grade construction
Built in USA (Long Island City, NY)
Two power sources for redundancy/staging
Operational Benefits:
180 kW efficient electric heating
100 PSIG operating pressure
Suitable for commercial/institutional applications
Rapid steam generation
Minimal installation requirements
Low maintenance operation
Clean room compatible
No combustion air requirements
Integrated condensate return system
Dual power source configuration
Complete System Package:
Boiler and condensate tank included
All controls and safeties installed
Ready for connection to steam distribution
Integrated feedwater pump system
Factory-coordinated components
Single-source system
SPECIFICATIONS SUMMARY
Boiler:
Model: Sussman SSB180
Serial: N8-17576-T2001
Input: 180 kW electric
MAWP: 100 PSIG
Operating: 100 PSIG
ASME: Section IV (Code M)
NB#: 49359
Electrical:
Primary: 240V/3-Phase/50-60Hz
Amperage: 433 Amps
Control: 120 VAC, 15 Amps
Configuration: Two power sources
Physical:
Material: Steel pressure vessel
Type: Vertical electric
Mounting: Floor
Cabinet: Blue powder-coated steel
Certification: ASME, UL, National Board
Origin: USA
System Components:
Electric steam boiler
Condensate return tank (CS002)
Integrated control panel
Feedwater pump
Safety controls and interlocks
Pressure and temperature gauges
Feedwater connections
ADDITIONAL INFORMATION
Condition: Used - Operating Facility Removal
Manufacturer: Sussman-Automatic Corporation
Location: Long Island City, New York USA
Model: SSB180
Serial Number: N8-17576-T2001
Kilowatt Input: 180 kW
Maximum Allowable Working Pressure: 100 PSIG
Operating Pressure: 100 PSIG (factory trimmed)
Power Requirements: 240V, 3-Phase, 50/60 Hz, 433 Amps
Control Voltage: 120 VAC, 15 Amps
ASME Code: Section IV (Code M)
National Board Number: 49359
Certification: ASME, UL Listed (3500), National Board
Cabinet Finish: Blue powder-coated steel
Configuration: Vertical electric steam generator with two power sources
Included: Boiler, condensate tank, feedwater pump, controls
Estimated Weight: 1,000-1,500 lbs (boiler and tank combined)
* Manufacturer: Sussman-Automatic Corporation
* Model Number: SSB180
* Serial Number: N8-17576-T2001
* National Board Number: 49359
