OVERVIEW

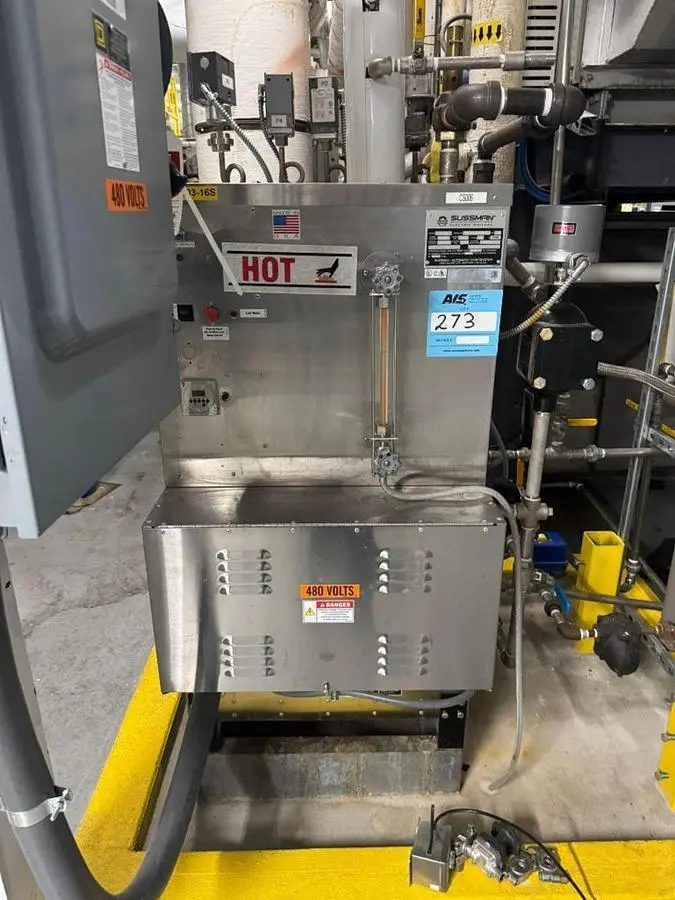

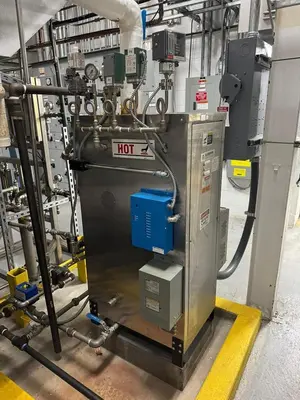

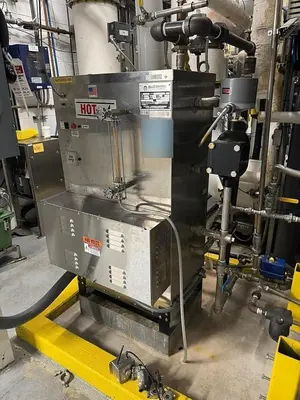

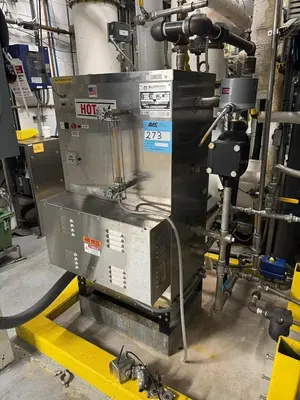

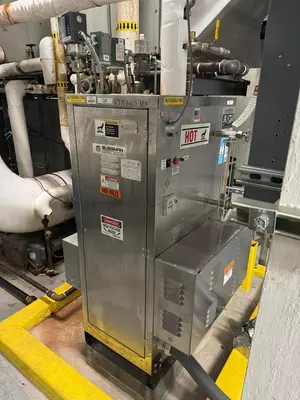

Sussman Stainless Steel Electric Steam Boiler, Model SSB135, Serial# N8-21242-W15, National Board# 152094, Year 2015. Approximate 144kw, 3/60/480V. Sussman SSB135 stainless steel electric steam boiler removed from operating facility. This compact commercial-grade steam generator features 144 kW electric input capacity producing 500 lb/hr maximum steam output. ASME Code Section IV certified pressure vessel built to 100 PSIG maximum allowable working pressure, factory trimmed for 25 PSIG operating pressure. 480V 3-phase 173 amp power supply with 120VAC control voltage. UL Listed construction with National Board registration #152094. Manufactured 2015 by Sussman-Automatic Corporation in Long Island City, New York. Ideal for hospitals, laundries, food processing, pharmaceutical manufacturing, commercial buildings, institutional facilities, or any application requiring clean electric steam without combustion emissions or gas piping.
EQUIPMENT SPECIFICATIONS

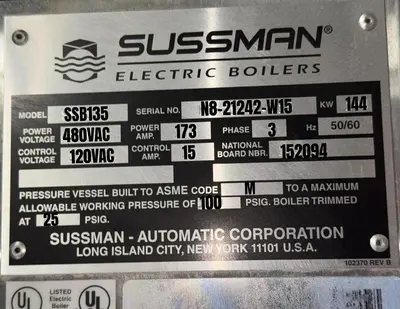

Model Information:
Manufacturer: Sussman-Automatic Corporation
Model Number: SSB135
Serial Number: N8-21242-W15
Year Built: 2015
Country of Origin: USA (Long Island City, New York)
National Board Number: 152094

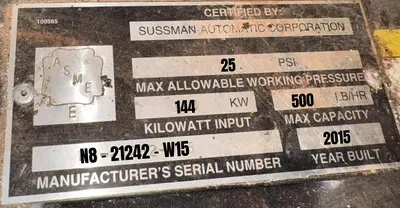

Performance Ratings:
Maximum Capacity: 500 lb/hr steam
Kilowatt Input: 144 kW
Maximum Allowable Working Pressure: 100 PSIG
Operating Pressure (Boiler Trimmed At): 25 PSIG
ASME Code: Section IV (Low Pressure Heating Boilers)
Pressure Vessel Construction: ASME stamped
Electrical Specifications:
Power Voltage: 480 VAC
Frequency: 50/60 Hz
Phase: 3-Phase
Power Amperage: 173 Amps
Control Voltage: 120 VAC
Control Amperage: 15 Amps
Electrical Connection: Hardwired
Certification & Compliance:
ASME Code: Section IV
National Board Registration: Yes (NB# 152094)
UL Listed: Yes (Electric Boiler)
Manufacturer: Sussman-Automatic Corporation
Physical Specifications:
Cabinet Material: Stainless steel construction
Mounting: Floor-mounted vertical design
Configuration: Compact electric steam generator
Element Configuration: Multiple immersion heating elements

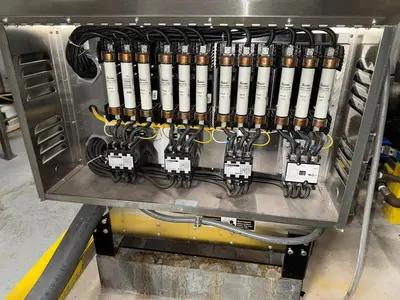

Fuse Protection: Multiple fuses visible in control panel

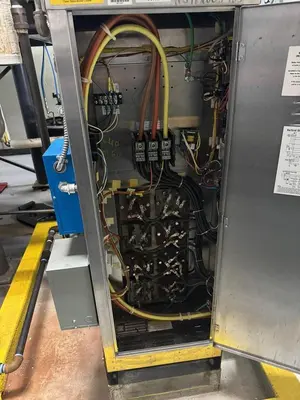

Control Panel: Integrated front-mounted controls
Estimated Weight: 800-1,200 lbs
KEY FEATURES & BENEFITS
Electric Steam Advantages:
Zero emissions - no combustion products
No gas piping or fuel storage required
No flue or chimney requirements
Quiet operation without burner noise
Quick startup and response time
Precise steam pressure control
Minimal maintenance vs. fuel-fired
Clean steam for food/pharmaceutical applications
Nearly 100% efficient energy conversion
Suitable for locations without gas service
Sussman Quality Features:
Stainless steel pressure vessel construction
ASME Code Section IV certified design
National Board registered and stamped
UL Listed for safety compliance
Compact vertical footprint
Multiple immersion heating elements
Integrated electrical controls
Professional commercial-grade construction
Built in USA (Long Island City, NY)
Operational Benefits:
500 lb/hr steam capacity
144 kW efficient electric heating
25 PSIG operating pressure (100 PSIG MAWP)
Suitable for commercial/institutional applications
Rapid steam generation
Minimal installation requirements
Low maintenance operation
Clean room compatible
No combustion air requirements
SPECIFICATIONS SUMMARY
Boiler:
Model: Sussman SSB135
Serial: N8-21242-W15
Year: 2015
Capacity: 500 lb/hr steam
Input: 144 kW electric
MAWP: 100 PSIG
Operating: 25 PSIG
ASME: Section IV
NB#: 152094
Electrical:
Primary: 480V/3-Phase/50-60Hz
Amperage: 173 Amps
Control: 120 VAC, 15 Amps
Physical:
Material: Stainless steel
Type: Vertical electric
Mounting: Floor
Certification: ASME, UL, National Board
Origin: USA
Weight: 800-1,200 lbs (est.)
ADDITIONAL INFORMATION
Condition: Used - 2015 Manufacture
Manufacturer: Sussman-Automatic Corporation
Location: Long Island City, New York USA
Model: SSB135
Serial Number: N8-21242-W15
Year Built: 2015
Steam Capacity: 500 lb/hr maximum
Kilowatt Input: 144 kW
Maximum Allowable Working Pressure: 100 PSIG
Operating Pressure: 25 PSIG (factory trimmed)
Power Requirements: 480V, 3-Phase, 50/60 Hz, 173 Amps
Control Voltage: 120 VAC, 15 Amps
ASME Code: Section IV
National Board Number: 152094
Certification: ASME, UL Listed, National Board
Construction Material: Stainless Steel
Configuration: Vertical electric steam generator
Estimated Weight: 800-1,200 lbs
EQUIPMENT SPECIFICATIONS
Model Information:
Manufacturer: Sussman-Automatic Corporation
Model Number: SSB135
Serial Number: N8-21242-W15
Year Built: 2015
Country of Origin: USA (Long Island City, New York)
National Board Number: 152094
Performance Ratings:
Maximum Capacity: 500 lb/hr steam
Kilowatt Input: 144 kW
Maximum Allowable Working Pressure: 100 PSIG
Operating Pressure (Boiler Trimmed At): 25 PSIG
ASME Code:
* Manufacturer: Sussman-Automatic Corporation
* Model Number: SSB135
* Serial Number: N8-21242-W15
* Year Built: 2015
* National Board Number: 152094
