USED 2023 HURST 4VT-X-30-150

Overview

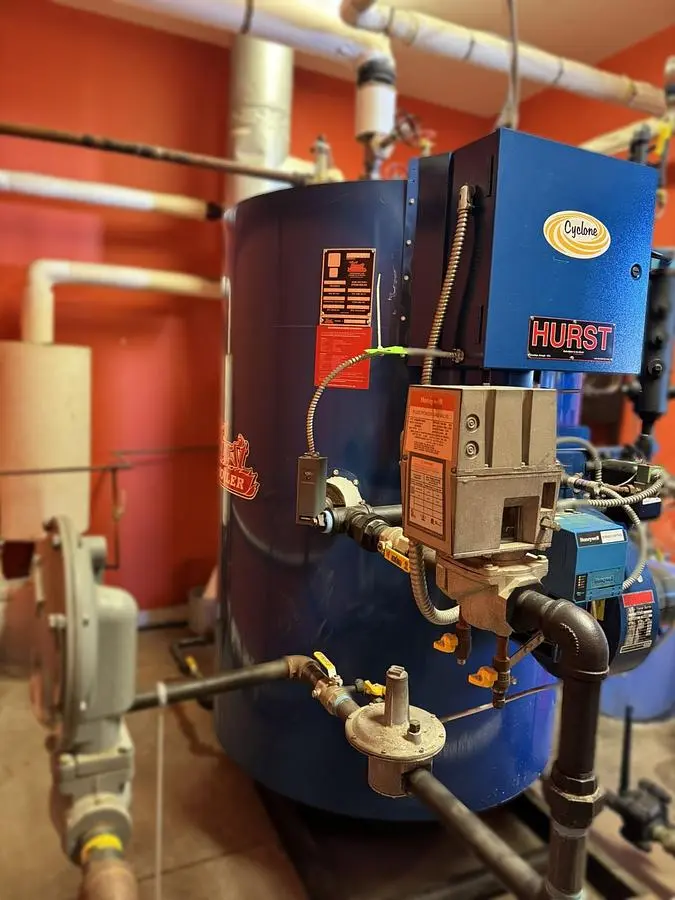

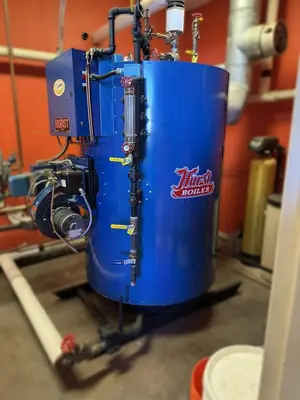

This Hurst 4VT-X-30-150 vertical tubeless steam boiler was manufactured in July 2023 and is ASME Section I certified by Hurst Boiler & Welding Co., Inc. With 30 horsepower capacity (1,035 lbs/hr steam output) and 150 PSI maximum working pressure, this complete system includes the boiler, feedwater make-up tank, feedwater storage tank, and steam pressure reducer. National Board certified (NB 26139) with 86 square feet of heating surface, this system features Hurst's vertical tubeless design with Cyclone burner technology and integrated feedwater system.

Design and Performance

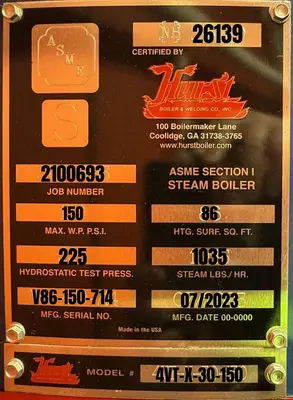

Boiler Specifications:

Manufacturer: Hurst Boiler & Welding Co., Inc.
Model: 4VT-X-30-150
National Board Number: 26139
Serial Number: V86-150-714
Job Number: 2100693
Manufacturing Date: 07/2023
Certification: ASME Section I Steam Boiler

Pressure and Capacity Ratings:

Maximum Working Pressure: 150 PSI
Hydrostatic Test Pressure: 225 PSI
Steam Output: 1,035 lbs/hr
Horsepower: 30 HP
Heating Surface: 86 sq.ft.

Construction:

Type: Vertical tubeless steam boiler
Design: 4-pass vertical fire tube
Burner: Cyclone burner system
Jacket: Blue powder-coated steel
Controls: Integrated control panel
Water Level: Sight glass gauge
Insulation: Factory insulated

System Components:

Hurst 4VT-X-30-150 vertical steam boiler
Cyclone burner assembly
Integrated control panel

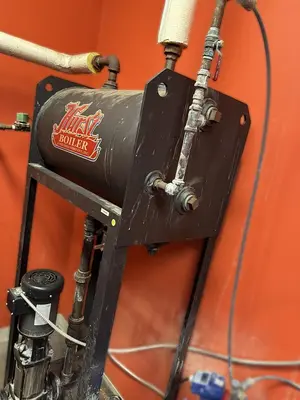

Feedwater make-up tank
Feedwater storage tank
Steam pressure reducer
Safety relief valve
Pressure gauges
Water level sight glass
Piping connections and valves
Mounting skid

Control Features:

Honeywell control system
Burner management controls
Operating status indicators
Safety interlocks
Water level controls
Feedwater controls
Pressure monitoring

Safety Features:

ASME Section I certified
National Board registered (NB 26139)
Safety relief valve
Low water cutoff
Flame safeguard system
High pressure limit
Pressure monitoring gauges

Key Specifications

Condition: NEW - 2023 Manufacture
Brand: Hurst Boiler
Model: 4VT-X-30-150
Serial Number: V86-150-714
Job Number: 2100693
National Board: 26139
Manufacturing Date: 07/2023
Equipment Type: Vertical Tubeless Steam Boiler

Performance Data:

Horsepower: 30 HP
Steam Output: 1,035 lbs/hr
Maximum Working Pressure: 150 PSI
Hydrostatic Test Pressure: 225 PSI
Heating Surface: 86 sq.ft.

Physical Specifications:

Configuration: Vertical tubeless design
Burner: Cyclone burner system
Jacket: Blue powder-coated steel
Mounting: Skid base
Controls: Integrated panel with Honeywell system

System Includes:

Hurst vertical steam boiler
Feedwater make-up tank
Feedwater storage tank
Steam pressure reducer
All necessary piping and valves

Ideal Applications

Commercial Laundries
Dry Cleaning Facilities
Food Processing Plants
Breweries and Distilleries
Pharmaceutical Manufacturing
Laboratory Steam Supply
Healthcare Facilities
Small Manufacturing Plants
Institutional Kitchens
Chemical Processing
Textile Processing
Sterilization Applications
Process Steam Requirements

Benefits

NEW 2023 manufacture
30 HP steam capacity
Vertical tubeless design
150 PSI operating pressure
ASME Section I certified
National Board registered
Cyclone burner technology
Compact vertical footprint
Complete system included
Feedwater make-up tank included
Feedwater storage tank included
Steam reducer included
Integrated feedwater system
Honeywell controls
Factory insulated
Made in USA
Ready for installation

Additional Information

Condition: NEW - Manufactured 07/2023
Manufacturer: Hurst Boiler & Welding Co., Inc., Coolidge, GA 31738-3765
Model: 4VT-X-30-150
Serial Number: V86-150-714
Job Number: 2100693
National Board Number: 26139
Manufacturing Date: 07/2023

Capacity Ratings:

Horsepower: 30 HP
Maximum Working Pressure: 150 PSI
Hydrostatic Test Pressure: 225 PSI
Steam Output: 1,035 lbs/hr
Heating Surface: 86 sq.ft.

Certification:

ASME Section I Steam Boiler
National Board Certified (NB 26139)

System Includes:

Hurst 4VT-X-30-150 vertical steam boiler
Feedwater make-up tank
Feedwater storage tank
Steam pressure reducer
Complete piping and valve package

Construction: Vertical tubeless fire tube design with Cyclone burner
Made In: USA (Coolidge, Georgia)

* Brand: Hurst Boiler
* Model: 4VT-X-30-150
* National Board Number: 26139
* Serial Number: V86-150-714
* Steam Output: 1,035 lbs/hr
* Horsepower: 30 HP
* Type: Vertical tubeless steam boiler
* Equipment Type: Vertical Tubeless Steam Boiler
