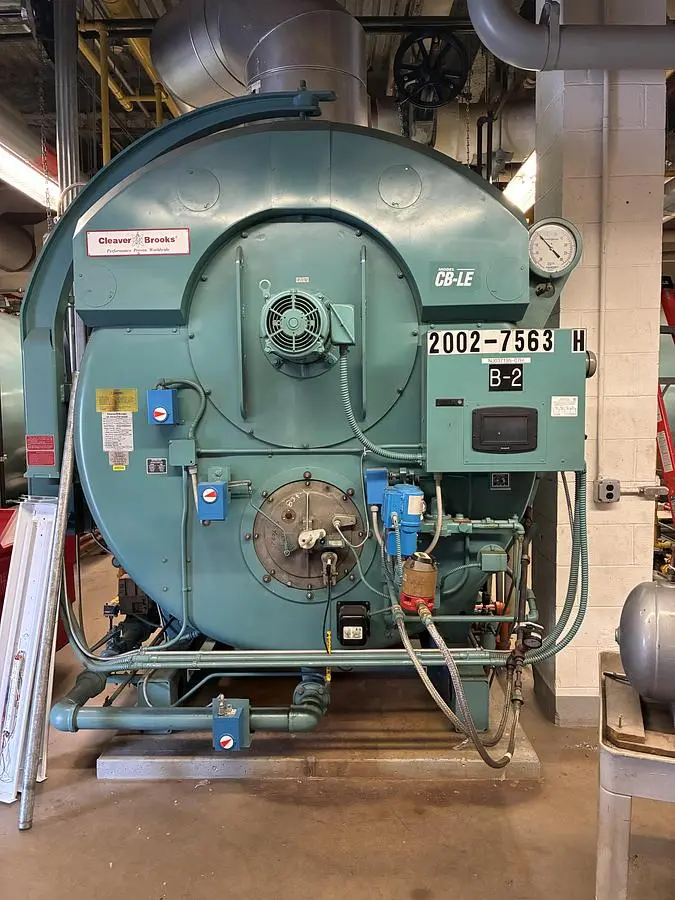

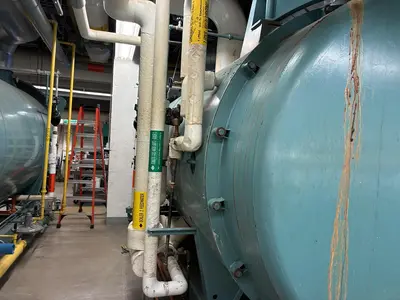

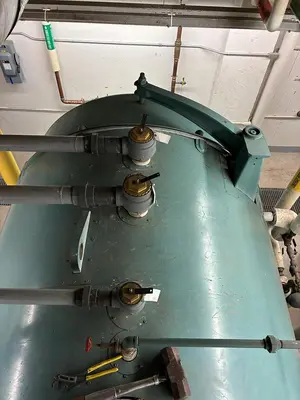

USED 2002 CLEAVER BROOKS CBI200-350-015

Overview

This 2002 Cleaver Brooks CB 350 HP Steam Boiler features a comprehensive Honeywell control package with advanced flame monitoring and burner management systems. Operating at 15 PSI steam pressure with 14,288,000 BTU/hr input, this dual fuel steam boiler includes modern digital controls, UV flame detection, and complete electrical distribution. The system features natural gas and No. 2 oil firing capability with automated control systems. Wired for 460/3/60 volt operation with UL certification and emission reduction equipment.

Design and Performance

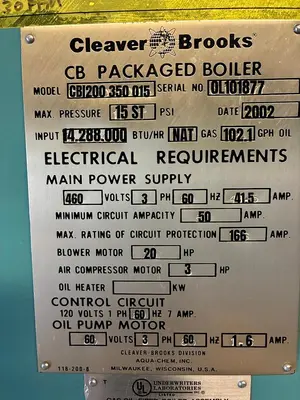

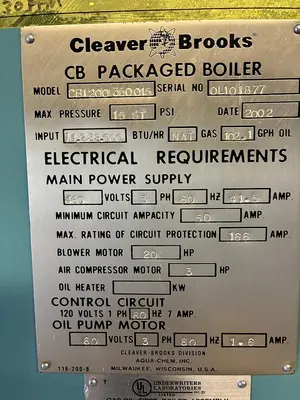

Model: CBI200-350-015

Serial Number: 0L101877

Year Built: 2002

Horsepower: 350 HP

Design Pressure: 15 PSI Steam

Input Capacity: 14,288,000 BTU/hr

Fuel Type: Dual Fuel - Natural Gas / No. 2 Oil

Oil Capacity: 102.1 GPH

Electrical: 460/3/60 Volt, 41.5 Amp

Emission Control: Integrated reduction equipment

Control System: Advanced Honeywell digital package

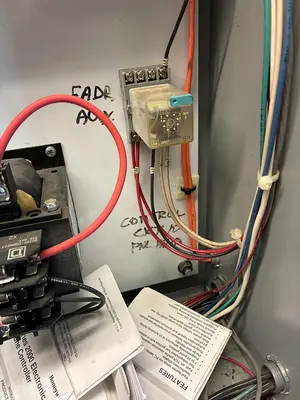

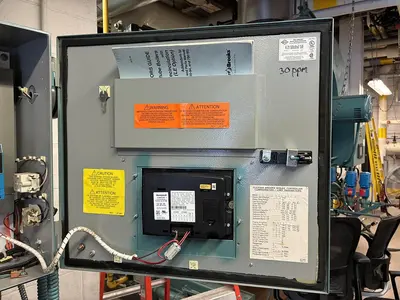

Advanced Control Package

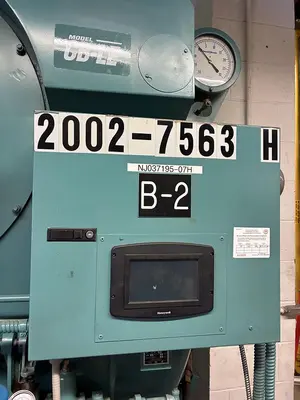

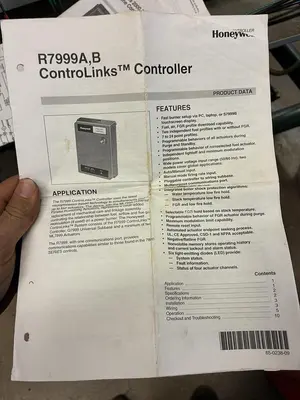

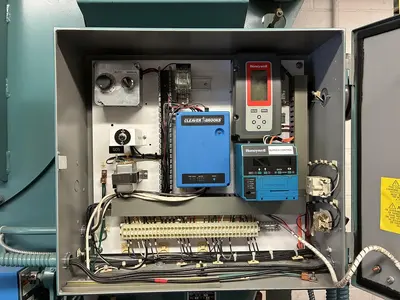

Honeywell R7999A,B ControlLinks™ Controller

Fast burner setup via PC, laptop, or S7999B touchscreen
Fuel, air, FGR profile download capability
Two independent fuel profiles (gas/oil)
7 to 24 point profiles
Programmable behaviors of all actuators
Purge and Standby control
Independent lightoff and minimum modulation positions
Wide power voltage input range (50/60 Hz)
Auto/Manual input control
Manual modulation firing rate input
Pluggable controller for easy wiring
Integrated boiler shock protection algorithms
Operating history and current lockout/alarm status
Six light-emitting diodes (LED) status display

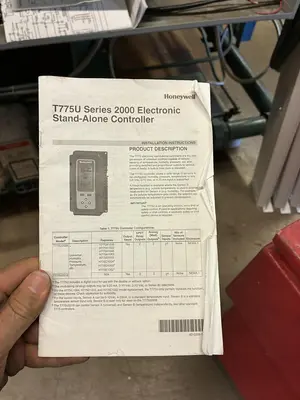

Honeywell T775U Series 2000 Electronic Controller

Digital stand-alone temperature controller
Universal control capability
Humidity, pressure, and temperature sensing
Built-in time clock functionality
Wide temperature range (-40°F to +150°F)
NEMA 1 enclosure rating
Sensor inputs for universal applications

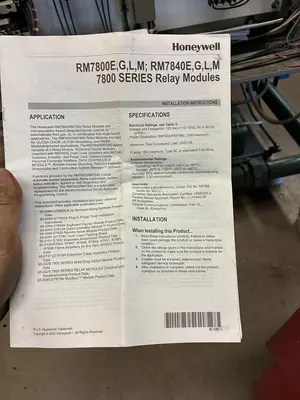

Honeywell RM7800/7840 Series Relay Modules

Microprocessor-based integrated burner controls
Automatic burner sequencing
Flame supervision system
Self-diagnostics and troubleshooting
Solid state replacement for R4140 controls
NEMA 1 electrical ratings
Maximum connected load: 2000 VA
Environmental ratings: -40°F to +140°F operating

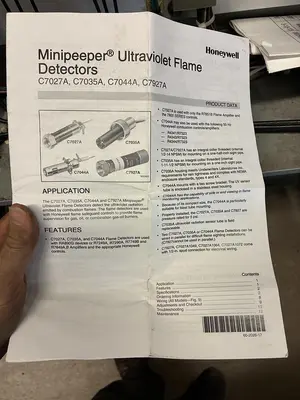

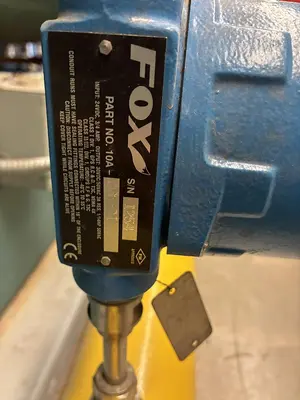

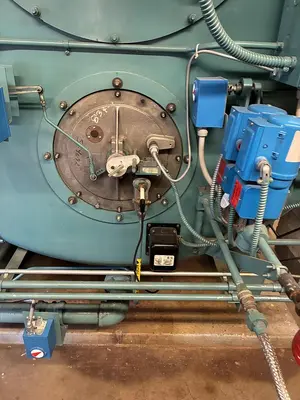

Honeywell Minipeeper® UV Flame Detectors

C7027A, C7035A, C7044A models available
Ultraviolet radiation sensing
Used with R4341/R7323 amplifiers
Integral collar threaded for mounting
Suitable for gas, oil, or combination burners
Field-replaceable UV sensor tube
NEMA enclosure ratings

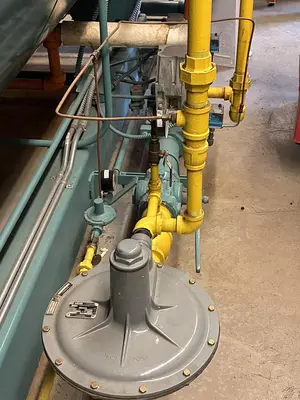

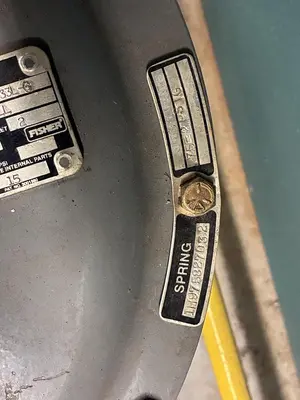

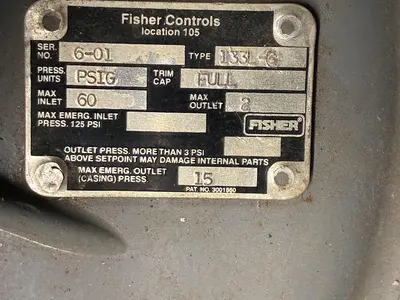

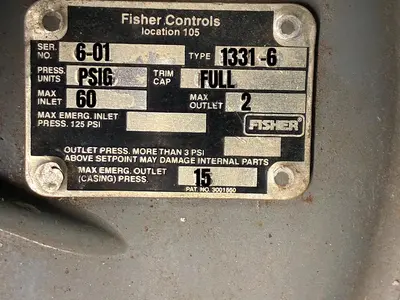

Fisher Controls 133L-6 Pressure Regulator

Serial Number: 6-01
Pressure Units: PSIG
Maximum Inlet: 60 PSI
Maximum Outlet: 8 PSI
Trim Capacity: Full
Maximum Emergency Inlet: 125 PSI
Maximum Emergency Outlet: 15 PSI

Complete Equipment Package

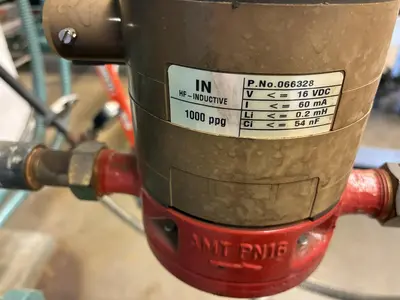

Primary Components

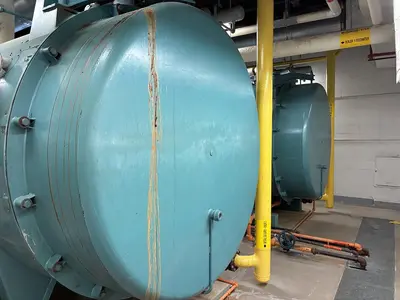

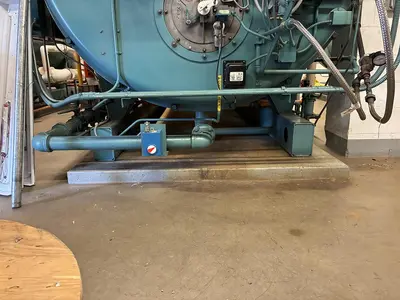

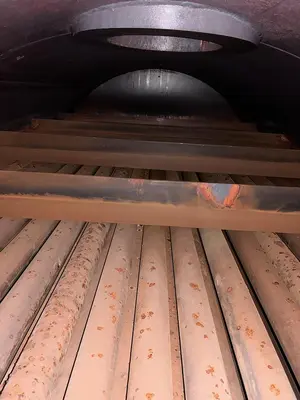

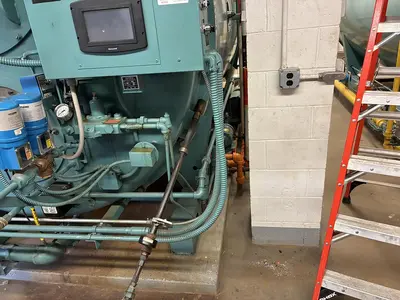

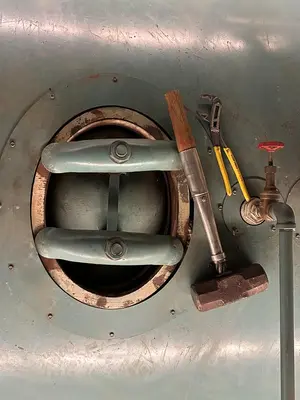

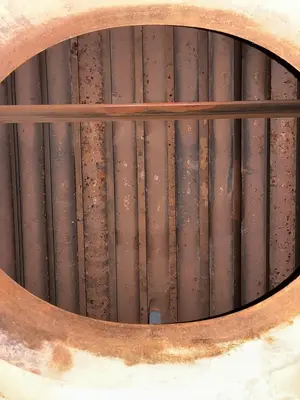

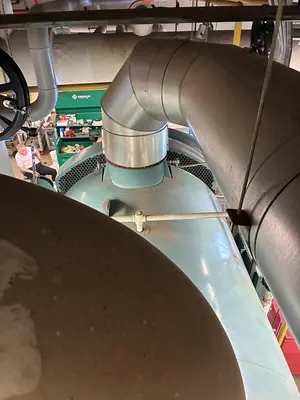

Cleaver Brooks 350 HP pressure vessel

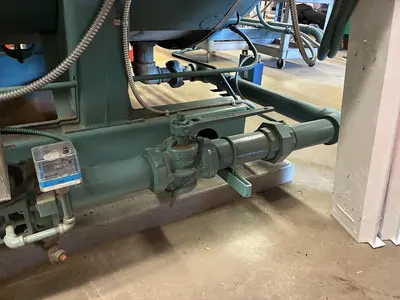

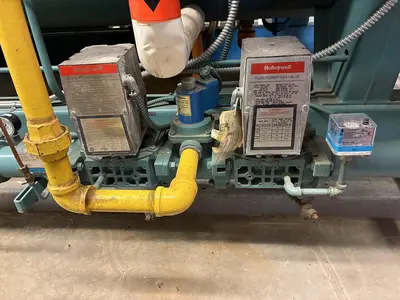

Dual fuel burner system (gas/oil)

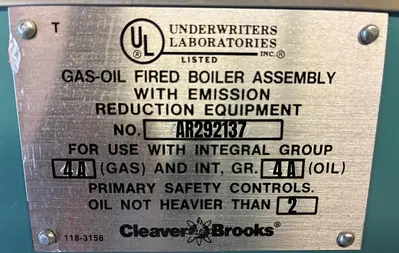

Emission reduction equipment (AR292137)
Complete Honeywell control system
Digital temperature controllers
UV flame detection system

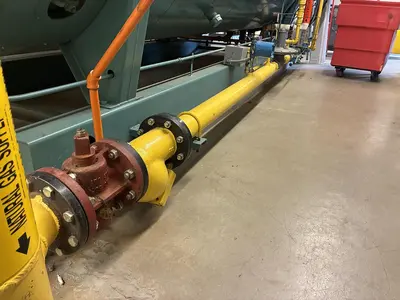

Fisher pressure regulation

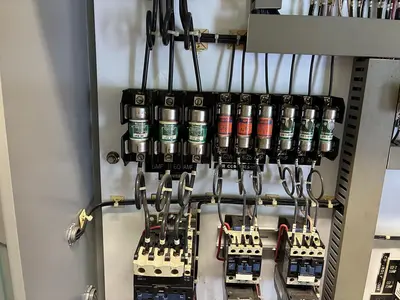

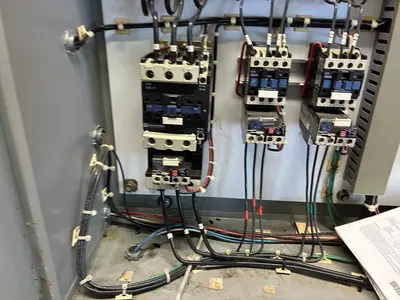

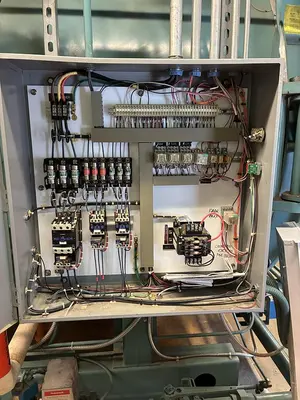

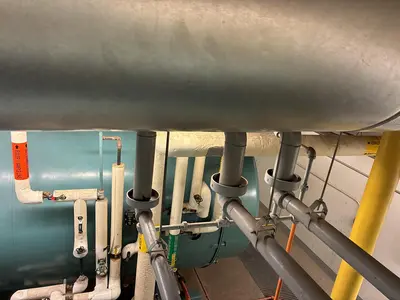

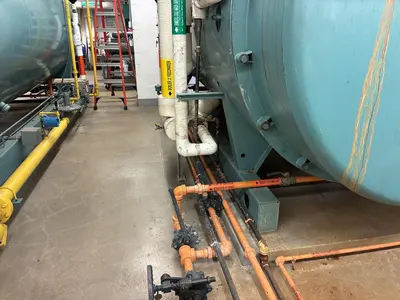

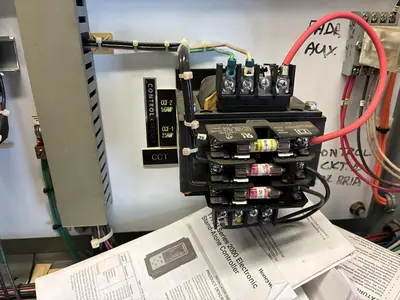

Complete electrical distribution

Motor Specifications

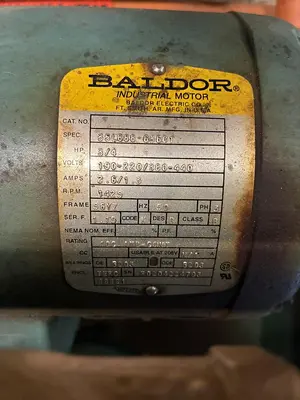

Blower Motor: 20 HP Baldor Industrial
Specification: 35L888-88661
5/3 HP variable
190-220/380-440V
1425 RPM
Frame 56YZ
3-phase, 50Hz operation

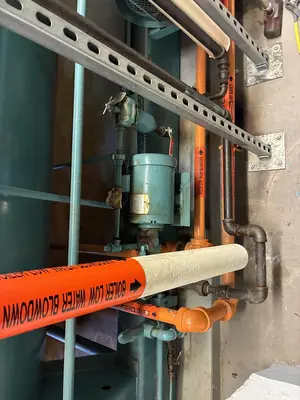

Air Compressor Motor: 3 HP

Oil Pump Motor: 460V/3-phase/60Hz, 1.6 Amp

Electrical Requirements

Main Power Supply: 460V/3-phase/60Hz

Full Load Amps: 41.5

Minimum Circuit Ampacity: 50 Amp

Maximum Circuit Protection: 166 Amp

Control Voltage: 120V single phase, 7 Amp

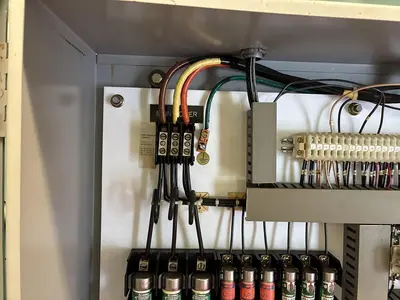

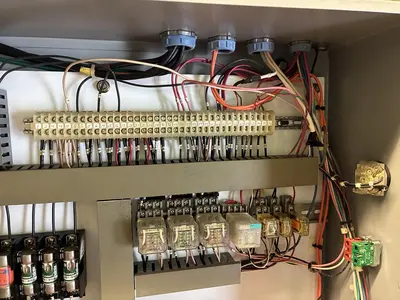

Wiring Documentation: Complete panel schematic (3-13-13)

Prepared By: Industrial Controls, New York

Key Specifications

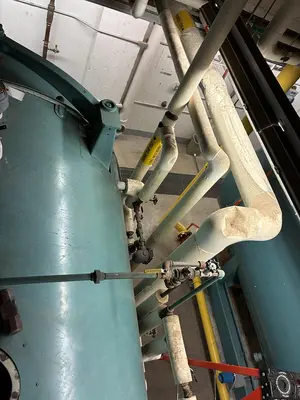

Boiler Type: CB Packaged Firetube Steam

Operating Pressure: 15 PSI Steam

BTU Input: 14,288,000 BTU/hr

Fuel Options: Natural Gas and No. 2 Oil

Control Type: Honeywell ControlLinks™ digital

Flame Detection: UV Minipeeper® system

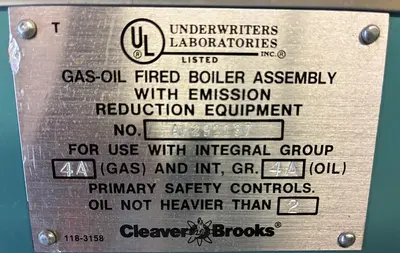

Safety Groups: 4A (Gas) and 4A (Oil)

Emission Equipment: Factory integrated

Ideal Applications

Industrial Steam Generation
Manufacturing Facilities
Process Steam Applications
Hospital Central Plants
University Campus Systems
Food Processing Plants
Commercial Laundries
Pharmaceutical Manufacturing
Any facility requiring 350 HP/15 PSI steam

Benefits

Advanced Honeywell digital controls
PC/laptop programmable burner profiles
Dual fuel automatic switching capability
UV flame detection for enhanced safety
Complete operating history logging
Boiler shock protection algorithms
UL Listed assembly with emission controls
14.3 million BTU/hr heating capacity
Low pressure operation for safety
Complete electrical package included
Professional wiring documentation
Ready for installation and commissioning

Additional Information

Condition: Complete with advanced controls

Documentation: Full wiring diagrams and manuals

Control Interface: Digital with LED status display

Safety Systems: Multiple redundant protections

Emission Compliance: Integrated reduction equipment

Installation Support: Complete documentation package

Location: Franklin Lakes, NJ (per documentation)
