USED 2002 CLEAVER BROOKS CBI200-350-015

Overview

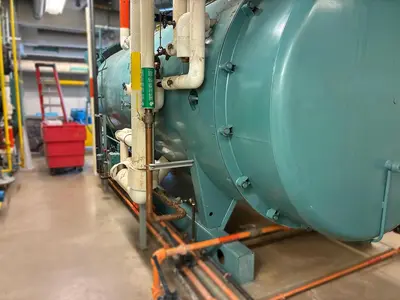

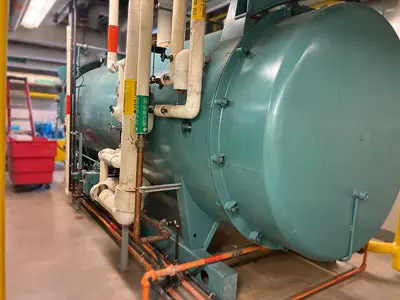

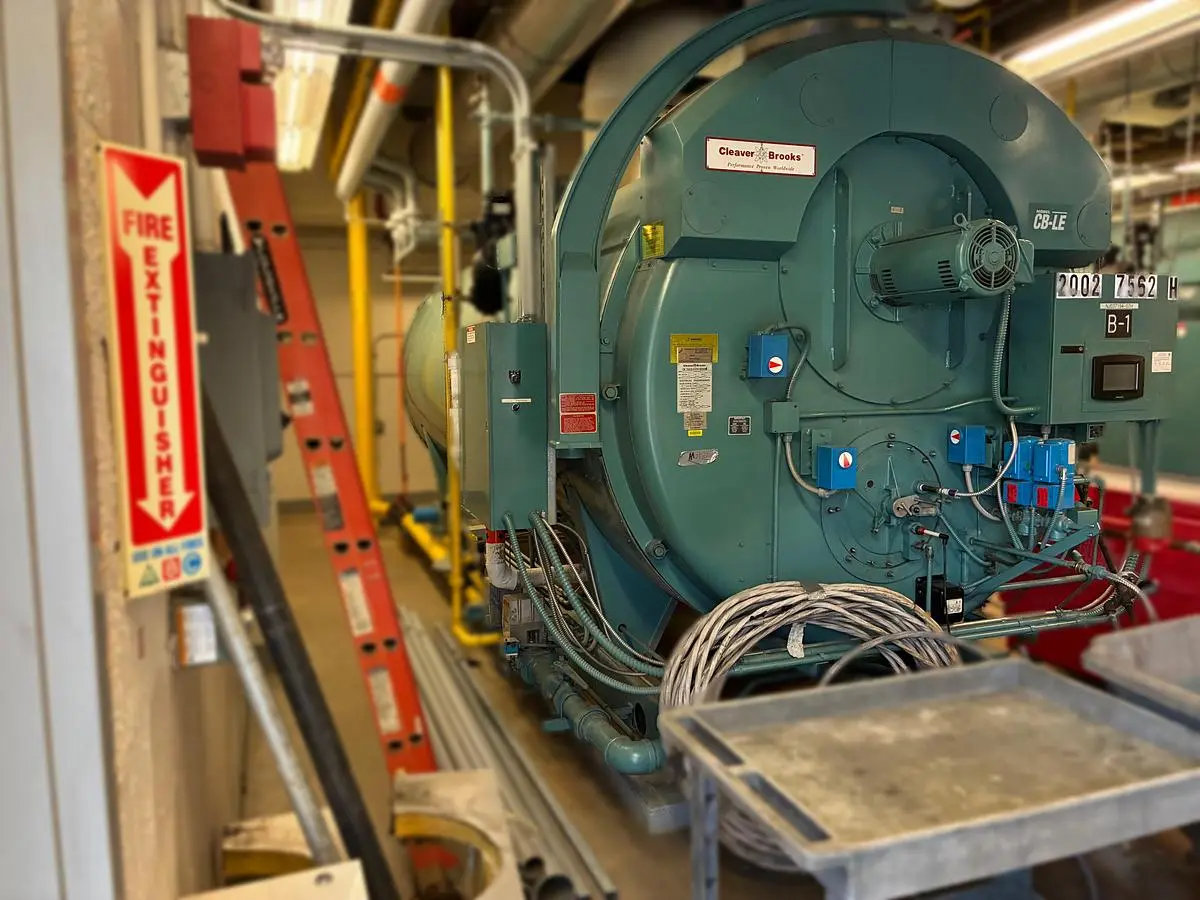

This 2002 Cleaver Brooks CB 350 HP Steam Boiler delivers reliable steam generation with dual fuel capability and recent professional service. Operating at 15 PSI steam pressure with 14,288,000 BTU/hr input, this steam boiler features natural gas and No. 2 oil firing options. Recently repaired by Miller & Chitty Co. in November 2021, the unit includes emission reduction equipment and complete electrical controls. Wired for 460/3/60 volt operation with comprehensive safety systems and UL certification.

Design and Performance

Model: CBI200-350-015

Serial Number: 0L101876

Year Built: 2002

Design Pressure: 15 PSI Steam

Input Capacity: 14,288,000 BTU/hr

Fuel Type: Dual Fuel - Natural Gas / No. 2 Oil

Gas Capacity: 102 GPH Oil

Electrical: 460/3/60 Volt, 21.5 Amp

Emission Control: Integrated reduction equipment

Stock Number: 246399

Recent Professional Service

Repair History

Service Provider: Miller & Chitty Co. Inc., Kenilworth NJ

Repair Date: November 18, 2021 (11.18.21)

Job Number: 3613

NJR Symbol Number: Listed

Service Location: 135-139 Market St., Kenilworth NJ 07033

Certifications & Testing

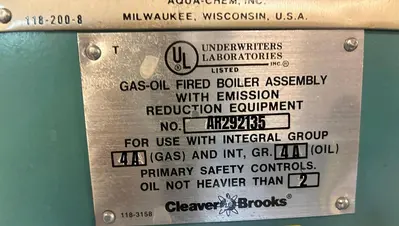

UL Listed for Gas-Oil Fired Boiler Assembly
Emission Reduction Equipment Certified
ASME Code compliance
Underwriters Laboratories approval

Complete Equipment Package

Primary Components

Cleaver Brooks pressure vessel

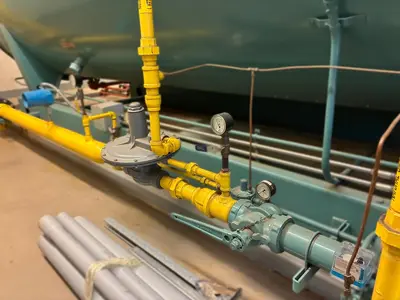

Dual fuel burner system (gas/oil)
Emission reduction equipment

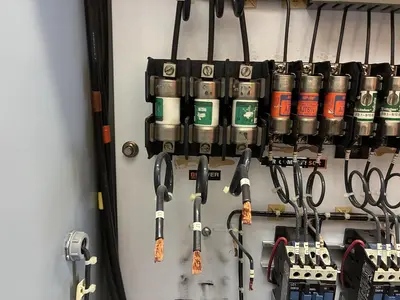

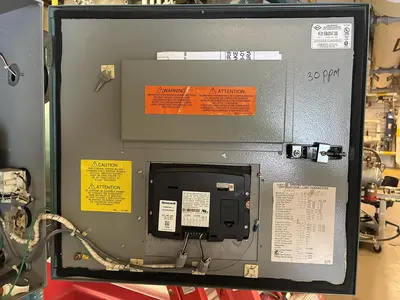

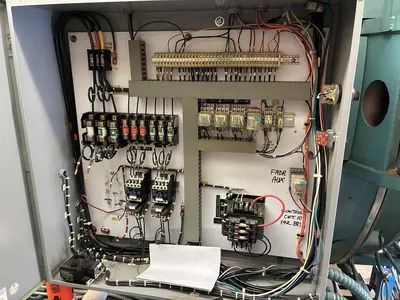

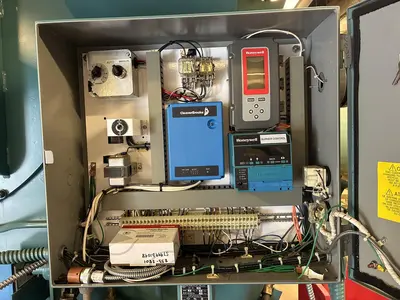

Complete control panel
Electrical distribution system

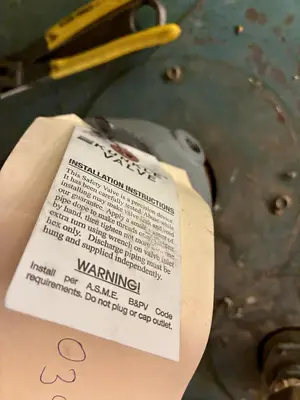

Safety valve systems
Fuel changeover linkage system

Control Components

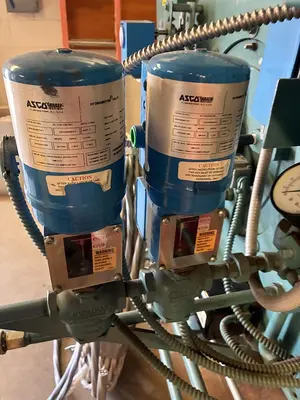

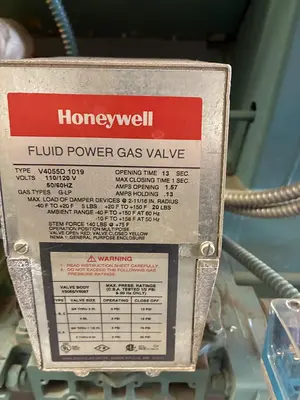

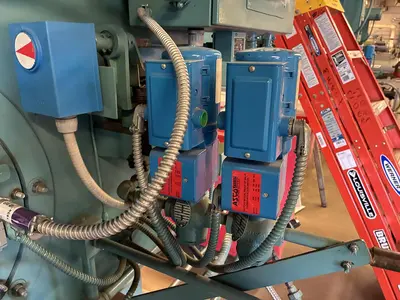

Gas Valve: Honeywell V4055D 1019 Fluid Power
110/120V, 50/60Hz operation
13 second opening time
1 second max closing time

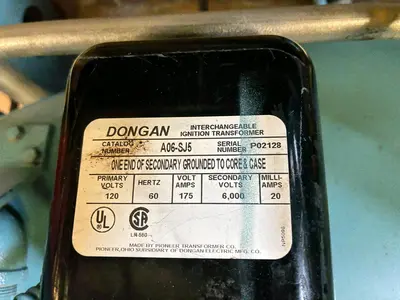

Ignition System: Dongan A06-SJ5 transformer
120V primary, 6,000V secondary
175 Amp primary, 20 mA secondary

Safety Controls: Integral Group 4A (Gas) and 2A (Oil)

Motor Specifications

Blower Motor: 20 HP

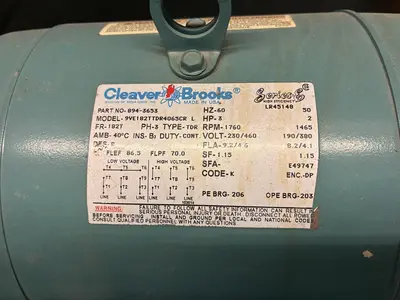

Air Compressor Motor: 3 HP (Cleaver Brooks 9VE182TTDR4065CR)
3 HP, 1760 RPM
230/460V, 3-phase
TEFC enclosure

Oil Pump Motor: 460V/3-phase/60Hz

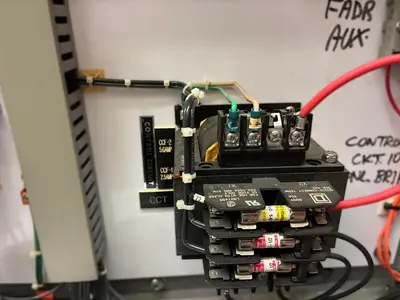

Control Circuit: 120V/1-phase/60Hz, 7 Amp

Electrical Requirements

Main Power Supply: 460V/3-phase/60Hz

Full Load Amps: 21.5

Minimum Circuit Ampacity: 50 Amp

Maximum Circuit Protection: 100 Amp

Control Voltage: 120V single phase

Wiring: Complete with panel schematic (March 2013)

Key Specifications

Boiler Type: CB Packaged Firetube

Operating Pressure: 15 PSI Steam

BTU Input: 14,288,000 BTU/hr

Fuel Options: Natural Gas and No. 2 Oil

Oil Type: Not heavier than No. 2

Voltage: 460/3/60 (as wired)

Recent Service: November 2021

Emission Equipment: Factory integrated

Ideal Applications

Light Industrial Steam
Commercial Buildings
Process Steam Applications
Heating Systems
Small Manufacturing
Institutional Facilities
Warehouse Heating
Any facility requiring 15 PSI steam

Benefits

Recent professional service (2021)
Dual fuel flexibility provides backup
Low pressure steam for safety
Emission reduction equipment included
UL Listed for safety compliance
Complete electrical package
Professional wiring diagram included
Proven Cleaver Brooks reliability
14.3 million BTU/hr capacity
Ready for installation

Additional Information

Condition: Recently Serviced (2021)

Included: Complete boiler package with controls

Documentation: Wiring diagram dated 3-13-13

Safety Equipment: Full complement installed

Fuel Switching: Manual linkage changeover

Installation: 460V connection required

Service Records: Available from 2021

Safety & Compliance

UL Listed assembly
ASME Code compliance
Emission reduction certified
National Board requirements met
Complete safety valve system
Professional service documentation
Warning labels intact
Operator manual reference required
