Overview

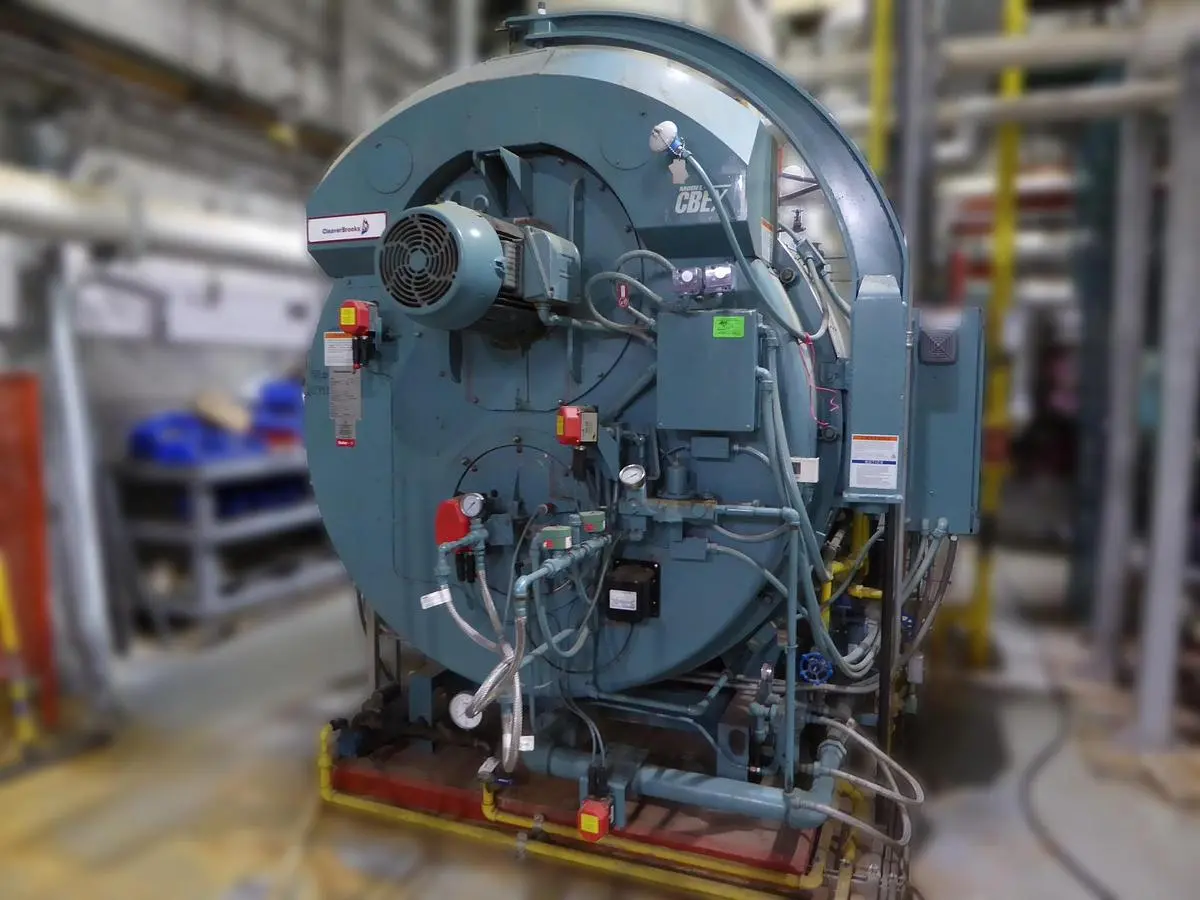

This 300 HP Cleaver Brooks CBLX E 200 300-150ST Packaged High Pressure Steam Boiler is designed for large-scale industrial steam applications requiring substantial steam generation capacity. This unit delivers exceptional steam production with proven Cleaver Brooks design and construction. Manufactured in 2017, this boiler provides reliable performance for facilities requiring high-capacity steam production with a maximum input of 12,247,000 BTU/hr.
Design and Performance

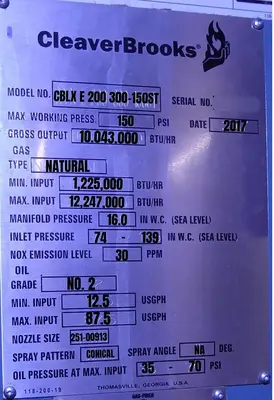

Horsepower: 300 HP
Model: CBLX E 200 300-150ST
Gross Output: 10,043,000 BTU/hr
Min Input Capacity: 1,225,000 BTU/hr
Max Input Capacity: 12,247,000 BTU/hr
Fuel Type: Natural Gas / Dual Fuel (Gas-Oil)
Max Working Pressure: 150 PSI Steam
Year Built: 2017
Manifold Pressure: 16.0 IN. W.C. (Sea Level)
Inlet Pressure: 74-139 IN. W.C. (Sea Level)
NOx Emission Level: 30 PPM
Oil Firing Specifications
Oil Grade: No. 2
Min. Input: 12.5 USGPH
Max. Input: 87.5 USGPH
Nozzle Size: 251-00913
Spray Pattern: Conical
Spray Angle: NA degrees
Oil Pressure at Max. Input: 35-70 PSI
Key Specifications
Condition: Used - Industrial Grade
Manufacturer: Cleaver Brooks (Thomasville, Georgia, USA)
Model: CBLX E 200 300-150ST
Boiler Type: Packaged High Pressure Steam Boiler
Pressure Rating: 150 PSI Steam
Dual Fuel Capability: Natural Gas and No. 2 Oil
Low NOx Design: 30 PPM emissions
Ideal Applications
Large Manufacturing Plants
Industrial Processing Facilities
Chemical Processing Operations
Food Processing Plants
Hospital and Healthcare Complexes
University Campus Heating Systems
Industrial Laundries
Pharmaceutical Manufacturing
Paper Mills
Textile Manufacturing
Benefits
High-capacity 300 HP rating for large industrial operations
Dual-fuel flexibility with natural gas and oil capabilities
Low NOx emissions (30 PPM) for environmental compliance
Wide turndown ratio (10:1) for efficient part-load operation
Recent 2017 manufacture date ensures modern controls and efficiency
Packaged design for simplified installation and maintenance
Heavy-duty construction for continuous 24/7 operation
Proven Cleaver Brooks reliability and performance
Compact footprint relative to steam output capacity
Additional Information
Condition: Used - Ready for Installation
Manufacturing Location: Thomasville, Georgia, USA
Year of Manufacture: 2017
BTU Output Range: 1.2 - 12.2 Million BTU/hr
Pressure Rating: 150 PSI Steam
Emissions Compliant: Low NOx design at 30 PPM
Control System: Modern digital controls (2017 vintage)
Safety Features: UL Listed components with emission reduction equipment
